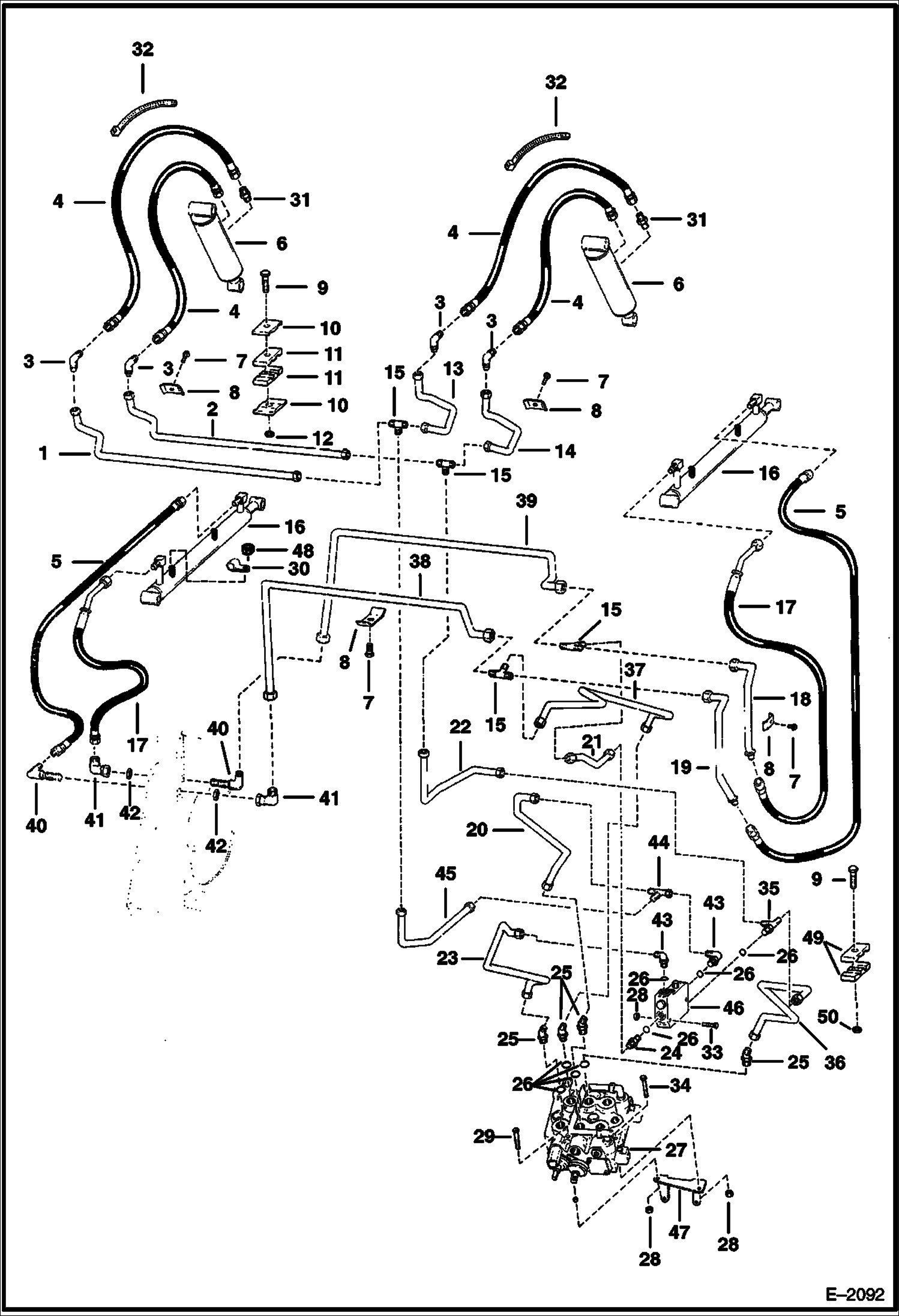

Запчасти Bobcat Articulated Loaders HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6586012

TUBE

2

6586011

TUBE

3

77F6

ELBOW

4

6538329

HOSE

5

6538241

HOSE

6

CYLINDER See Illustration TILT CYLINDER/ B13490 TILT

7

84G3724

BOLT

8

6502426

CLAMP

9

17C424

BOLT

10

6652521

PLATE Was 6647638 - A

11

6647637

CLAMP

12

61D4

NUT 5

13

6586013

TUBE

14

6586014

TUBE

15

6560136

TEE

16

CYLINDER See Illustration LIFT CYLINDER/ B11768 LIFT

17

6538242

HOSE

18

6586016

TUBE

19

6586015

TUBE

20

6539593

TUBE

21

6534640

TUBE

22

6534644

TUBE

23

6539592

TUBE

24

15K7

FITTING

25

18K7

FITTING

26

79K10

O RING 10

27

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20892

28

85D5

NUT 5

29

17C524

BOLT Left side

30

6536952

CLAMP

31

87F6

FITTING

32

6624289

STRAP, TIE

33

17C540

BOLT Was 7C-540 - D

34

17C536

BOLT Right hand

35

21K7

TEE

36

6539591

TUBE

37

6539590

TUBE

38

6586005

TUBE

39

6586006

TUBE

40

88F6

ELBOW

41

11K6

UNION

42

86F6

NUT

43

17K7

ELBOW

44

13K7

FITTING

45

6534643

TUBE

46

6656275

VALVE See Illustration BUCKET POSITION VALVE/ B13675 BUCKET POSITION

47

6539543

MOUNT

48

61D6

NUT 5

49

6662739

CLAMP

50

85D4

NUT 5
