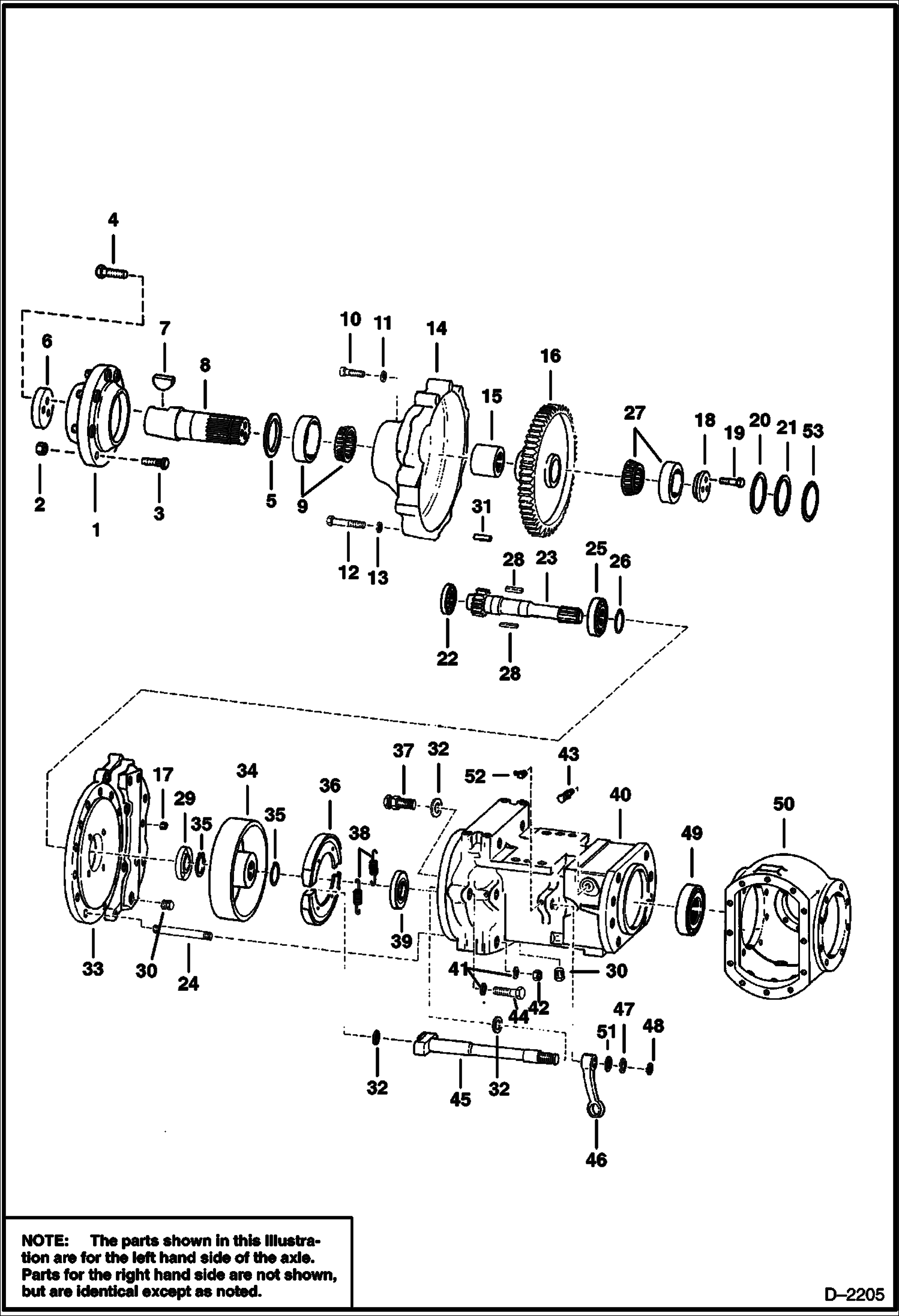

Запчасти Bobcat Articulated Loaders REAR AXLE DRIVE TRAIN

1

6587640

HUB W/Ref. 3

2

6564669

NUT, 10

3

6709170

BOLT, WHEEL Was 6559502 - A

4

6587621

BOLT

5

6660467

SEAL

6

6565947

WASHER

7

6J1664

KEY

8

6587207

SHAFT

9

6660463

BEARING

10

3GM1255

BOLT

11

8EM120

WASHER

12

1CM1280

BOLT

13

6EM120

WASHER

14

6539985

HOUSING

15

6587208

SPACER

16

GEAR Order Ref 23 NSS - Order Ref. 23

17

16F8

PLUG Was 11F000008B - A

18

6588350

WASHER See Service Letter dated 6 Dec 93 - Was 6587206 - C

18

6589043

WASHER See Service Letter dated 6 Dec 93

19

6587255

BOLT

20

6587214

SHIM 0.127 mm

21

6587215

SHIM 0.254 mm

22

6646239

BEARING

23

6722593

GEAR SET 23.9''- R.H. - Includes shaft & Ref. 16 Gear - Was 6722319 - A

23

6722594

GEAR SET 22.4''- L.H. - Includes shaft & Ref. 16 Gear - Was 6722320 - A

24

6646352

STUD

25

6646240

BEARING

26

5JM40

SNAPRING

27

6587254

BEARING

28

15JM1045

KEY

29

6646220

SEAL

30

6532674

PLUG SAE Threads

31

20JM1025

DOWEL PIN Dowel

32

6534365

SPACER Use if needed

33

6587204

COVER Right

33

COVER NLA - Left - Was 6587205 - A

34

6646335

BRAKE DRUM

35

5JM35

SNAPRING

36

6661813

BRAKE SHOE Replace in pairs only - Qty. one is one-half shoe.

37

6646336

PIN

38

SPRING NLA - Was 6646339 - A

39

6646219

SEAL

40

CASE NLA - Right - Was 6532668 - A

40

CASE NLA - Left - Was 6532667 - A

41

6EM140

WASHER

42

1DM14

NUT

43

6632601

BREATHER

44

1CM1480

BOLT

45

6646337

SHAFT

46

LEVER NLA - Was 6646338 - A

47

13EM1718

WASHER

48

5JM16

SNAPRING

49

6646237

BEARING Left

49

6646236

BEARING Right

50

6532669

CASE See Illustration REAR DIFFERENTIAL/ B20865

51

SHIM

52

11H15

GREASE FITTING

53

6589482

SHIM 0.08'' (2.03mm) Thick
