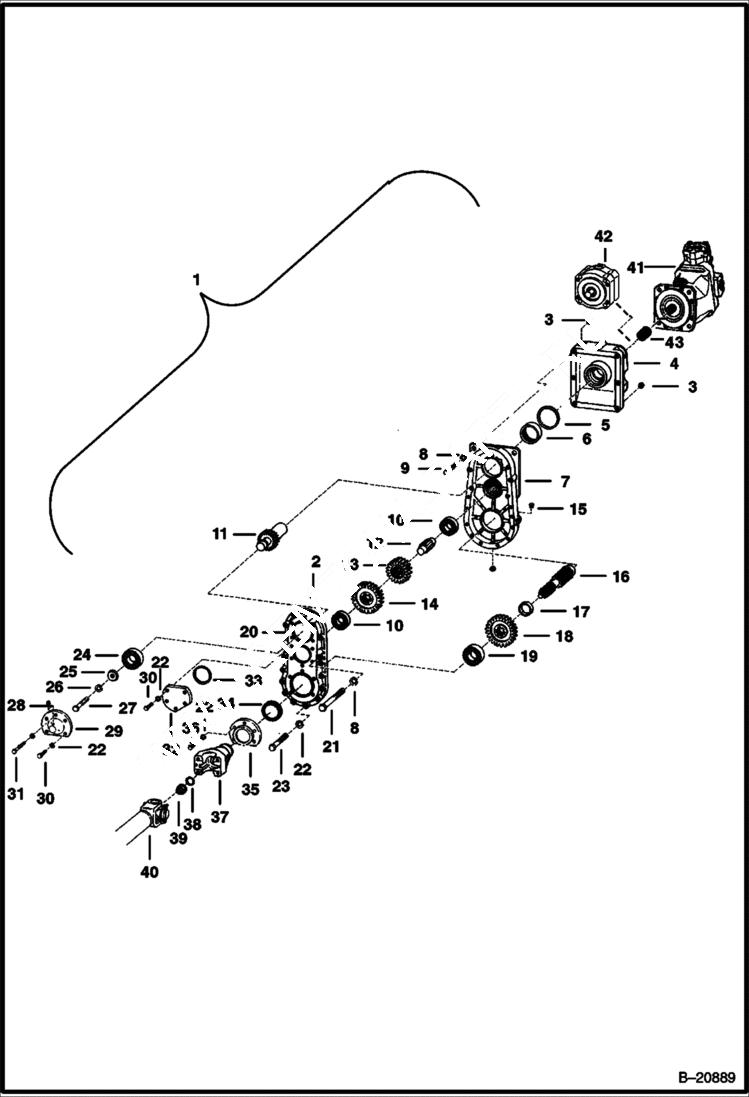

Запчасти Bobcat Articulated Loaders GEARBOX DRIVE TRAIN

1

GEARBOX NLA - Ref. 2-39 - Was 6539888 - A

2

20JM1025

DOWEL PIN

3

1DM14

NUT

4

6539818

COVER

5

6646354

SPACER

6

6646299

BEARING

7

6588123

CASE Was 6539889 - A

8

6EM140

WASHER W/Both Plugs

9

1CM1445

BOLT

10

6646233

BEARING

11

6532584

SHAFT

12

6646346

SHAFT

13

6646344

GEAR

14

6539321

GEAR

15

16F8

PLUG fill - SAE Threads - Was 11F000008B - A

15

6532674

PLUG drain - SAE Threads

16

6646290

SHAFT

17

6646295

SPACER

18

6539322

GEAR

19

6646234

BEARING

20

6539890

CASE

21

1CM14100

BOLT

22

6EM100

WASHER

23

1CM1040

BOLT

24

6646238

BEARING

25

6646348

SPACER

26

6EM120

WASHER

27

1CM1235

BOLT Was 4CM1235 - A

28

6632601

BREATHER

29

6532666

COVER

30

4CM1028

BOLT

31

1CM1060

BOLT

32

6646343

COVER

33

6646261

SHIM

34

6658641

SEAL

35

6646342

COVER

36

1CM1030

BOLT Was 4CM1030 - A

37

6660420

FLANGE

38

6646225

O-RING

39

6646301

NUT

40

See Illustration DRIVE SHAFT/ B13783 NLA - Was 6660421 - A

41

MOTOR See Illustration HYDROSTATIC MOTOR/ B14430

42

BRAKE See Illustration BRAKE/ B20803

43

6646297

COUPLER
