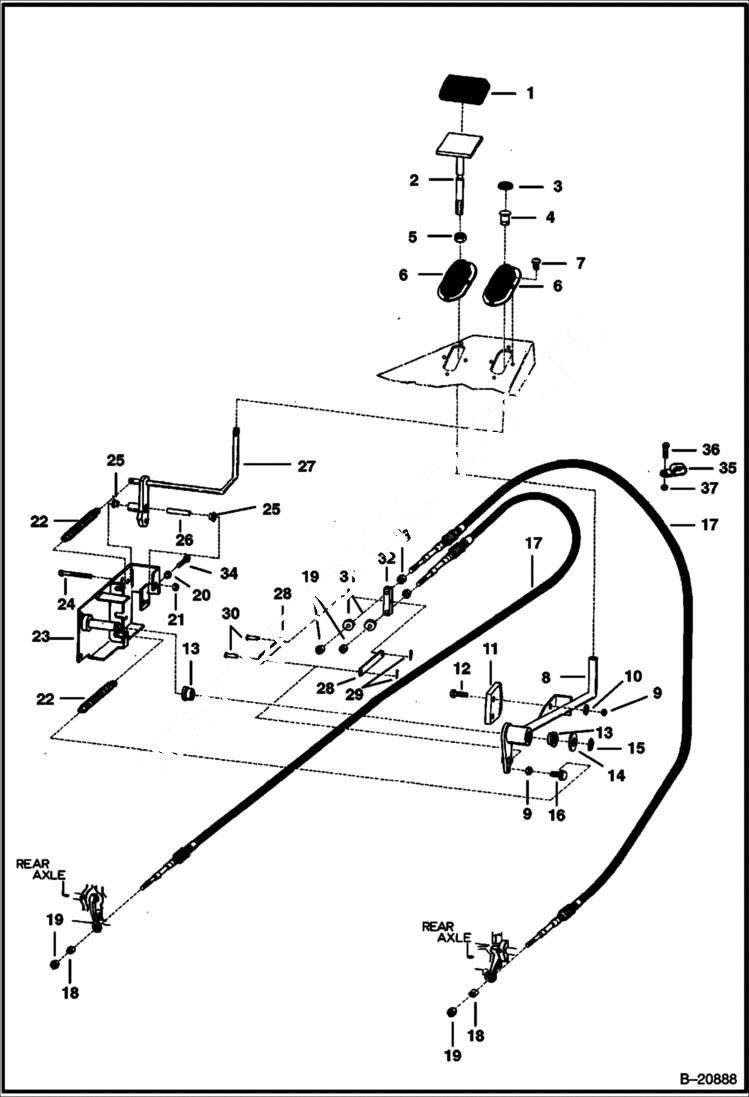

Запчасти Bobcat Articulated Loaders BRAKE LINKAGE DRIVE TRAIN

1

PAD NLA - Was 1618250B - A

2

6583767

PEDAL

3

6647642

CAP

4

6583780

KNOB

5

61D12

NUT

6

BOOT NLA - Was 6584699 - A

7

25G510

BOLT

8

6583762

LEVER

9

83D6

NUT 5

10

25E18

WASHER

11

6583835

GEAR

12

17C624

BOLT 5

13

6647645

BUSHING

14

25E31

WASHER

15

710776

SNAP RING

16

84G3728

BOLT

17

6660447

CABLE

18

6584684

END cable

19

8D5

NUT

20

7D6

NUT

21

61D5

NUT

22

6583782

SPRING

23

6583754

PLATE

24

17C556

BOLT

25

6647646

BUSHING

26

6583728

TUBE

27

6583759

LEVER brake release

28

6531092

LINK

29

1F312

PIN

30

663350

PIN

31

6531093

END cable

32

6583834

BAR

33

86D5

NUT

34

84G3716

SCREW 5

35

31H38

CLAMP Was 31H000034B - B

36

17C620

BOLT

37

61D6

NUT 5
