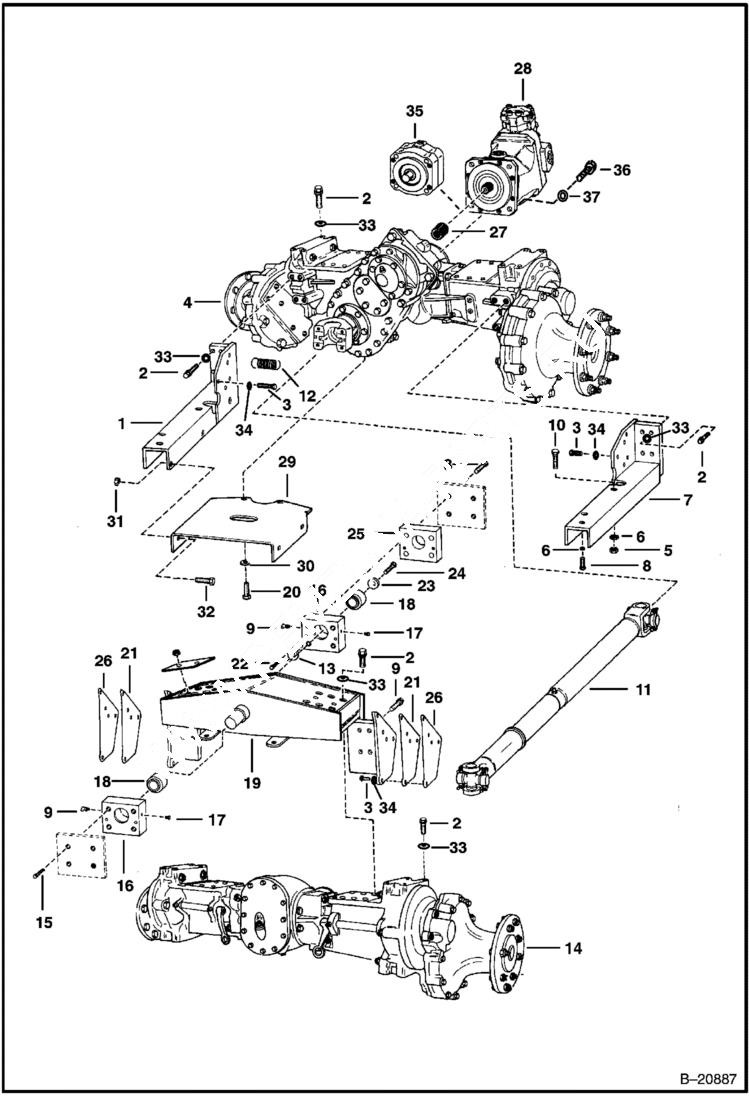

Запчасти Bobcat Articulated Loaders DRIVE SYSTEM DRIVE TRAIN

1

6587212

SUPPORT L.H.

2

6586125

SCREW

3

7CM1440

BOLT

4

AXLE ASSY. See Illustration FRONT AXLE/ B20900 See Illustration FRONT DIFFERENTIAL/ B26307 NLA - front - Order components - Was 6587252 - A

5

85D12

NUT, 5

6

27E12

WASHER

7

6587213

SUPPORT R.H.

8

17C1240

BOLT

9

12H15

FITTING, GREASE 5

10

35C1240

BOLT

11

See Illustration DRIVE SHAFT/ B13783 NLA - Was 6660421 - A

12

6539553

SPRING

13

6534309

WASHER 2.25'' O.D. x 1.75'' I.D. x .10 Thick

14

6587257

AXLE ASSY. See Illustration REAR AXLE/ D2205 See Illustration REAR DIFFERENTIAL/ B20865 rear

15

17C1228

BOLT

16

6585795

BLOCK

17

40K2

PLUG

18

6641335

BEARING self-aligning

19

6539870

MOUNT Also Order Ref. 13 & 23

20

1CM1430

BOLT

21

6533266

SHIM 0.02

22

17C632

BOLT 5

23

6534308

WASHER 2'' O.D. x .94'' I.D. x .25'' Thick Chamfered - Must be installed with chamfer toward bolt head

24

18C1424

BOLT

25

6585794

BLOCK

26

6583739

SHIM

27

6646297

COUPLER

28

6660767

MOTOR See Illustration HYDROSTATIC MOTOR/ B14430

29

6531831

AIRSHIELD

30

25E22

WASHER

31

85D8

NUT, 5

32

35C820

BOLT

33

4E10

WASHER

34

6EM140

WASHER

35

BRAKE See Illustration BRAKE/ B20803

36

3GM12110

SCREW 12mm metric threads

36

73G872

BOLT 1/2'' SAE threads

37

15EM120

WASHER

37

6557929

WASHER
