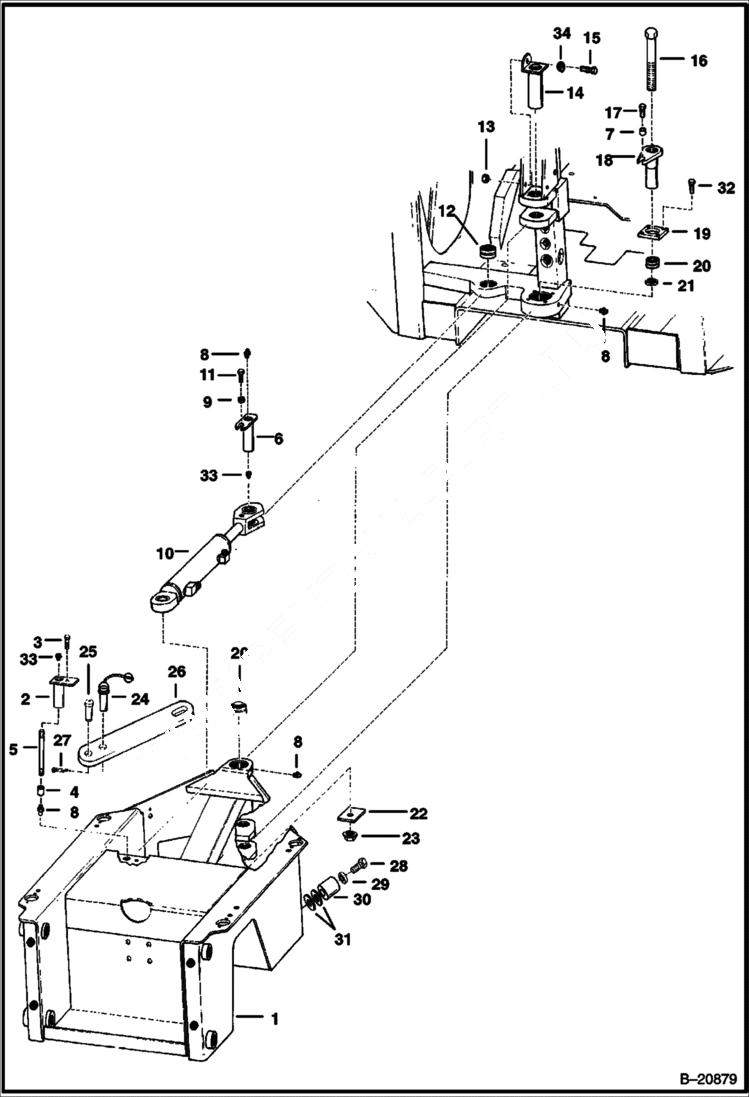

Запчасти Bobcat Articulated Loaders REAR FRAME & ARTICULATION UNIT MAIN FRAME

1

6539997

REAR FRAME

2

6587642

PIN

3

84G3716

SCREW 5

4

75F1

COUPLING

5

5K148

TUBE

6

6586330

PIN

7

6586327

TUBE

8

10H25

FITTING, GREASE 5

9

6586326

TUBE

10

CYLINDER See Illustration STEERING CYLINDER/ B11770

11

45C812

BOLT

12

6645263

BUSHING

13

85D6

NUT, 5

14

6585670

PIN .406'' x .50'' slot for Ref. 15 (17C620 bolt)

14

6588480

PIN .813 dia hole for Ref. 15 (35C620 bolt)

15

17C620

BOLT Use W/Ref. 14 (6585670 pin)

15

35C620

BOLT 5 Use W/Ref. 14 (6588480 pin)

16

17C12104

BOLT

17

45C816

BOLT

18

6586328

PIN

19

6583703

BRACKET

20

6651637

BEARING self-aligning

21

6585668

SPACER

22

6585669

WASHER

23

83D12

NUT

24

6658632

PIN

25

2F16240

PIN

26

6583867

LINK

27

1F524

PIN

28

17C632

BOLT 5

29

25E17

WASHER 5

30

6585808

STOP

31

616789

WASHER

32

17C616

BOLT 5

33

40K2

PLUG

34

6588489

SPACER Use W/Ref. 14 (6588480 pin) & Ref. 15 (35C620 bolt)
