Запчасти Bobcat Articulated Loaders CLEAN AIR KIT ACCESSORIES & OPTIONS

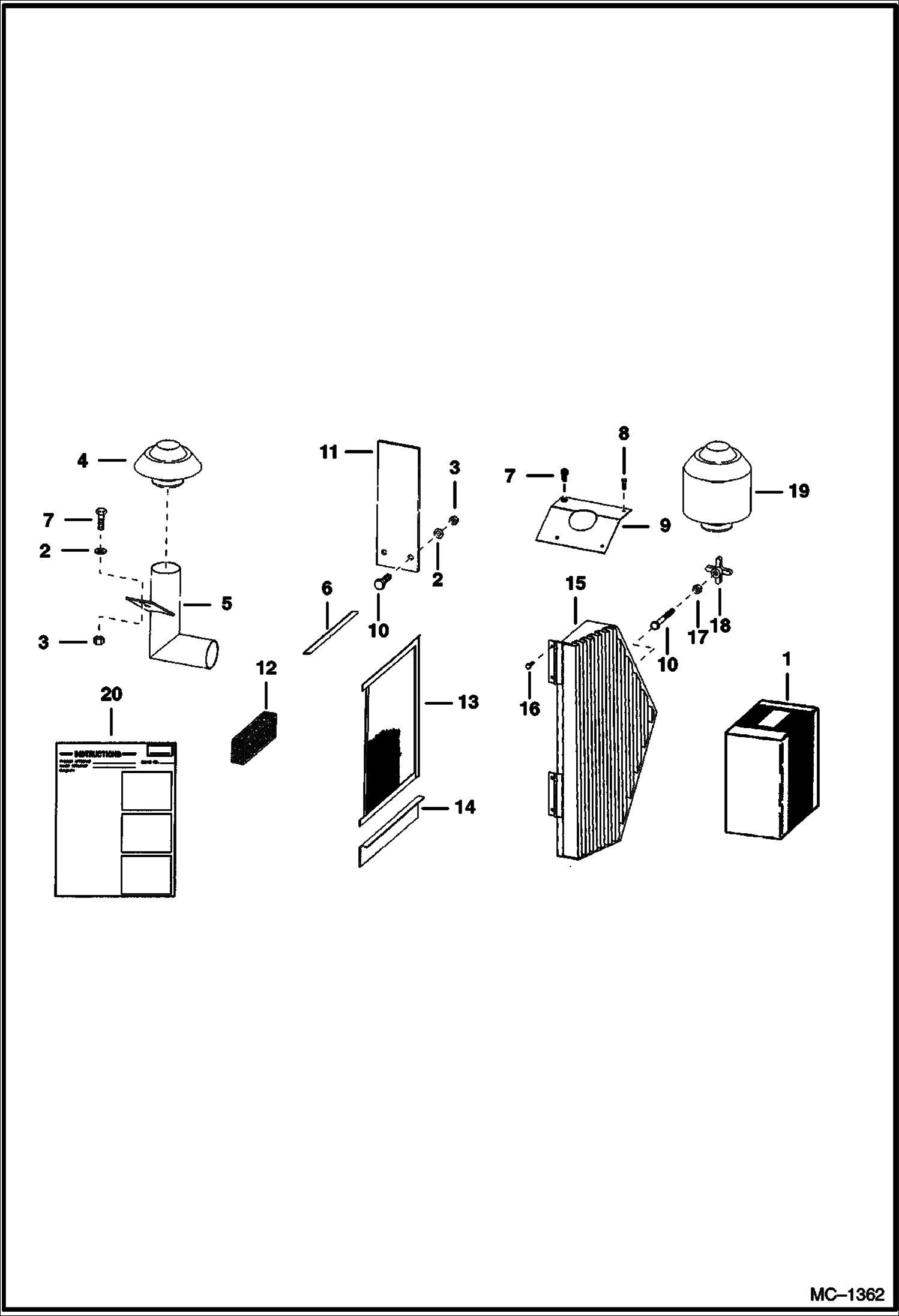

Схема запчастей Bobcat Articulated Loaders - CLEAN AIR KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6537151

KIT Ref. 2-18, & 20

2

25E17

WASHER 5

3

85D6

NUT, 5

4

6656020

RAIN CAP

5

6536621

INTAKE PIPE

6

6513152

SEAL bulk - sold per foot

7

17C616

BOLT 5

8

84G1908

BOLT

9

6537064

COVER

10

17C620

BOLT

11

6531726

SHIELD

12

6537227

FOAM STRIP

13

6536364

SCREEN

14

6536354

ANGLE

15

SIDE SCREEN NLA - Was 6535890 - A

16

84G3712

BOLT 5

17

7D6

NUT

18

6647668

KNOB

19

6689694

AIR CLEANER Not in Kit - Use in place of Ref. 4 if additional air cleaning is required - Was 6656242 - A

20

6720403

INSTRUCTIONS

Выбрано товаров: 20
