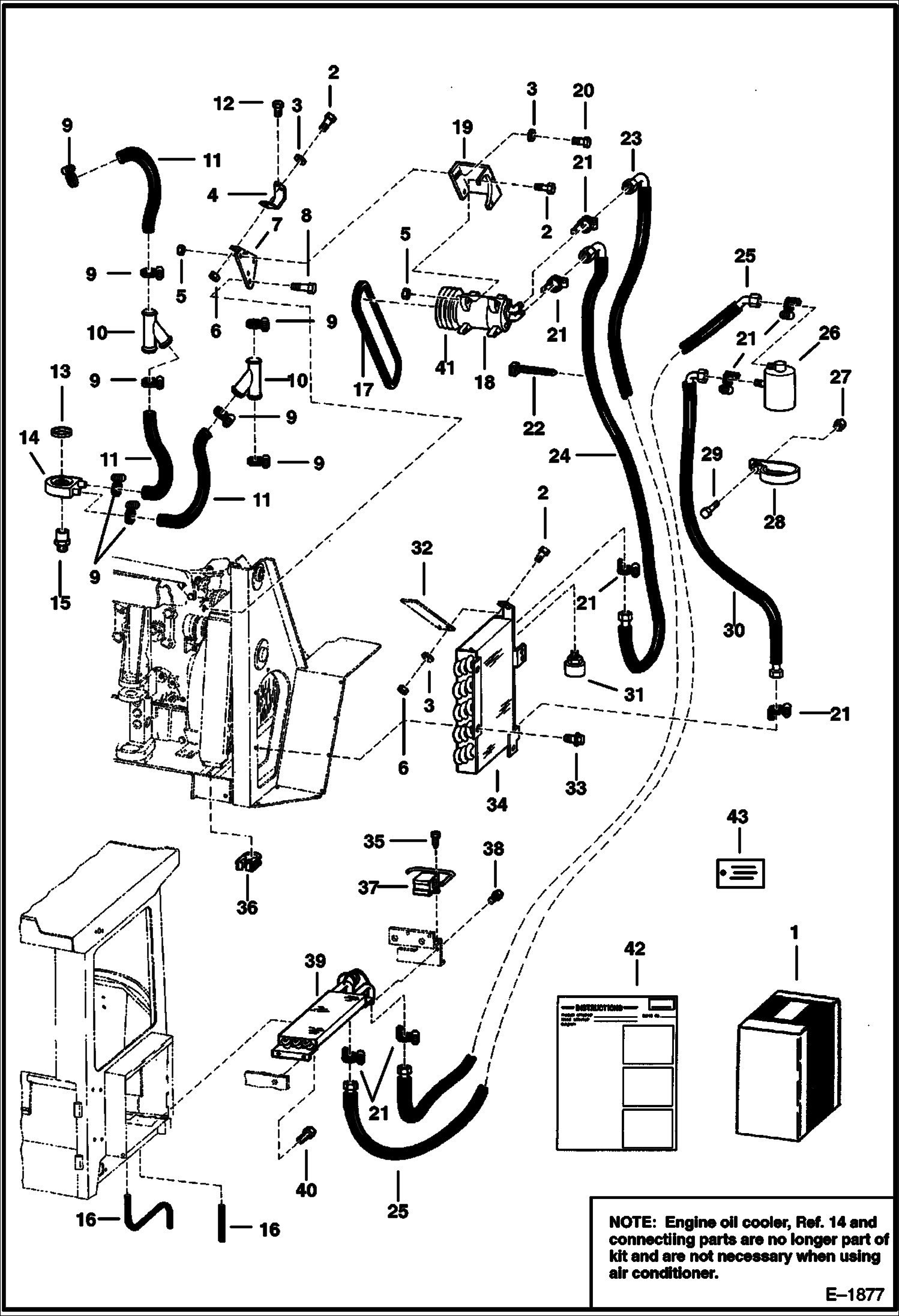

Запчасти Bobcat Articulated Loaders AIR CONDITIONER ACCESSORIES & OPTIONS

1

KIT NLA - air conditioner - Ref. 2-8, 12, 17-31 & 33 - 42 - Order Components - Was Sales

2

17C620

BOLT

3

25E17

WASHER 5

4

BRACE NLA - Was 6586165 - A

5

57D6

NUT 5

6

61D6

NUT 5

7

6586164

MOUNT

8

18C640

BOLT

9

1566240

CLAMP Not in Kit

10

6599150

CONNECTOR Not in Kit

11

889269

HOSE BULK/FT bulk - Sold Per Foot - Not in Kit - Was 6564565 - A

12

18C516

BOLT

13

962263

GASKET Not in Kit

14

6645850

OIL COOLER See Note - Not in Kit - Was 2342092B - A

15

6646196

ADAPTER Not in Kit - Was 2342091B - A

16

6586251

HOSE Was 6531725 - A

17

6649718

BELT

18

6625522

COMPRESSOR

19

6586163

MOUNT

20

35C620

BOLT 5

21

6630683

CLAMP

22

6610510

TIE

23

6531562

HOSE

24

6531560

HOSE

25

6531559

HOSE

26

2525312

RECEIVER

27

61D5

NUT

28

6630809

CLAMP

29

17C524

BOLT

30

6531556

HOSE

31

SWITCH NLA - Was 6649717 - A

32

6531726

SHIELD not in kit - standard on loader

33

84G3712

BOLT 5

34

6531554

CONDENSER Was 6531565 - A

35

59G806

BOLT Was 59G-808 - A

36

6513152

SEAL Was 6531555 - A

37

6649327

SWITCH

38

45G1012

SCREW Was 45G000812B - A

39

6649715

EVAPORATOR

39

6658361

VALVE Expansion

40

84G3112

BOLT 5

41

6632536

CLUTCH compressor

42

6570765

INSTRUCTIONS

43

6664023

TAG warning - Substance
