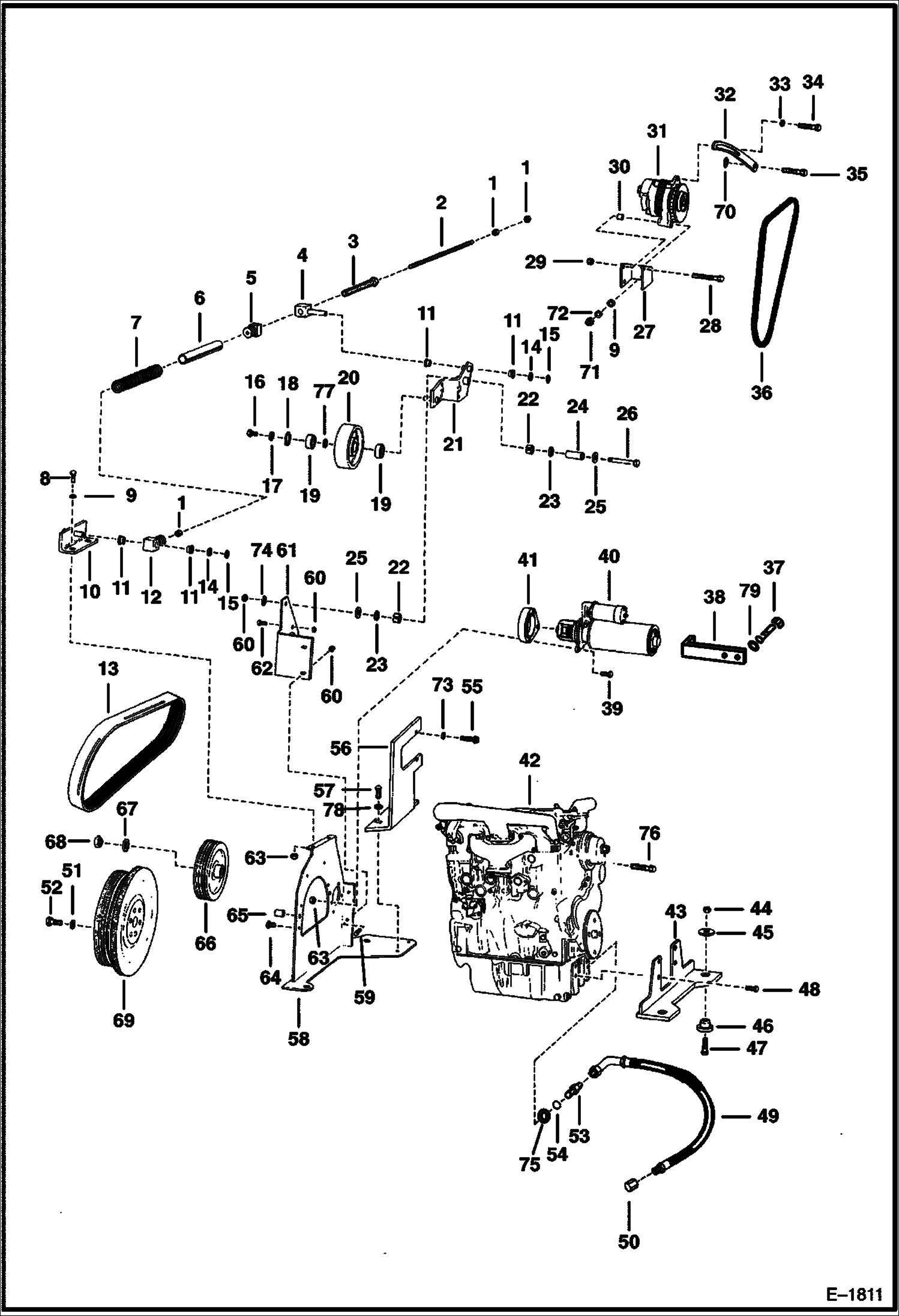

Запчасти Bobcat Articulated Loaders ENGINE & ATTACHING PARTS POWER UNIT

1

61D4

NUT 5

2

6568828

ROD

3

6568826

BOLT hollow

4

6568830

PIN

5

6568425

ADAPTER

6

TUBE NSS

7

6569498

SPRING ASSY W/Ref. 6

8

17C620

BOLT

9

25E17

WASHER 5

10

6585850

BRACKET

11

1313116

BUSHING

12

6568424

ADAPTER

13

6569809

BELT, DRIVE

14

25E21

WASHER 5

15

710779

RING

16

17C608

BOLT

17

27E6

WASHER 5

18

941388

RING

19

6661229

BEARING - D

20

6587035

PULLEY Was 6567112 - C

21

6587037

BRACKET Was 6585813 - C

22

6630241

BUSHING

23

1990599

WIPER

24

6569091

PIN

25

6569600

WASHER

26

17C868

BOLT Was 17C000864B - B

27

6585816

BRACKET

28

17C660

BOLT

29

85D6

NUT, 5

30

6585826

SPACER

31

ALTERNATOR See Illustration ALTERNATOR/ B12420

32

1781587

STRAP

33

27E5

WASHER

34

17C510

BOLT

35

18C636

BOLT Was 1CM00870B - B

36

6646841

BELT

37

18C716

BOLT Was 36C-716 - A

38

6585838

BRACKET Use only with Delco 1998376 starter

39

17C640

BOLT 5 Was 17C000636B

40

STARTER See Illustration STARTER/ B18467

41

6562480

SPACER

42

ENGINE See Illustration PERKINS DIESEL ENGINE/ B20804

43

6539908

MOUNT Was 6585842 - A

44

85D10

NUT, 5

45

6514557

WASHER

46

6513606

MOUNT neoprene - Was 6514897 - A

47

17C1048

BOLT

48

1C1020

BOLT Was 8C1020 - A

49

6585839

HOSE

50

36K6

CAP

51

6557929

WASHER

52

18C824

BOLT

53

15K6

ADAPTER W/Ref. 54

54

79K8

O RING 10

55

93G628

SCREW Was 93G000624B - B

56

6585848

MOUNT

57

35C820

BOLT Was 35C000816B - A

58

6585845

MOUNT

59

35C824

BOLT

60

83D8

NUT 5

61

6585849

MOUNT

62

17C832

BOLT

63

61D6

NUT 5

64

18C616

BOLT 5

65

742510

PIN

66

6567024

PULLEY

67

6576033

WASHER Was 6558465 - A

68

92D12

NUT Was 86D000012B - A

69

6576512

FLYWHEEL W/Ring Gear

69

6515771

RING GEAR

70

25E16

WSHR

71

62D6

NUT 5

72

4E6

WASHER

73

6557831

WASHER

74

27E8

WASHER 10

75

6571723

WASHER

76

18C620

BOLT

77

6701159

SHIM

78

6506477

WASHER

79

25E19

WASHER
