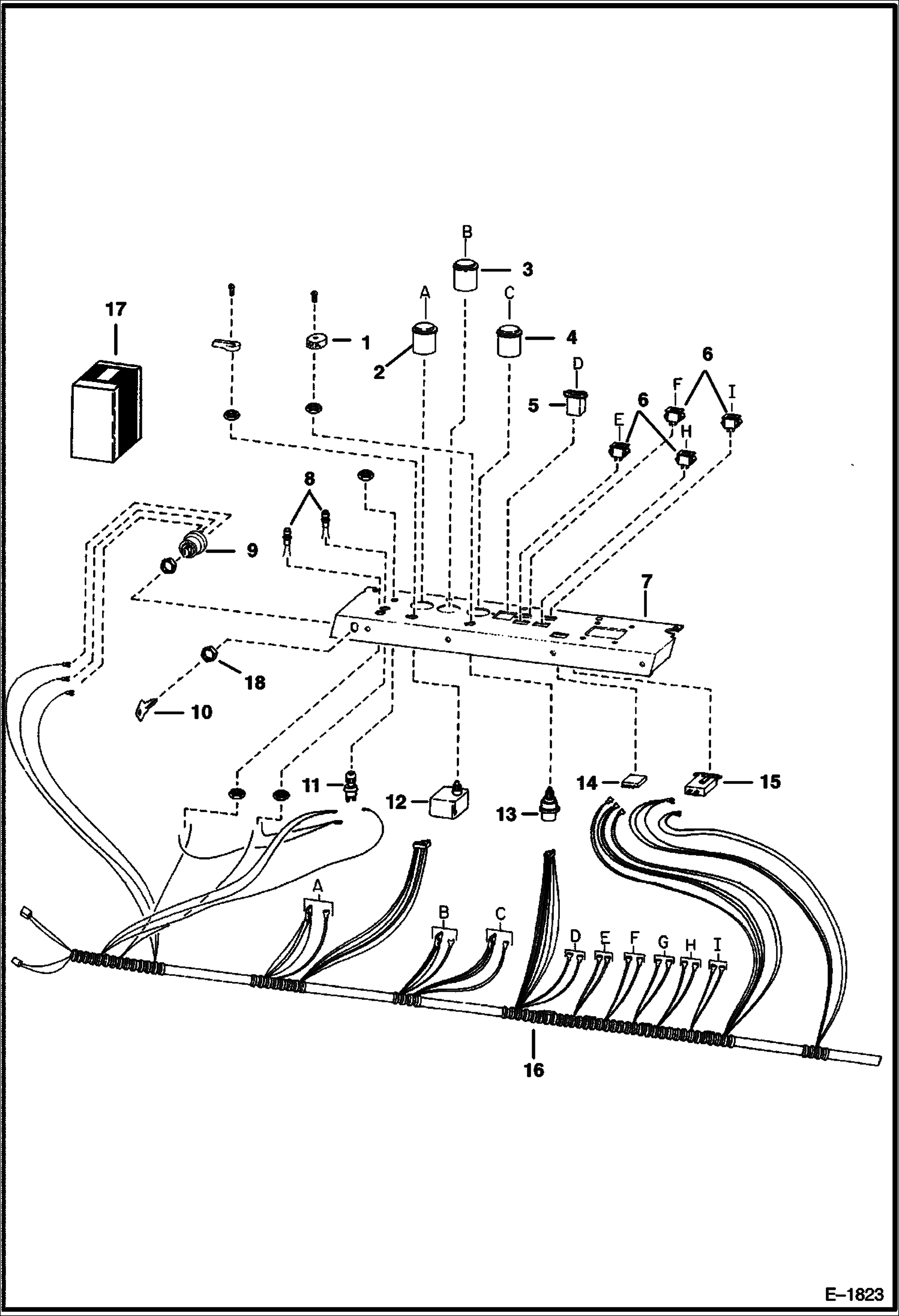

Запчасти Bobcat Articulated Loaders INSTRUMENT PANEL (S/N 11166 & Below) ELECTRICAL SYSTEM

1

6599781

KNOB light switch

2

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

2

6669665

FUEL GUAGE W/O clamp

3

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

3

6669664

VOLTMETER W/O clamp

4

6631649

GAUGE See BTI259 engine temp.

4

GAUGE See BTI259 NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

4

6669663

GAUGE See BTI259 eng temp - W/O clamp

5

6664886

HOURMETER Was 6631657 - A

6

6646779

LAMP

7

6583689

PANEL

8

6646374

LAMP turn signal

9

SWITCH See BTI89 NLA - Order Ref. 17 - Was 6519592 - A

9

6665606

SWITCH ignition

10

6512809

KEY ignition - for 6519592

10

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6632973

SWITCH start aid - Was 600259B - B

12

6644959

SWITCH flasher

13

6512808

SWITCH

14

6598904

BUZZER timer

15

6644960

BUZZER

16

6583644

HARNESS panel

17

6724282

SWITCH KIT Ref. 9 & 10

18

6598721

NUT For 6519592

18

6674202

NUT For 6665606
