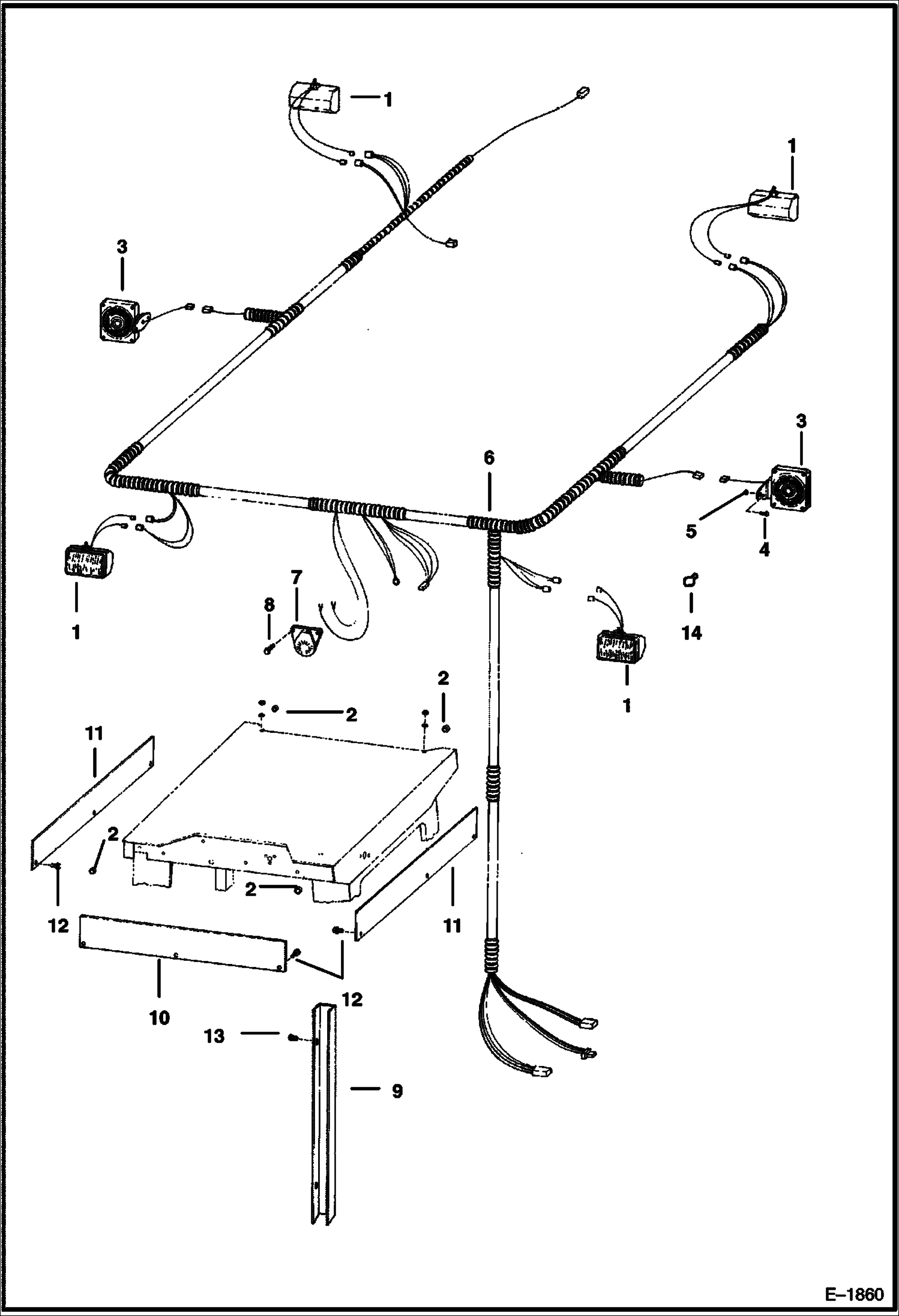

Запчасти Bobcat Articulated Loaders ROPS ELECTRICAL ELECTRICAL SYSTEM

1

6644961

LAMP

2

6557493

GROMMET

3

LAMP NLA - turn signal - Was 6647435 - A

4

25G410

CAPSCREW

5

61D4

NUT 5

6

6585597

HARNESS cab

7

6512876

ALARM back-up

8

25G512

SCREW

9

6584651

CHANNEL

10

6532535

COVER harness - Was 6584656 - A

11

6584657

COVER harness - 2 used on Palm cab - 1 used on Melroe cab

11

6532534

COVER harness - used on Melroe cab- R.H. side of cab only

12

84G3712

BOLT 5

13

25G510

BOLT

14

965834

HEAD LITE
