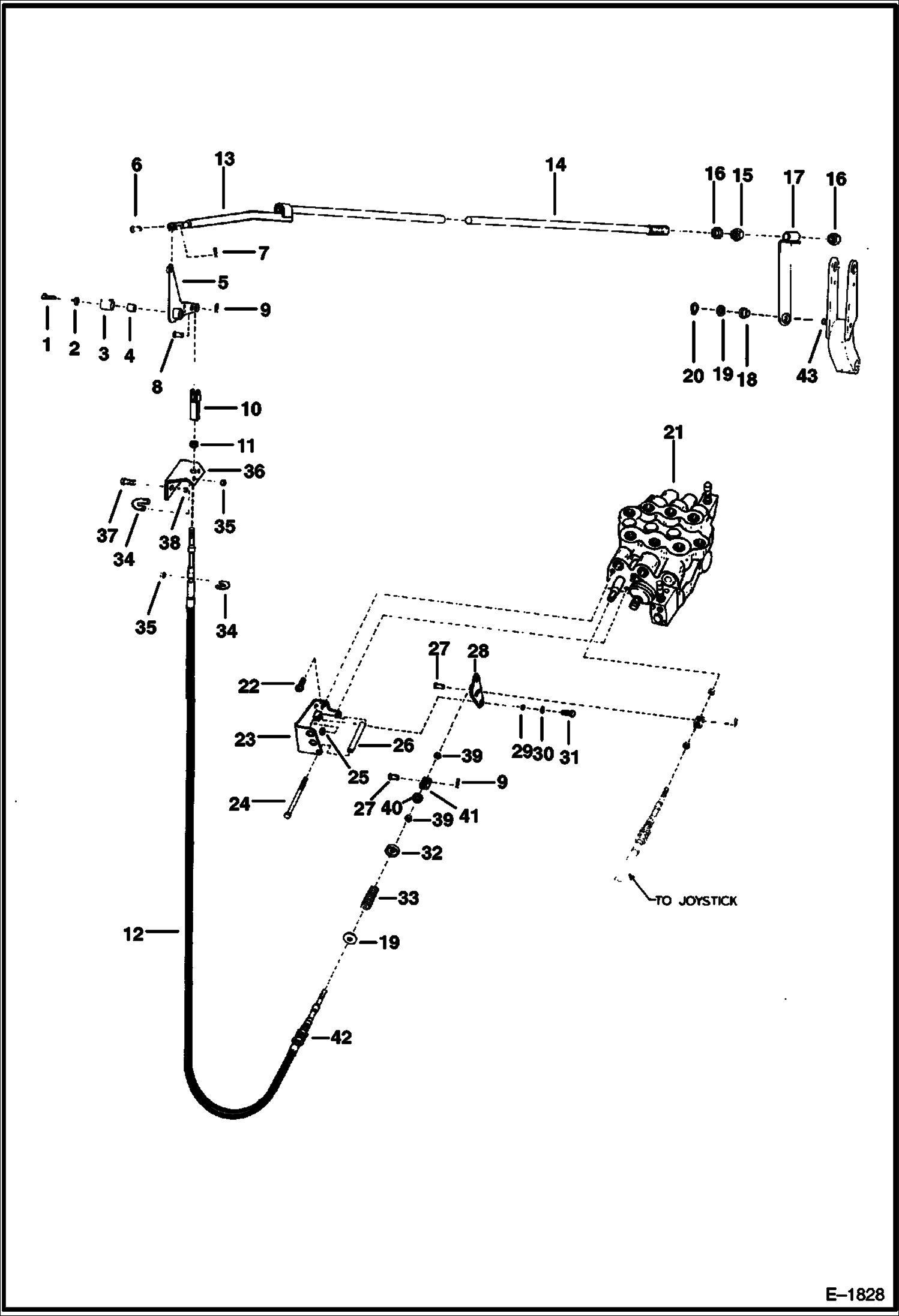

Запчасти Bobcat Articulated Loaders ANTI-ROLLBACK MECHANISM HYDRAULIC SYSTEM

1

17C828

BOLT

2

25E22

WASHER

3

6646907

BUSHING

4

6583805

SPACER

5

6531813

BELLCRANK Was 6583693 - A

6

4F6106

PIN

7

1F312

PIN

8

2F4051

PIN

9

1F208

PIN

10

2J4200

CLEVIS

11

8D4

NUT

12

6649896

CABLE Was 6646569 - A

13

6531812

TUBE Was 6586055 - A

14

6586056

ROD

15

6646636

COLLAR locking

16

61D12

NUT

17

6583694

LINK

18

6646634

BEARING

19

25E25

WASHER 10

20

1315207

RET RING

21

6591465

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E1847

22

6588163

SCREW Was 69G000412B - A

23

6583692

BRACKET

24

17C4104

BOLT

25

61D4

NUT 5

26

6584675

SPACER

27

227395

CLEVIS PIN Was 277395B - D

28

6586061

LEVER

29

6584653

SPACER

30

25E13

WASHER 5

31

17C412

BOLT 5

32

6584676

SPACER

33

SPRING NLA - Was 6531780 - A

34

6646895

CLAMP W/Ref. 35

35

86D5

NUT

36

6531440

BRACKET

37

17C612

BOLT 5

38

85D6

NUT, 5

39

8D5

NUT

40

WASHER NLA - Was 6511638 - A

41

6650087

CLEVIS

42

8D12

NUT

43

6586159

STUD
