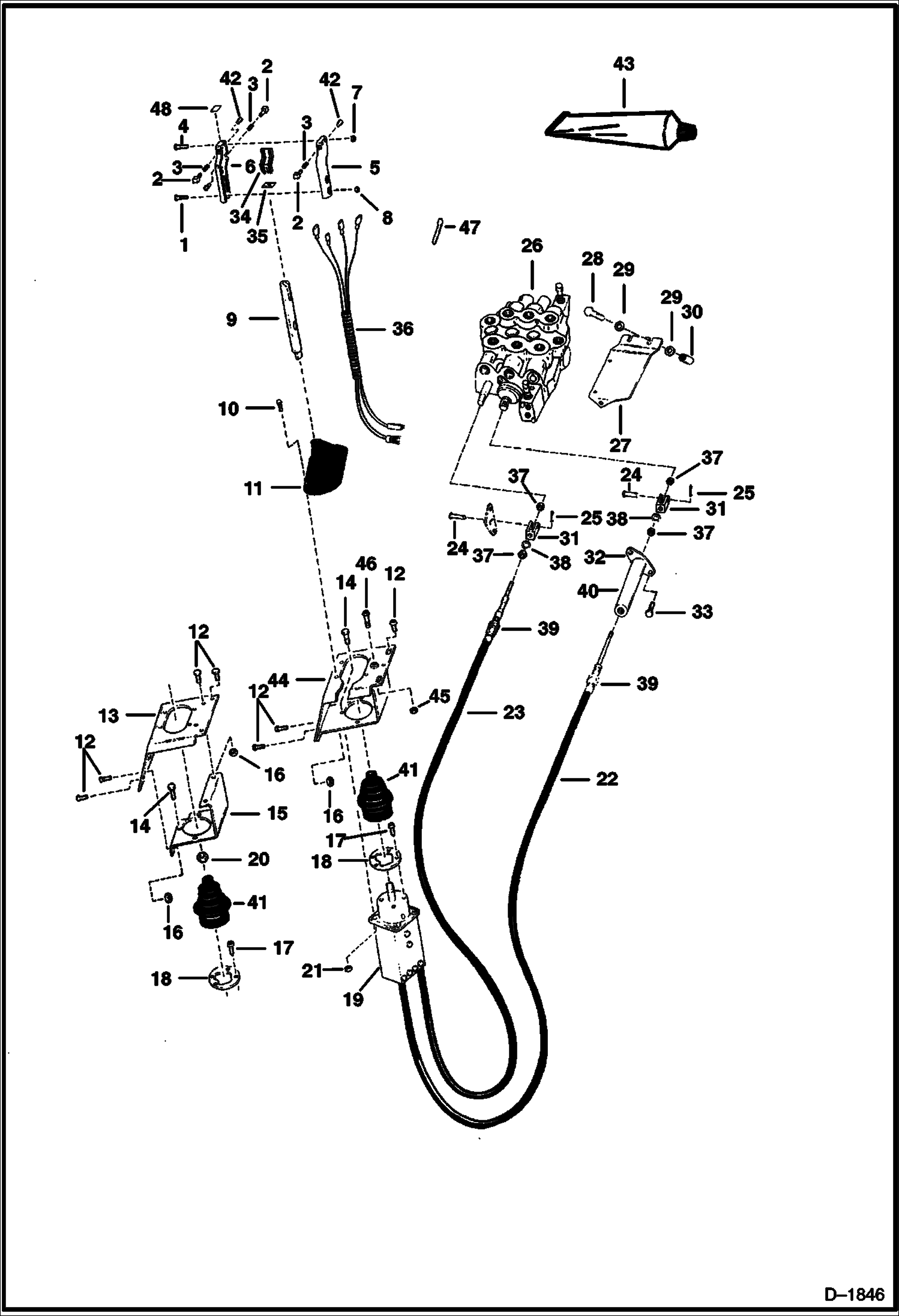

Запчасти Bobcat Articulated Loaders HYDRAULIC LIFT & TILT CONTROL LINKAGE (Joystick Controls) HYDRAULIC SYSTEM

1

85G820

SCREW

2

6700356

SWITCH See BTI248 Was 6569446 - A

3

6571977

SPRING

4

85G620

SCREW

5

6569445

HANDLE joystick

6

6569444

HANDLE joystick

7

12D6

NUT 10

8

12D8

NUT

9

6585870

TUBE

10

24G1012

BOLT

11

6532127

BOOT W/Metal plate - Was 6563540 - A

12

25G510

BOLT

13

COVER NLA - Order Ref. 44 - Was 6583690 - A

14

17C416

BOLT

15

BRACKET NLA - Order Ref. 44 - Was 6531740 - A

16

61D5

NUT

17

18G1010

SCREW

18

6583749

PLATE

19

JOYSTICK See Illustration AIR DUCT/ B13417 See BTI257 NLA - WAS 6651882 - A

19

JOYSTICK See BTI257 NLA - W/Ref. 9, 16, 46 - Order (7D16 Nut qty. 1), (17C628 Bolt qty. 1), (6532998 Bushing qty. 1), (6532999 Spacer qty. 3), (6537301 Rod qty. 1), (6537354 Cover qty. 1), (6532997 Bl

20

61D8

NUT 5

21

85D4

NUT 5 Was 61D000004B - B

22

6649897

CABLE W/Ref. 24, 25, 31, 32, & 39 - Was 6646570 - A

23

6649898

CABLE Ref. 24, 25, 31, & 31 - Was 6646567 - A

24

227395

CLEVIS PIN Was 277395B - D

25

1F208

PIN

26

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E1847

27

6585998

MOUNT

28

1CM1060

BOLT

29

25E18

WASHER

30

6564798

SPACER Was 6564978 - D

31

6650087

CLEVIS Ref. 22

32

6650088

SLEEVE Ref. 22

33

6588163

SCREW Was 69G000412B - A

34

SWITCH See BTI324 NLA - Was 6569451 - A

35

6572087

INSULATOR insulator

36

6531873

HARNESS Was 6531082 - D

37

8D5

NUT

38

WASHER NLA - Was 6511638 - A

39

8D12

NUT

40

6661387

TUBE

41

BOOT NLA - Was 6652530 - A

42

6700354

RETAINER See BTI248 Push switch

43

6654216

ADHESIVE See BTI248 3 gram tube

44

6535299

COVER

45

85D6

NUT, 5

46

25G620

SCREW

47

6624289

STRAP, TIE

48

6577506

PLATE
