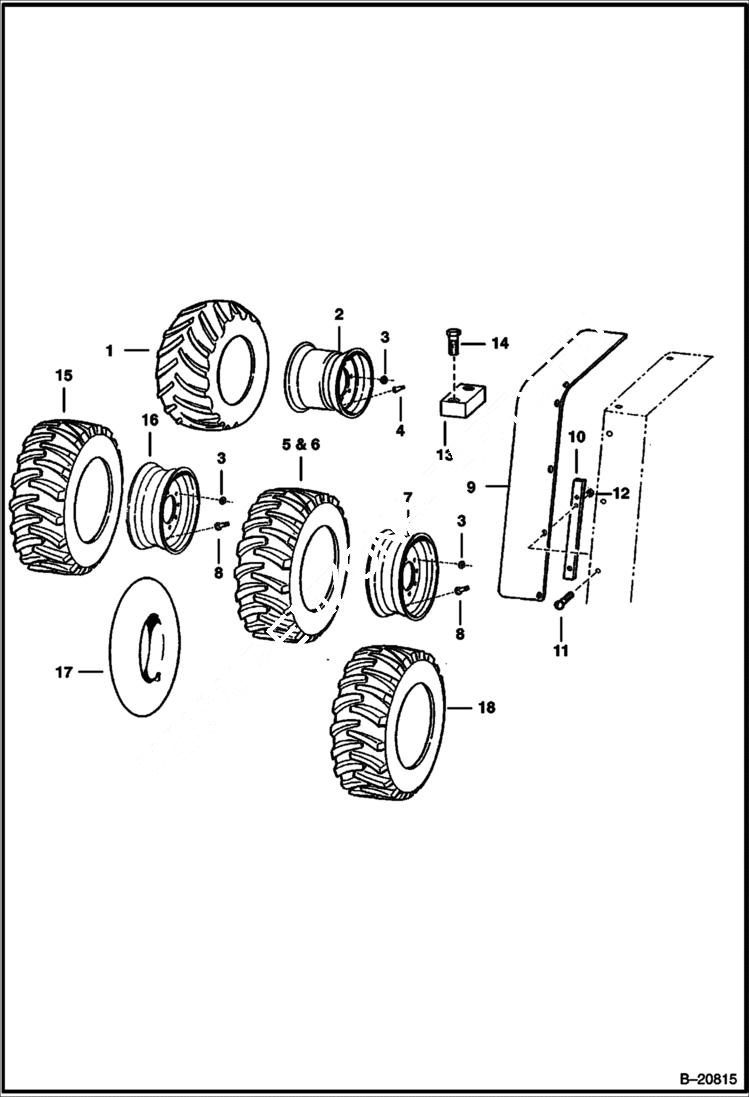

Запчасти Bobcat Articulated Loaders TIRES & RIMS ACCESSORIES & OPTIONS

1

TIRE NLA - nylon, 31 x 15.5, 8 Ply Rating Terra Grip - Use Ref. 13 & 14 Purchase locally - Was 6513971 - A

2

6583808

RIM See BTI197ldr - Use W/Ref. 1

3

6646245

NUT metric

3

6564669

NUT, 10 SAE

4

6591447

VALVE STEM, TIRE Use W/Ref. 2

5

TIRE - 14X17.5 - 10 PLY NLA - nylon, 1400 x 17.5 - Firestone - Was 6647879 - A

5

TIRE NLA - 14 x 17.5, 10 ply - Goodyear Was 6651476 - A

6

TIRE NLA - 12 X 16.5, 6 ply rating - Use Ref. 13 & 14 - Goodyear - Order 6729897 - Was 6519249 - A

6

6670145

TIRE NLA - 12 x 16.5, 6 Ply - Firestone - Was 6543468 - A

6

TIRE NLA - 12 x 16.5, 8 Ply - Goodyear - Order 6729897 - Was 6590832 - A

7

6583815

RIM See BTI197ldr - Use W/Ref. 5

7

6585805

RIM See BTI197ldr Use W/Ref. 6 & 18

8

1614765

VALVE STEM, TIRE Use W/Ref. 6 & 15

9

MUD GUARD NLA - Order 6532176 & 6532177

9

EXTENSION NLA - R.H. Fender - Was 6532176 - A

9

EXTENSION NLA - L.H. Fender - Was 6532177 - A

10

6583813

STRAP

11

25G620

SCREW

12

57D6

NUT 5

13

STOP NLA - lift arm (3 in. x 2 in. x 1.25 in.) - Use W/ 31 x 15.5 & 12 x 16.5 tires - Order (2) 6535703 & (4) 17C000632B - Was 6583786 - A

13

6535703

STOP lift arm (3 in. x 2 in. x 1.50 in.) - Use W/31 x 15.5 & 12 x 16.5 tires

14

17C632

BOLT 5 Was 17C000628B - D

15

6569160

TIRE 16.1 x 38 Flotation

16

6531637

RIM See BTI197ldr - Use W/Ref. 15

17

6569632

TUBE For 14 x 17.5 Tire

18

6652817

TIRE 12.00 X 16.5, 10 Ply - Bobcat brand
