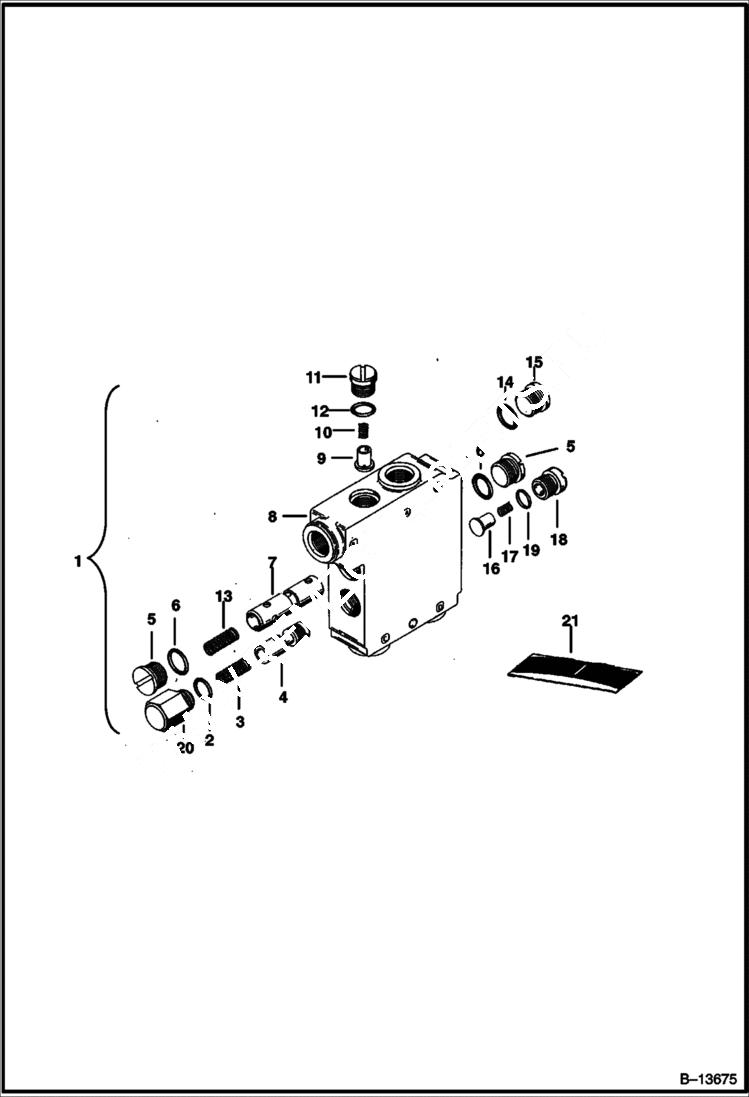

Запчасти Bobcat Articulated Loaders BUCKET POSITION VALVE ACCESSORIES & OPTIONS

1

6656275

VALVE Ref. 2-20

2

O-RING NSS

3

6648294

SPRING

4

SPOOL NSS

5

6676543

PLUG Was 6647780 - A

5

79K10

O RING 10

6

O-RING NSS

7

SPOOL NSS

8

BODY NSS

9

6647783

LOAD CHECK

10

6647785

SPRING

11

6647784

PLUG

12

79K10

O RING 10

13

6660775

SPRING

14

O-RING NSS

15

6660776

PLUG

16

6647776

PLUNGER

17

1550482

SPRING

18

6647781

PLUG

19

O-RING NSS

20

6647779

PLUG

21

6647786

SEAL KIT
