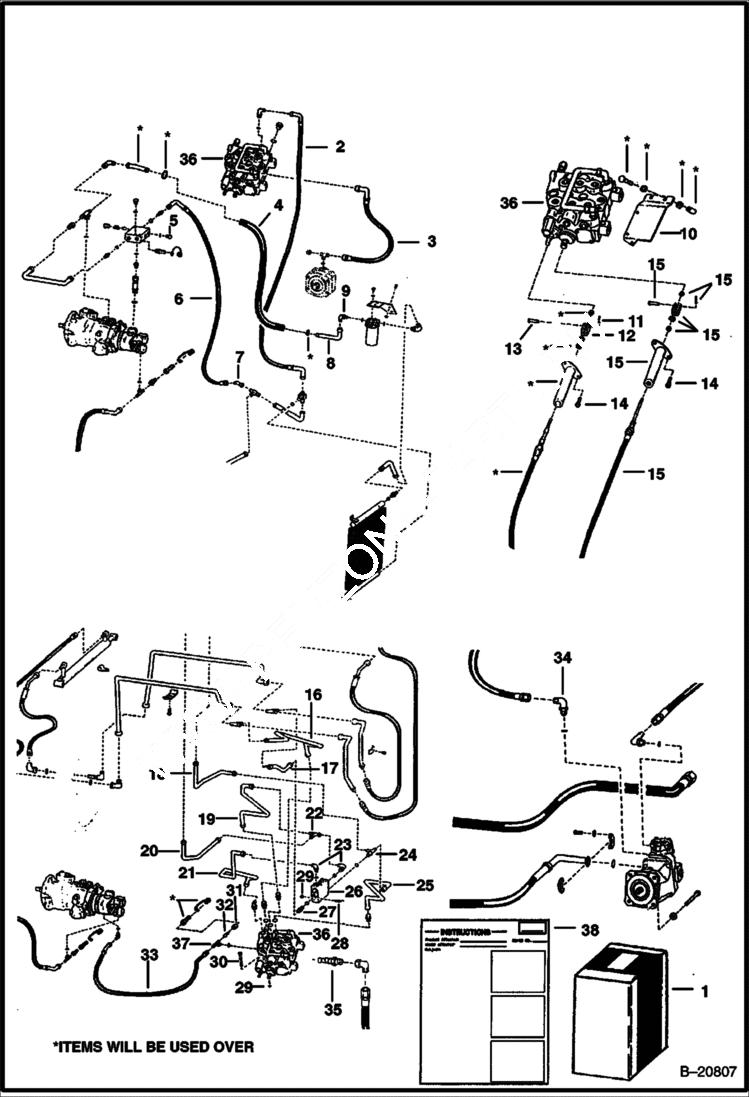

Запчасти Bobcat Articulated Loaders BUCKET POSITION VALVE KIT ACCESSORIES & OPTIONS

1

KIT NLA - Order Components Ref. 2 - 38 - Was 6538802 - A

2

6535274

HOSE

3

6585443

HOSE

4

6503078

HOSE

5

24K8

PLUG

6

6535275

HOSE

7

12K8

ELBOW

8

6535278

TUBE

9

17K10

FITTING

10

6535253

MOUNT Was 6586392 - A

11

6659332

COTTER PIN

12

CLEVIS NLA - Was 6659330 - A

13

6659331

PIN

14

6588163

SCREW Was 69G000412B - A

15

6654363

CABLE

16

6534641

TUBE

17

6534640

TUBE

18

6534644

TUBE

19

6534646

TUBE

20

6534643

TUBE

21

6534642

TUBE

22

13K7

FITTING

23

17K7

ELBOW

24

21K7

TEE

25

6534645

TUBE

26

6656275

VALVE See Illustration BUCKET POSITION VALVE/ B13675

27

15K7

FITTING

28

17C540

BOLT

29

85D5

NUT 5

30

17C528

BOLT

31

80F8

ADAPTER

32

9K8

ADAPTER

33

6535277

HOSE

34

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

35

6534917

ADAPTER

36

CONTROL VALVE See BTI295 NLA - W/Fittings - See 2410 Fiche for parts breakdown - Was 6588772 - A

37

19K8

TEE

38

6720679

INSTRUCTIONS
