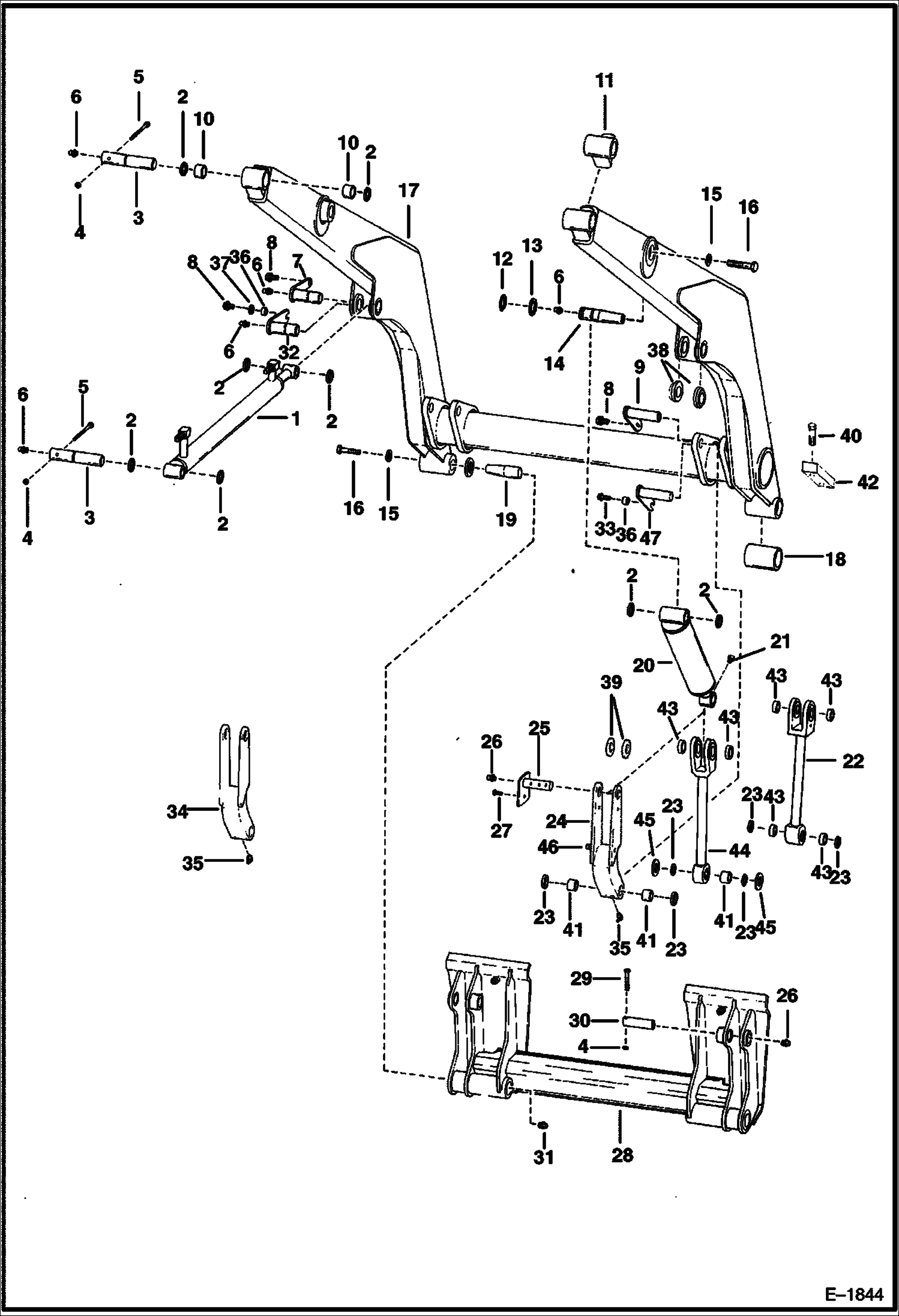

Запчасти Bobcat Articulated Loaders LIFT ARMS & BOB-TACH MAIN FRAME

1

CYLINDER See Illustration LIFT CYLINDER/ B11768 LIFT

2

6631067

SEAL, OIL

3

6585784

PIN

4

85D6

NUT, 5

5

17C648

BOLT 5

6

10H25

FITTING, GREASE 5

7

6585782

PIN

8

84G3712

BOLT 5

9

6585788

PIN

9

6534937

PIN

10

6560334

BUSHING press in

11

6583751

PIVOT weld on - W/Ref. 10

12

6538285

LOCK RING Was 1305943B - A

13

6584872

WASHER

14

6565864

PIN

15

6576033

WASHER Was 6558465 - A

16

17C1228

BOLT

17

LIFT ARMS NLA - Order 1-6586336 , 1-6534933 , 1-6534581 , 4-6534935 , 4-225855B , 2-6534606 , - Also Ref. 32, 33, 36, 37, & 47 - Was 6585971 - A

17

LIFT ARMS NLA - ORDER 6586336 - Also Ref. 32, 33, 36, 37, & 47 - Was 6534934 - A

17

6586336

LIFT ARMS

18

BUSHING NLA - weld-on - Was 6561423 - A

19

6559018

PIN, PIVOT BOB-TACH

20

CYLINDER See Illustration TILT CYLINDER/ B13490 See Illustration TILT CYLINDER/ B11772 TILT

21

41K2

PLUG

22

LINK NLA - W/Ref. 23 & 43 - Order Ref. 44 & QTY. 2 of Ref. 45 - Was 6538815 - A

23

6654117

SEAL, OIL 51 mm (2'') OD

23

225855

SEAL, OIL 10 38 mm (1.5'') OD

24

LINK NLA - R.H. - Order 1-6534933 , 1-6534606 , 2-6534935 , & 4-225855B - Was 6586085 - A

24

6534933

LINK R.H. - Less Ref. 41

25

6585786

PIN

26

10H35

FITTING, GREASE 10

27

25G612

SCREW

28

BOB-TACH See Illustration BOB-TACH/ TS1125 See Illustration BOB-TACH/ D1862

29

17C640

BOLT 5

30

6585785

PIN

31

743332

FITTING, GREASE 5

32

6586335

PIN

33

45C812

BOLT

34

LINK NLA - L.H. - Order 1-6534581 , 1-6534606 , 2-6534935 & 4-225855B - Was 6586091 - A

34

6534581

LINK L.H. - Less Ref. 41

35

12H25

FITTING

36

6586326

TUBE

37

6563914

WASHER

38

6565909

BUSHING Weld On

39

6534606

SPACERS Use when adding new links on S/N 11585 & Below machine

40

17C632

BOLT 5

41

6534935

BUSHING

42

STOP NLA - Lift Arm - 3'' x 2'' x 1.25'' Use W/ 31 x 15.5'' and 12 x 16.5 tires - Order 2-6535703 & 4-17C-632 - Was 6583786 - A

42

6535703

STOP Lift Arm - 3'' x 2'' x 1.50'' - Used With 31 x 15.5 and 12 x 16.5 Tires-Was 6583786 - A

43

6538814

BUSHING Not used in old style links

44

6539922

LINK W/Ref. 23, 41, 43 - Also order qty. 2 of Ref. 45

45

6539744

WASHER

46

6586159

STUD Weld-on

47

6586333

PIN
