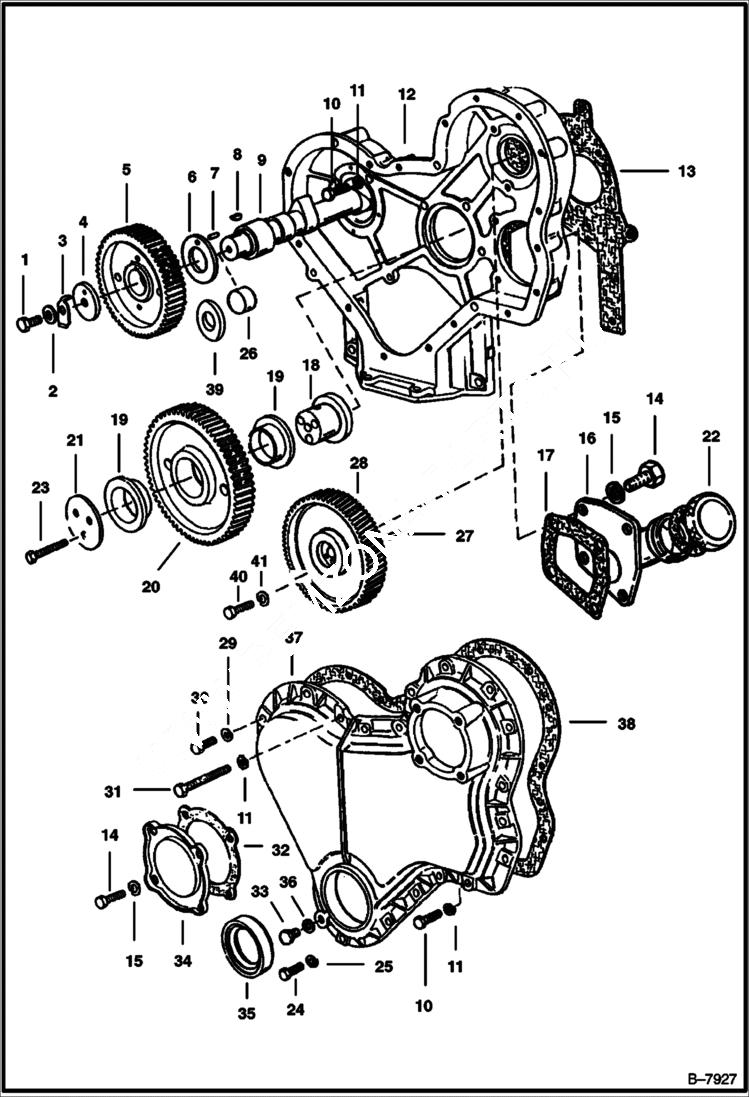

Запчасти Bobcat Articulated Loaders TIMING GEARS POWER UNIT

1

18C818

BOLT

2

3725482

SHIM

3

3725481

T WASHER

4

3725480

WASHER

5

6649434

GEAR camshaft

6

3725483

WASHER

7

873222

PIN Was 3725484B - A

8

6J807

KEY, WOODRUFF

9

CAMSHAFT NLA - Order 6677395, 6672633 6668263 & 29CM01245B - Was 6649433 - A

10

6649432

BOLT

11

4E5

WASHER

12

6513099

HOUSING

13

6668034

GASKET Was 6649431 - A

14

18C510

BOLT

15

3490221

WASHER

16

6511209

FILLER

17

6668021

GASKET Was 3490369B - A

18

7013155

BEARING PLATE Was 3490179 - A

19

3490181

BSHG

20

3725486

GEAR idler - W/Ref. 19

21

PLATE NLA - retainer - Order 7021632 Plate and (3) of 6668287 Screw - Was 6668264 - A

22

3725424

CAP Oil filler

23

6649435

BOLT

24

17C408

BOLT

25

3490238

WASHER

26

6510642

BUSHING cam

27

3737800

DOWEL PIN

28

3737966

GEAR pump

29

4E6

WASHER

30

18C616

BOLT 5

31

18C540

BOLT

32

6660651

GASKET Was 3725503B - A

32

6660651

GASKET

33

3739127

PIN engine timing

34

PLATE NLA - Order 6660650 & 6660651 - Was 3725502B - A

34

6660650

PLATE

35

6924348

FRONT OIL SEAL Was 3738154 - D

36

3490223

WASHER flat

37

6674361

COVER Was 6662836 - A

38

6667832

GASKET Was 372550 - A

39

6649438

WASHER thrust - Use only when new cylinder block, old camshaft, gear & timing case gasket are used

40

18C512

BOLT

41

4E5

WASHER
