Запчасти Bobcat Articulated Loaders ALTERNATOR Prestolite 8AR2013L ELECTRICAL SYSTEM

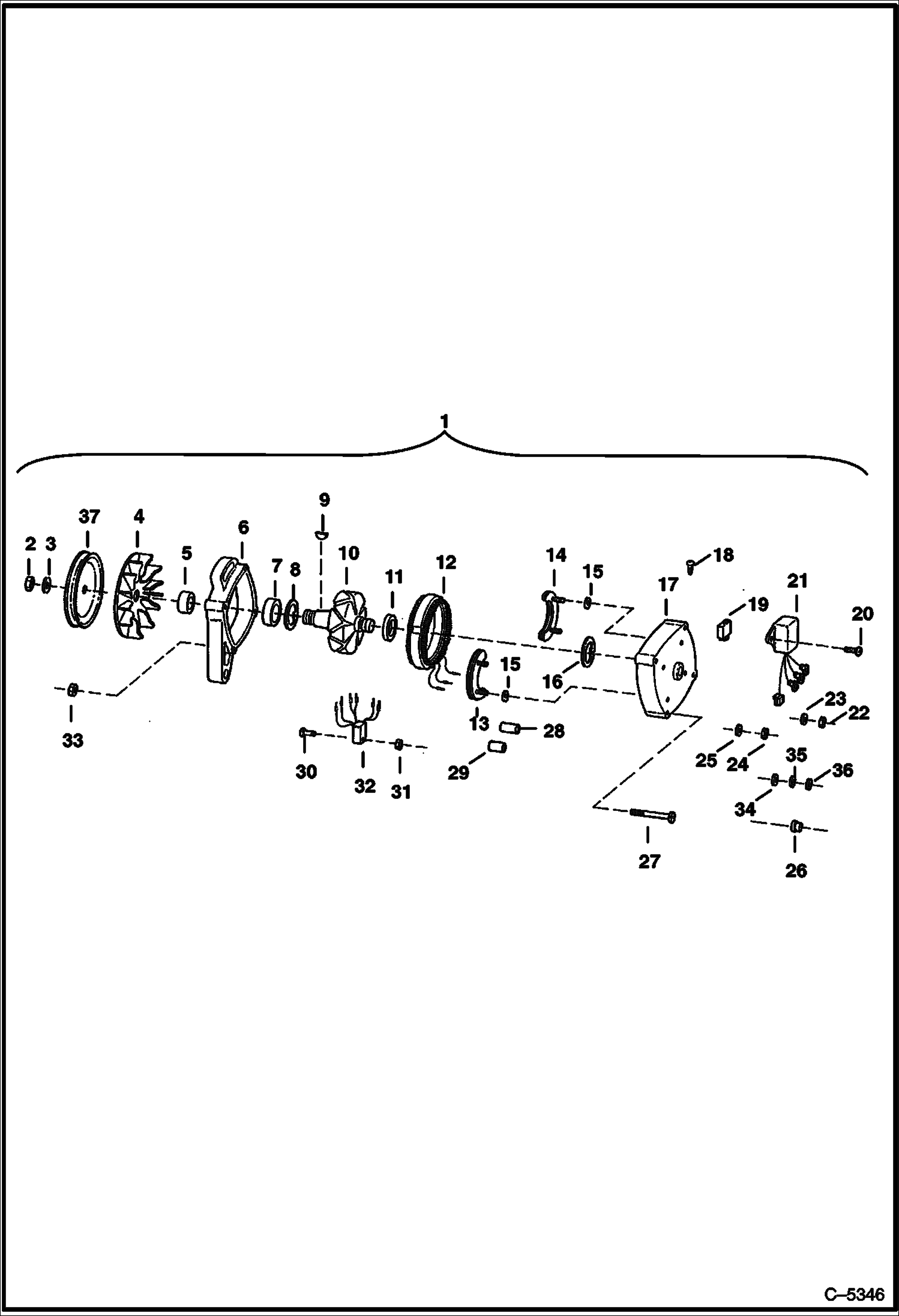

Схема запчастей Bobcat Articulated Loaders - ALTERNATOR Prestolite 8AR2013L ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

ALTERNATOR See BTI308 NLA - W/REF. 2-37 - ORDER 6667344REM - WAS 6667344 - A

2

6635526

NUT

3

6635557

WASHER

4

6668831

FAN

5

6668832

SPACER

6

6668833

HOUSING Front

7

6668834

BEARING Front

8

6634084

RETAINER

9

6J405

KEY

10

6668835

ROTOR

11

1991038

BEARING Rear

12

6668836

STATOR Assembly

13

6668837

DIODE Negative

14

6668838

DIODE Positive

15

896990

WASHER #10 x 3/4

16

896992

RETAINER

17

6668839

HOUSING Rear

18

6668840

SCREW

19

6668841

BUSH Assembly

20

6668842

SCREW

21

6668843

REGULATOR Voltage

22

6635498

NUT

23

6668844

WASHER

24

6668845

NUT

25

6668846

WASHER 1/4 in. stud

26

6668847

CAP

27

6668848

BOLT

28

6668849

SLEEVE 1/4 in. ID x 1/2 in.

29

6668850

SLEEVE #10 x 1/3

30

BOLT NLA - 10-24 x 1 1/2'' - Was 7C000322B - A

31

897245

INSULATOR Square - #10 ID, 5/8 in. OD

32

6668851

DIODE Trio

33

6668852

NUT

34

6668853

WASHER Flat 1/4 in.

35

6635531

WASHER Flat #10

36

6668854

WASHER Flat .023 ID x .50 OD

37

6649609

PULLEY

Выбрано товаров: 37
