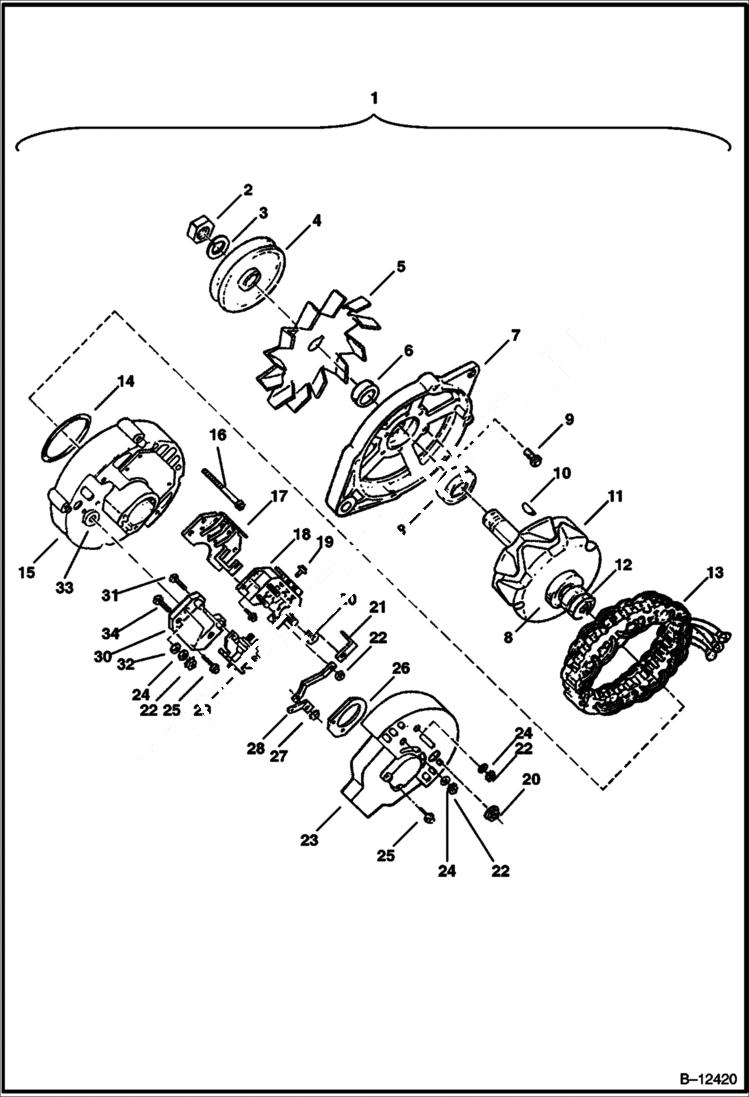

Запчасти Bobcat Articulated Loaders ALTERNATOR (Prestolite 8EA2013NA) ELECTRICAL SYSTEM

1

ALTERNATOR See BTI308 NLA - Order 6667344 - Was 6633295 - A

2

6635526

NUT

3

6635557

WASHER

4

6634856

PULLEY

5

6649458

FAN

6

6649459

CONNECTOR

7

HOUSING NLA - Order 6677336 kit - Was 6632948 - A

8

BEARING NLA - Was 889163B - A

9

SCREW NSS - Was 6635528 - A

10

6J405

KEY

11

6649456

ROTOR

12

SLIP RING NLA - Order 6677336 kit - Was 6634857 - A

13

6649457

STATOR

14

RETAINER NLA - Order 6677336 kit - Was 6599626 - A

15

HOUSING NLA - Order 6677336 kit - Was 6634855 - A

16

BOLT NLA - Order 6677336 kit - Was 6635455 - A

17

6634868

DIODE

18

6634858

DIODE

19

SCREW NLA - Order 6677336 kit - Was 6649460 - A

20

6635498

NUT

21

STRAP NSS - Was 6634948 - A

22

NUT NLA - Order 6677336 kit - Was 6635515 - A

23

COVER NLA - Order 6677336 kit - Was 6634931 - A

24

6635531

WASHER

25

84G1612

SCREW

26

GASKET NLA - felt - Order 6677336 kit - Was 6634892 - A

27

NUT NLA - Order 6677336 kit - Was 6635522 - A

28

STRAP NLA - Order 6677336 kit - Was 6634886 - A

29

BRUSH NLA - assy. - Order6677336 kit - Was 6634891 - A

30

6634952

REGULATOR

31

SCREW NLA - Order 6677336 kit - Was 6635529 - A

32

WASHER NSS - Was 6635564 - A

33

WASHER NLA - Was 896996B - A

34

6635529

SCREW Was 6649461 - A
