Запчасти Bobcat Articulated Loaders AUXILIARY CONSOLE ELECTRICAL SYSTEM

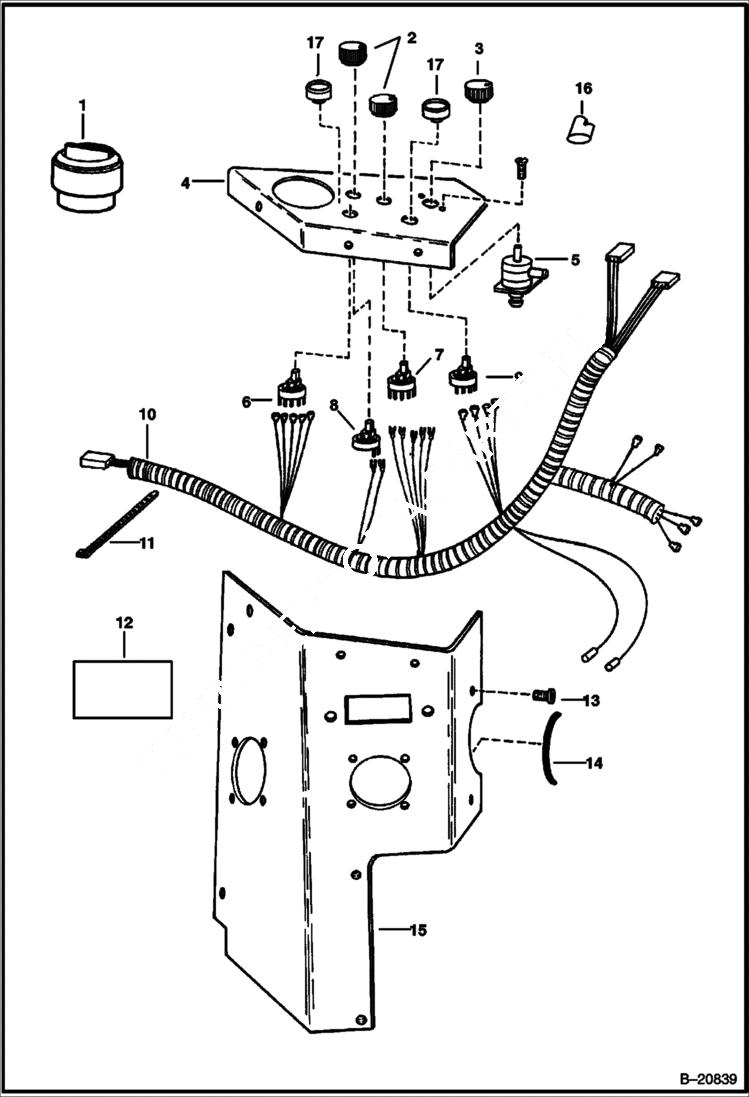

Схема запчастей Bobcat Articulated Loaders - AUXILIARY CONSOLE ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

LOUVER NLA - Was 6648430 - A

2

KNOB NLA - Was 6648424 - A

3

KNOB NLA - Was 6648434

4

6532095

COVER

5

6650254

VALVE

6

6648442

SWITCH front wiper

7

SWITCH NLA - blower - Was 6648445 - A

8

SWITCH NLA - dome light - Was 6648446 - A

9

6648442

SWITCH rear wiper - Optional

10

6534534

HARNESS Was 6585596 - A

11

6624289

STRAP, TIE Was 6648361 - A

12

6585755

DECAL dash

13

25G512

SCREW

14

6512686

MOULDING bulk - Sold Per Foot

15

6532080

PANEL

16

6567537

DIODE

17

KNOB NSS - Order 6648442 switch

Выбрано товаров: 17
