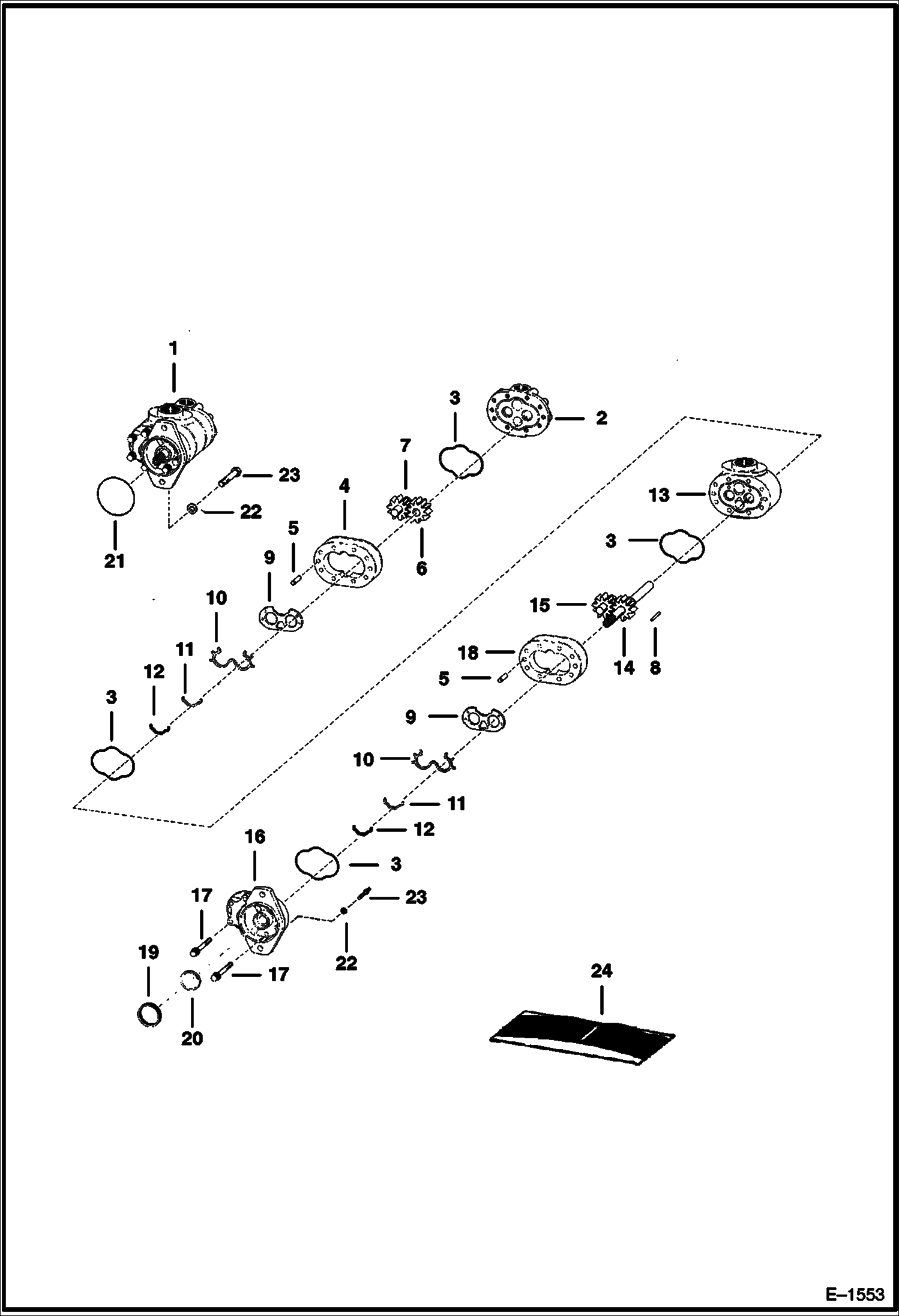

Запчасти Bobcat Articulated Loaders GEAR PUMP (Double) HYDROSTATIC SYSTEM

1

6655407

PUMP gear - Was 6636015 - A

2

6630361

PLATE back

3

O-RING NSS

4

6647740

BODY W/Ref. 5

5

455536

DOWEL

6

6647737

GEAR Slip

7

6647741

GEAR Idler

8

6647733

KEY

9

PLATE NSS - Wear

10

SEAL NSS

11

O-RING NSS - Molded

12

GASKET NSS

13

PLATE NLA - Adapter - W/Ref. 5 - Order 6655407, Pump - Was 6647736 - A

14

6647738

GEAR Idler

15

6647735

GEAR Idler

16

6631026

PLATE Front

17

6647739

BOLT

18

6647734

BODY W/Ref. 5

19

SEAL NSS

20

WASHER NSS

21

6645080

O-RING

22

6557831

WASHER

23

93G628

SCREW

24

6630387

SEAL KIT W/Ref. 3, 9-12, 19 & 20
