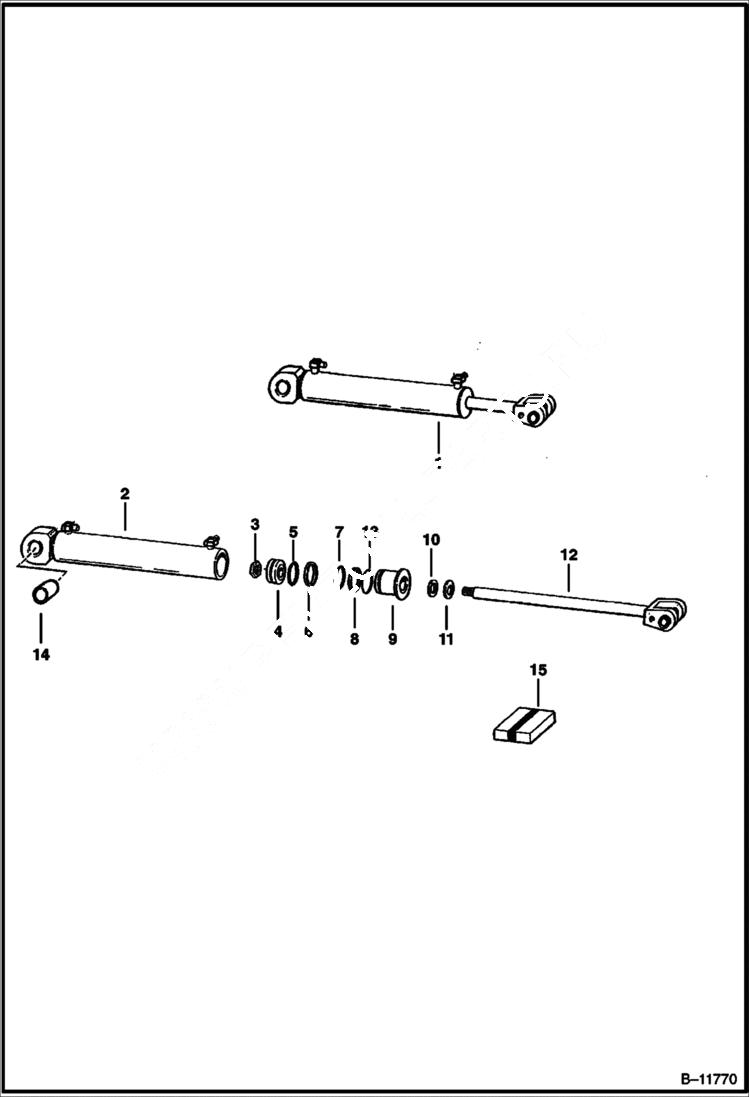

Запчасти Bobcat Articulated Loaders STEERING CYLINDER HYDRAULIC SYSTEM

1

6530324

CYLINDER Ref. 2-14

2

6586202

CASE W/Ref. 14

3

92D14

NUT Was 86D000014B - A

4

6529976

PISTON

5

O-RING NSS

6

SEAL NSS

7

O-RING NSS

8

WASHER NSS - back-up

9

6586342

HEAD Was 6529998 - A

10

SEAL NSS

11

WIPER NSS

12

6588903

ROD W/Ref. 13 - Was 6529973 - A

13

O-RING NSS

14

6645263

BUSHING

15

6589872

SEAL KIT W/Ref. 5-8, 10, 11 & 13 - Was 6586203 - A
