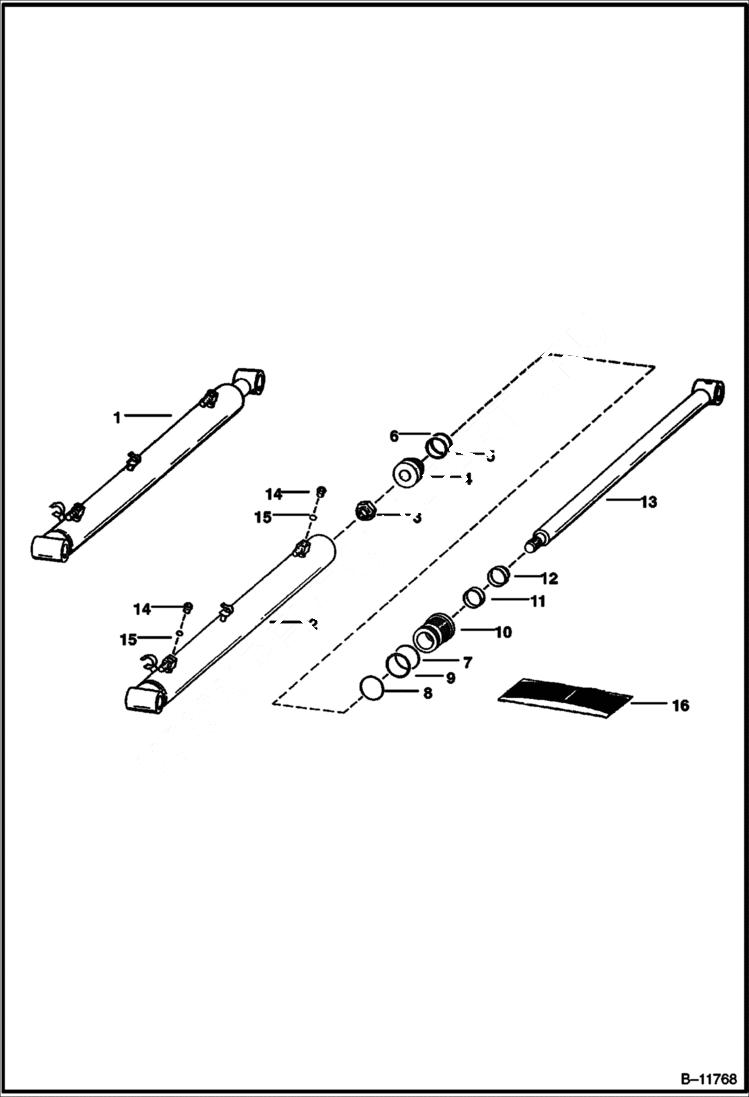

Запчасти Bobcat Articulated Loaders LIFT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-15 - Was 6537901 - A

2

6537902

CASE Was 6529403 - A

3

6810539

NUT Was 6804592 - A

4

6518213

PISTON

5

947088

RING, BACK-UP Was NSS - D

6

25K30218

O RING 10 Was 54K30218 - B

7

58K234

O RING 10 Was 54K40300 - B

8

25K40224

O RING 10 Was 54K40224 - B

9

80K000232

80K232B back-up - Was NSS - D

10

6529419

HEAD

11

6667327

SEAL Was NSS - D

12

6686999

WIPER, ROD CYL Was 6666544 - A

13

6529424

ROD

14

47K5

PLUG

15

79K6

O RING 10

16

6804603

SEAL KIT Ref. 3, 5-9, 11 & 12 - Was 6803269 - A
