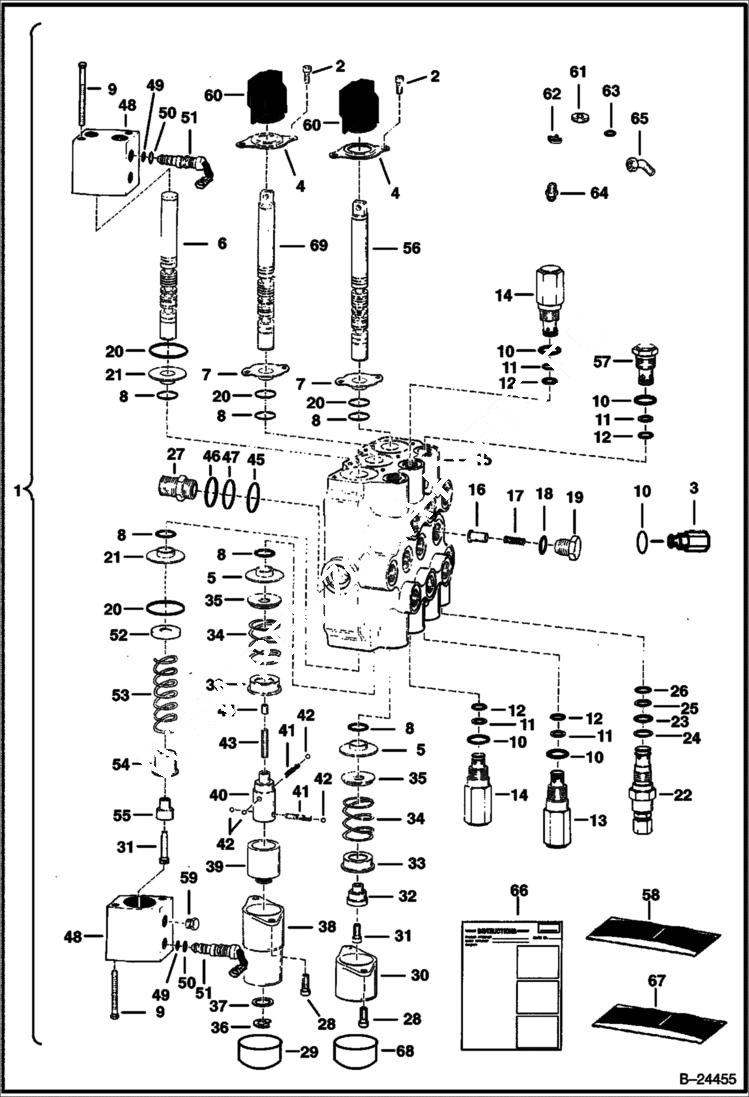

Запчасти Bobcat Articulated Loaders HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

6804949

VALVE ASMB 2400 Ref. 2-57

2

29G412

BOLT

3

6664373

VALVE Optional - Port Relief & anti-cav. - W/Ref. 10 - 2500PSI - Use in tilt cyl. base end port

3

6673904

SEAL KIT

4

6589564

RETAINER

5

6595663

BUSHING

6

6529787

SPOOL Auxiliary - Was NSS - D

7

6589565

BUSHING back-up

8

6665846

SEAL See BTI374

9

17C444

BOLT

10

79K10

O RING 10 Was 79K-8 - B

11

80K14

BACK-UP WASHER Was 73K000014B - B

12

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

12

6677106

O-RING Back-up Washer Not Required

13

6667549

VALVE W/Ref. 10-12

14

6673184

VALVE Relief - W/Ref. 10-12

15

BODY NSS

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

1K127

O-RING 10 Was 93K127 - A

21

6804920

BUSHING

22

VALVE NLA - Main Relief - Press. Preset at Factory - Was 6646385 - A

22

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

O-RING NSS

27

6591239

ADAPTER W/Ref. 45-47

28

29G416

BOLT 1 in.

29

6660644

CAP

30

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - C

31

30G416

BOLT

32

6592109

ADAPTER

33

6592100

COLLAR

34

6587580

SPRING Was 6529748 - A

35

7211397

WASHER, SPRING Was 6587523 - A

36

799119

RING

37

6592098

WASHER

38

6589226

COVER, END 0.63'' flange

39

6592096

SLEEVE

40

6587575

ADAPTER Was 6592099 - A

41

6592107

SPRING

42

6592105

BALL

43

6586918

SCREW Was 6535747 - B

44

PLUG NLA - plastic - Order 6596807 plug & 54K020002 O-ring

44

6596807

PLUG plastic - 0.46'' long

44

54K20002

O'RING 10

45

58K20

O RING 10 Was 25K-20028 - B

46

79K14

O RING 10

47

BACK-UP RING NLA - Was 73K000020B - A

48

6531083

BLOCK

49

25K20010

O RING 10

50

79K6

O RING 10

51

6673790

VALVE PULSAR

52

6593364

WASHER

53

6593366

SPRING Centering

54

6593365

COLLAR

55

6593358

ADAPTER

56

6666585

SPOOL Tilt - #1 or Red

56

6666586

SPOOL Tilt - #2 or Green

56

6666587

SPOOL Tilt - #3 or Black

57

6592720

PLUG W/Ref. 10-12 - Was 6648986 - A

58

6816250

KIT, SEAL See BTI374 - Ref. 8, 28 & 60 - For One Spool - Was 6589856 - A

58

6661328

SEAL KIT Ref. 23-26 - Was 6592474 - A

58

6809425

SEAL KIT Ref. 10-12 & 18 - Was 6586461 - A

58

6803606

SEAL KIT See BTI374 - Ref. 4, 6, 9,12-14, 19, 23-26 & 29 - Was 6803606 - A

59

47K3

PLUG

60

6587763

BOOT SEE NOTE - Was 6583727 - A

61

6593680

RETAINER Install in rear port of tilt section when using grapple fork or fertilizer bucket

62

RESTRICTOR NLA - Install in rear port of tilt section when using grapple fork or fertilizer bucket - Was 6592762 - A

63

79K10

O RING 10 Install in rear port of tilt section when using grapple fork or fertilizer bucket

64

RESTRICTOR NLA - Install in rear port of tilt section when using grapple fork or fertilizer bucket - Was 6662901 - A

65

12K7

UNION Install in rear port of tilt section when using grapple fork or fertilizer bucket

66

6570922

INSTRUCTIONS For installing restrictors

67

6532606

KIT Dump restrictor - Ref. 61-66 - See Serviceletter of 29 Aug. 92

68

6662848

CAP Use with 6587633 bonnet

69

6666582

SPOOL Lift - #1 or Red

69

6666583

SPOOL Lift - #2 or Green

69

6666584

SPOOL Lift - #3 or Black
