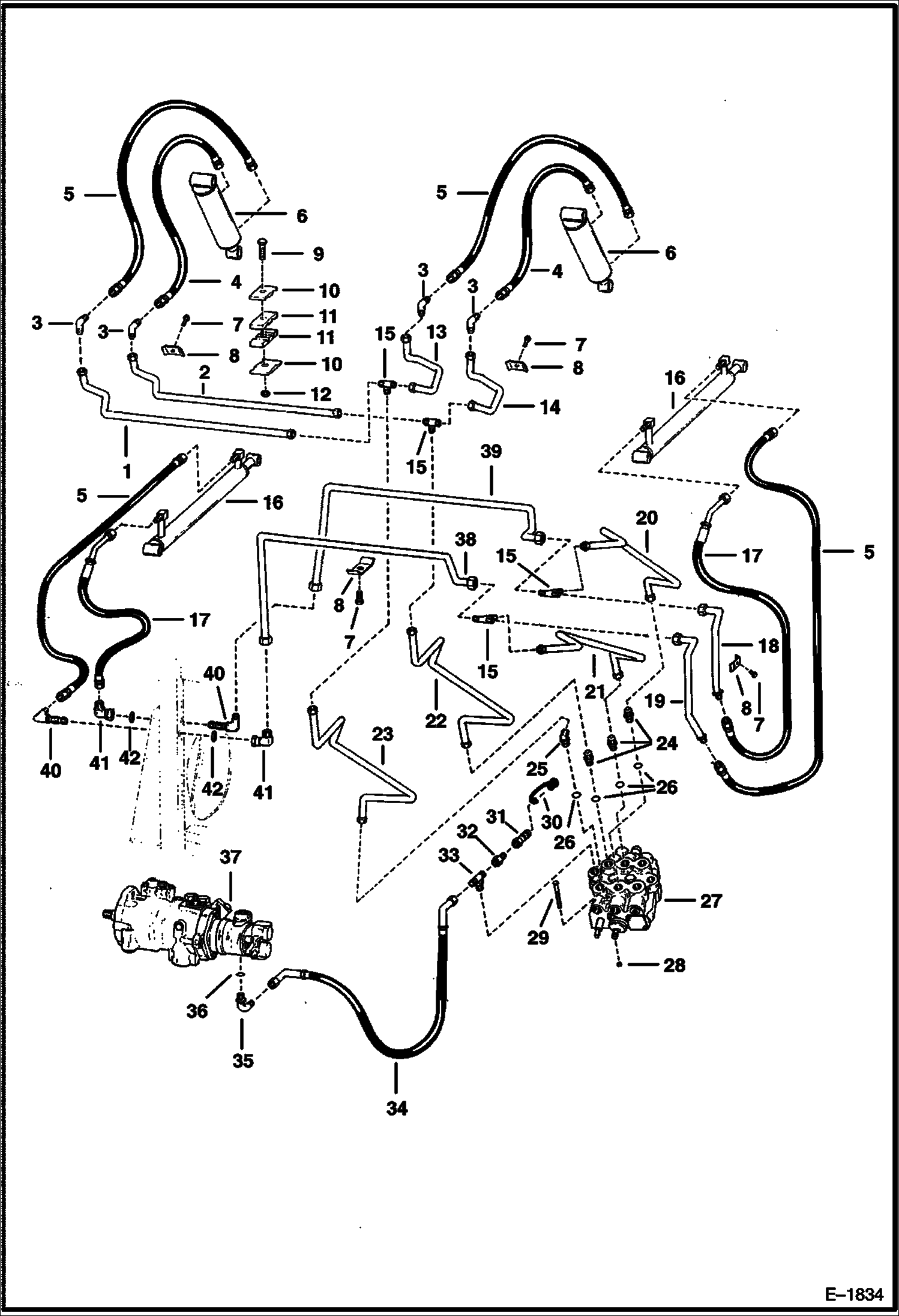

Запчасти Bobcat Articulated Loaders HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6586012

TUBE

2

6586011

TUBE

3

77F6

ELBOW

4

6531884

HOSE

5

6538241

HOSE Was 6584655 - A

6

CYLINDER See Illustration TILT CYLINDER/ B13490 See Illustration TILT CYLINDER/ B11772 TILT

7

84G3724

BOLT

8

6502426

CLAMP

9

17C424

BOLT

10

6647638

CLAMP

11

6647637

CLAMP

12

61D4

NUT 5

13

6586013

TUBE

14

6586014

TUBE

15

6560136

TEE

16

CYLINDER See Illustration LIFT CYLINDER/ B11768 LIFT

17

6538242

HOSE Was 6586028 - A

18

6586016

TUBE

19

6586015

TUBE

20

6586010

TUBE

21

6586008

TUBE

22

6586009

TUBE

23

6586007

TUBE

24

15K7

FITTING

25

18K7

FITTING

26

79K10

O RING 10

27

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E1847

28

61D5

NUT

29

17C560

BOLT

30

6630367

CAP

31

6646635

COUPLER diagnostic

32

784244

ADAPTOR

33

19K7

TEE

34

6533261

HOSE

35

17K8

FITTING

36

79K12

O RING 10

37

PUMP See Illustration HYDROSTATIC PUMP/ B20801

38

6586005

TUBE

39

6586006

TUBE

40

88F6

ELBOW

41

11K6

UNION

42

86F6

NUT
