Запчасти Bobcat Articulated Loaders CAB HEATER MAIN FRAME

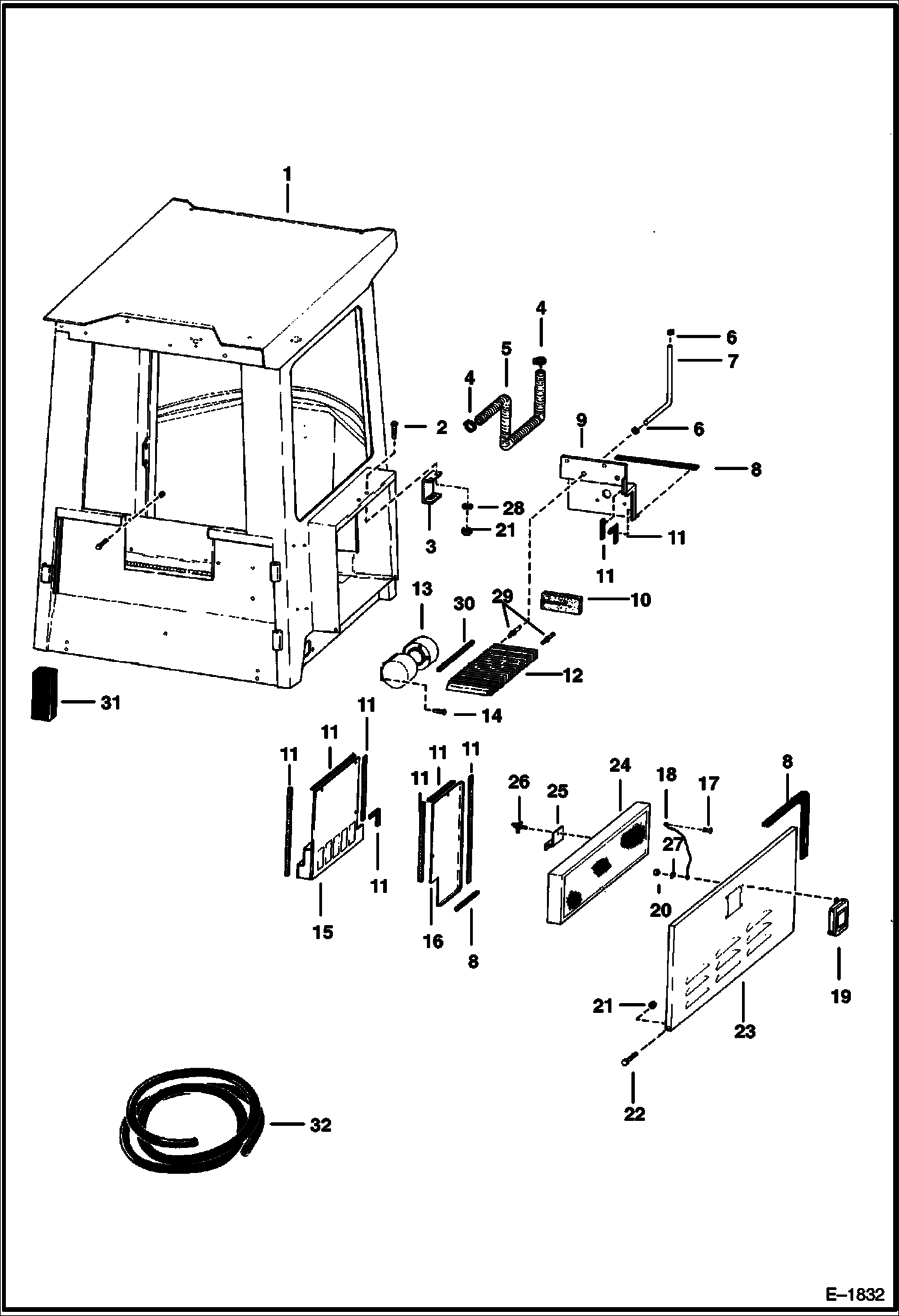

Схема запчастей Bobcat Articulated Loaders - CAB HEATER MAIN FRAME

Артикул

Название

Примечание

Количество

1

6535288

CAB See Illustration CAB/ B20830 See Illustration CAB/ E1825

2

25G512

SCREW

3

6532108

BRACKET

4

42H32

HS CLAMP5

5

HOSE NLA - Bulk-Sold per ft. - Was 6648381 - A

6

42H10

HOSECLAM5 Was 42H000006B - B

7

889269

HOSE BULK/FT Bulk-Sold per ft. - Was 6531883 - A

8

6648401

SEAL

9

6534661

COVER Was 6632091 - A

10

6532125

FOAM evaporator seal

11

6648416

SEAL BULK /FT bulk - Sold Per Foot

12

HEATER CORE NLA - W/External Tanks - Was 6651337 - A

12

6653691

HEATER CORE W/O external tanks

13

6668724

BLOWER ASSY. Was 6648350 - A

14

86G1008

SCREW Was 85G001008B - B

15

6532082

COVER

16

6532087

COVER

17

17C408

BOLT

18

6534563

CABLE Was 6532143 - A

19

6648357

LATCH

20

61D4

NUT 5 Was 85D000004B - B

21

61D5

NUT

22

38C606

BOLT Was 6534900 - A

23

6532063

DOOR

24

AIR FILTER NLA - Was 6648356 - A

25

6532109

BRACKET

26

6648362

KNOB

27

4E4

WASHER

28

25E15

WASHER

29

6532758

CONNECTOR

30

FOAM NLA - Order Ref. 32

31

6532888

FOAM Seal Corner Tube & Cab

32

6511855

SEAL self adhesive - bulk - sold per foot

Выбрано товаров: 33
