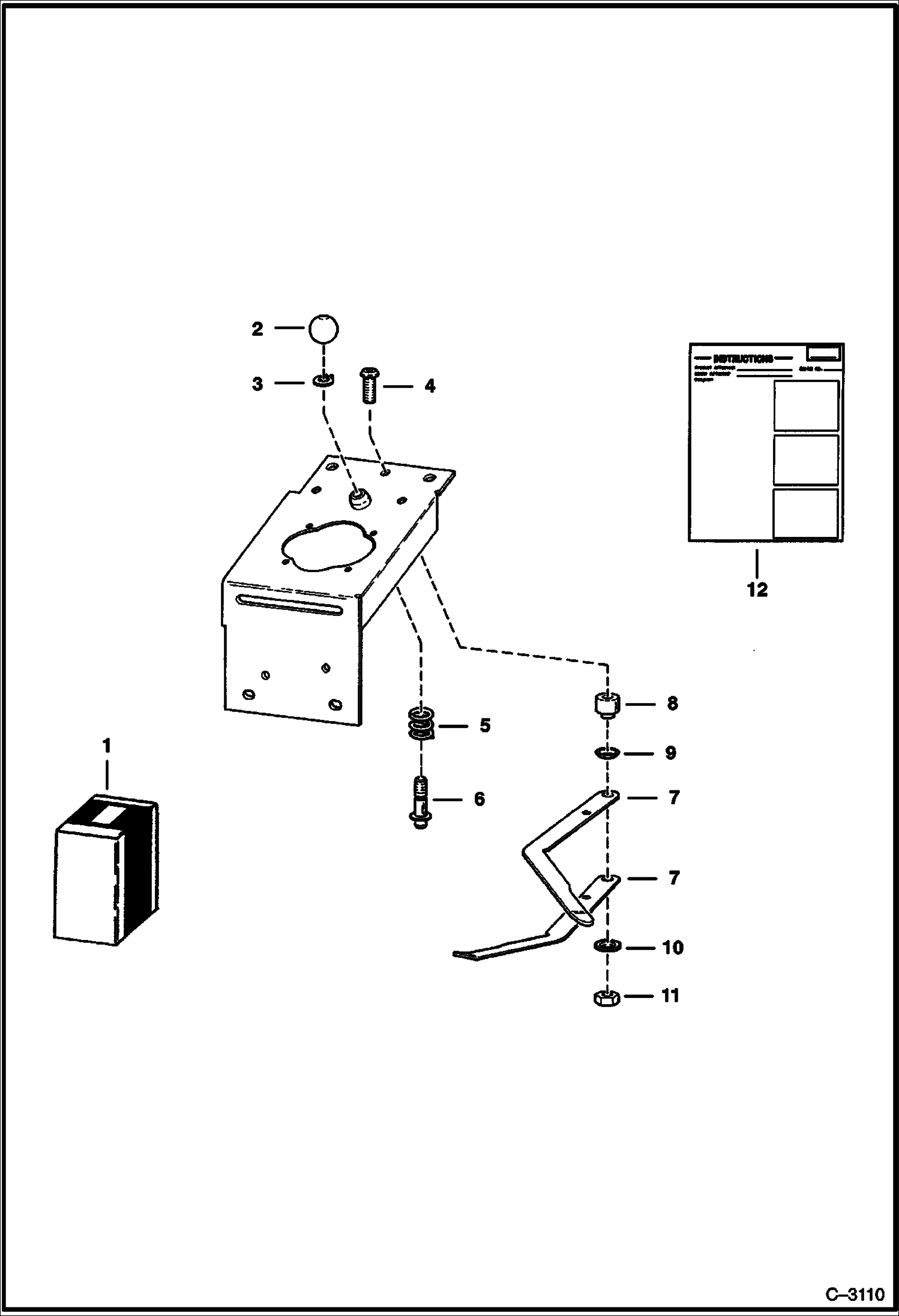

Запчасти Bobcat Articulated Loaders VALVE LOCK KIT ACCESSORIES & OPTIONS

1

KIT NLA - Order Ref. 2-12 - Was 6531766 - A

2

6649680

KNOB

3

710778

SNAP RING

4

35C520

BOLT Was 25G000620B - B

5

6650689

SPRING

6

6531641

LOCK PIN

7

6534556

LOCK LEVER

8

6531633

BUSHING

9

773085

WASHER

10

25E15

WASHER

11

85D5

NUT 5 Was 85D000006B - D

12

6570952

INSTRUCTIONS
