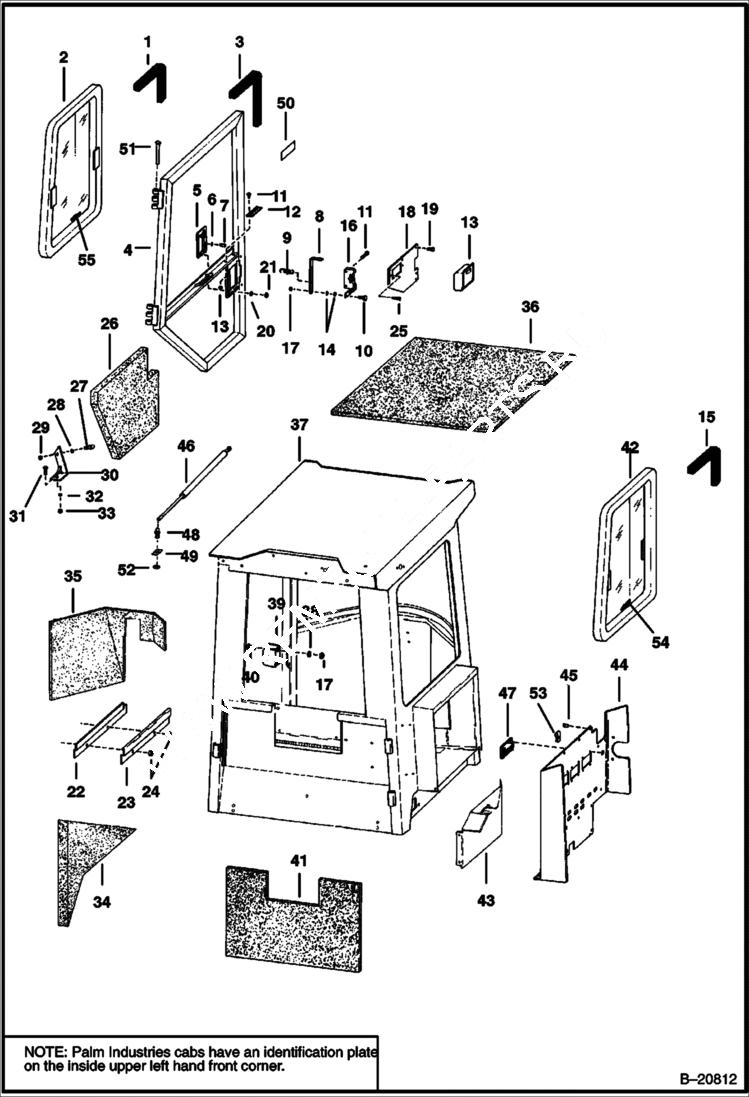

Запчасти Bobcat Articulated Loaders DELUXE CAB (Palm) ACCESSORIES & OPTIONS

1

6648405

SEAL bulk - Sold Per Foot

2

6653547

WINDOW L.H. - Was 6648419 - A

3

6648401

SEAL bulk - Sold Per Foot

4

6532041

DOOR Was 6583514 - A

5

6648421

LATCH

5

6650682

KEY LL22

6

6648418

WASHER Was 6532112 - A

7

6532167

BOLT Was 6648420 - A

8

6532047

LATCH inside release - Was 6583517 - A

9

6648412

SPRING

10

38C606

BOLT shoulder - Was 6534900 - A

11

6532045

BOLT Was 6648410 - A

12

6532046

PLATE Was 6648413 - A

13

ASH TRAY NLA - Was 6649945 - A

14

6648414

WASHER nylon

15

6514301

SEAL bulk - sold per foot - Was 6514031 - D

16

6648417

LATCH

17

85D5

NUT 5 Was 6588364

18

6583538

COVER door latch

19

6649129

SCREW Was 84G -1908 - B

20

4E4

WASHER Was 6648423

21

61D4

NUT 5 Was 6648409

22

6532107

PROTECTOR seal

23

6532106

DOOR SEAL Was 6583514 - A

24

85D8

NUT, 5 Was 6648388

25

57G612

BOLT

26

DOOR CARPET NLA - Was 6532048 - A

27

6733616

BUMPER Was - 6649040 - A

28

25E17

WASHER 5 Was 6648443

29

85D5

NUT 5 Was 6650255 - B

30

6531842

BRACKET

31

17C624

BOLT 5

32

23E6

WASHER Was 62D000006B

33

85D6

NUT, 5

34

6532555

CARPET lower - L.H.

35

6532103

CARPET front panel - Was 6583490 - A

36

CARPET NLA - headliner - Was 6538504 - A

37

CAB NLA - Was SALES

38

25E15

WASHER Was 6648397

39

6532058

STRIKER bracket - Was 6583676 - A

40

25G512

SCREW Was 6648382

41

CARPET NLA - rear - Was 6532104 - A

42

6653548

WINDOW R.H. - Was 6648367 - A

43

6583702

PANEL throttle

44

6532066

CONSOLE Was 6586220 - A

45

25G510

BOLT

46

6646495

CYLINDER gas

47

LOUVER NLA - W/Retainer Clip - Was 6648432 - A

48

6586162

BALL STUD

49

6650255

NUT Was 6646598 - B

50

6583848

DECAL door latch

51

6534314

HINGE PIN

52

62D6

NUT 5

53

6650255

NUT Was 6646598 - B

54

6660851

KNOB R.H.

55

6660850

KNOB L.H.
