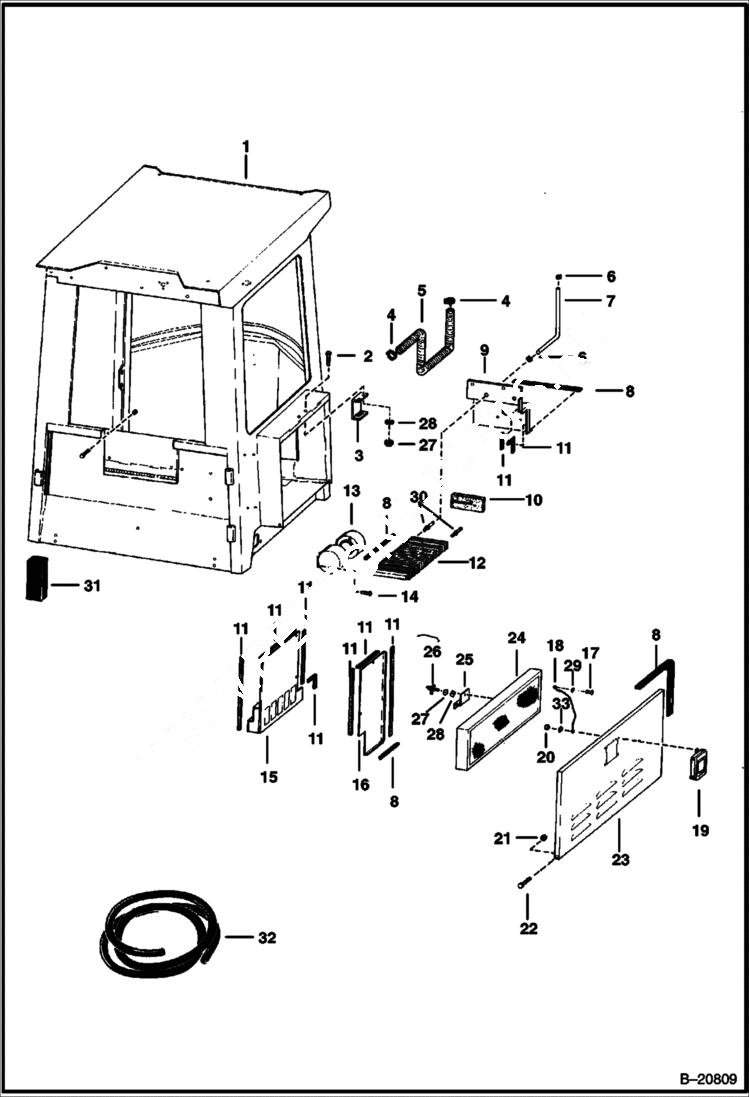

Запчасти Bobcat Articulated Loaders CAB HEATER (Deluxe Cab - Palm) ACCESSORIES & OPTIONS

1

CAB NLA - Was SALES

2

25G512

SCREW Was 6648382 - A

3

6532108

BRACKET Was 6583522 - A

4

42H32

HS CLAMP5 Was 6648366 - A

5

HOSE NLA - 60 in. (1524 mm) lg. - Bulk - sold per foot - Was 6648381 - A

6

42H10

HOSECLAM5 Was 42H000006B - B

7

6578172

HOSE 120''(3048mm) - Bulk - Was 6531883 - A

8

6648401

SEAL

9

6534661

COVER Was 6632091 - A

10

6532125

FOAM evaporator seal - Was 6583722 - A

11

6648416

SEAL BULK /FT bulk - Sold Per Foot

12

HEATER CORE NLA - W/Connectores - Was 6651337 - A

13

6668724

BLOWER ASSY. Was 6648350 - A

14

86G1008

SCREW Was 85G001008B

15

6532082

COVER Was 6583670 - A

16

6532087

COVER Was 6583673 - A

17

17C408

BOLT Was 6648385

18

6558309

WIRE ROPE 19.2'' (487.7mm) lg. - Bulk - sold per foot - Was 6648355

19

6648357

LATCH

20

61D4

NUT 5 Was 85D000004B

21

85D5

NUT 5 Was 6648364

22

38C606

BOLT Was 6534900 - A

23

6532063

DOOR Was 6583682 - A

24

AIR FILTER NLA - Was 6648356 - A

25

6532109

BRACKET Was 6583254 - A

26

6648362

KNOB

27

61D5

NUT

28

25E15

WASHER

29

6558310

SLEEVE

30

6532758

CONNECTOR

31

6532888

FOAM Seal Corner Tube & Cab

32

6511855

SEAL self adhesive - bulk - sold per foot

33

4E4

WASHER
