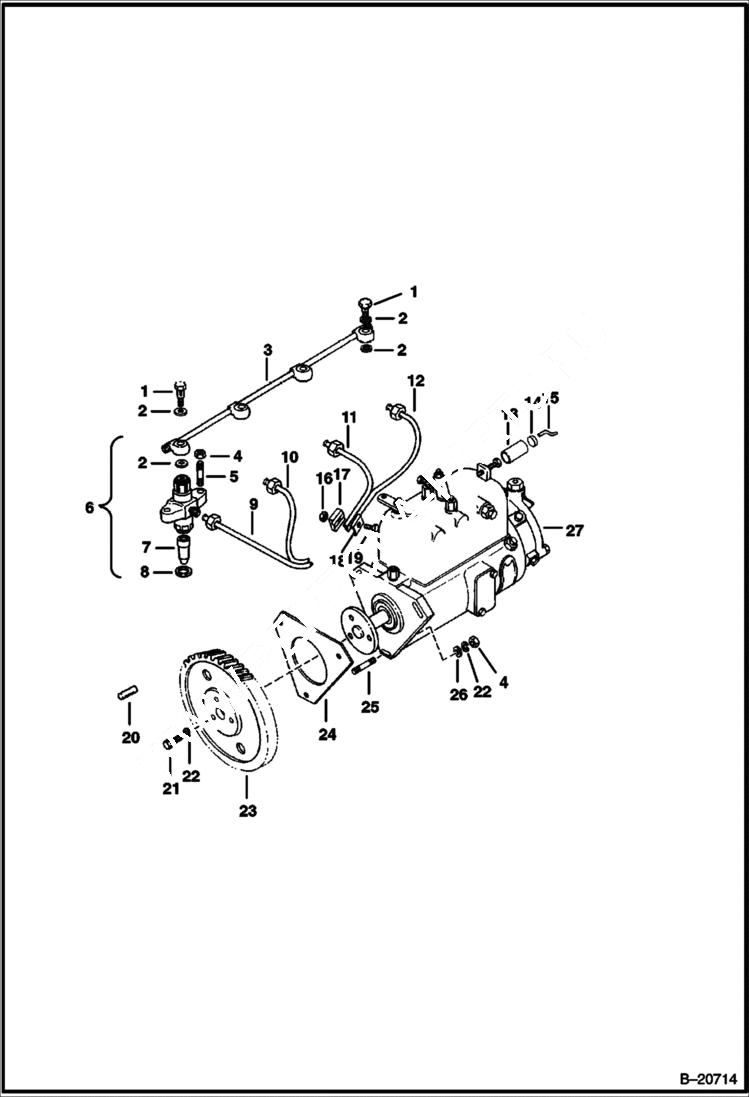

Запчасти Bobcat Articulated Loaders FUEL INJECTION SYSTEM POWER UNIT

1

3490094

BOLT

2

3490095

WASHER 5

3

PIPE NLA - Was 6514475 - A

4

10D5

NUT

5

998286

STUD

6

6598657

INJECTOR ASSY

7

6598658

NOZZLE

8

3490720

WASHER

9

997993

TUBE

10

6514473

PIPE

11

6514474

PIPE

12

997996

TUBE

13

3490323

SLEEVE

14

3490324

SEAL

15

3490325

WIRE

16

1781096

NUT Was 3734234B - A

17

3725677

DAMPERS

18

3725678

PLATE

19

46G1016

SCREW

20

3726071

PIN

21

18C518

BOLT

22

23E5

L WASHER Was 2E000005B - A

23

GEAR NLA - Was 997991 - A

24

6668020

GASKET Was 3490326B - A

25

3734650

STUD

26

3725700

WASHER

27

PUMP NLA - injection - Order 6598656REM - Was 6598656 - A

27

6598656REM

PUMP, FUEL INJ. PERKINS 4.154
