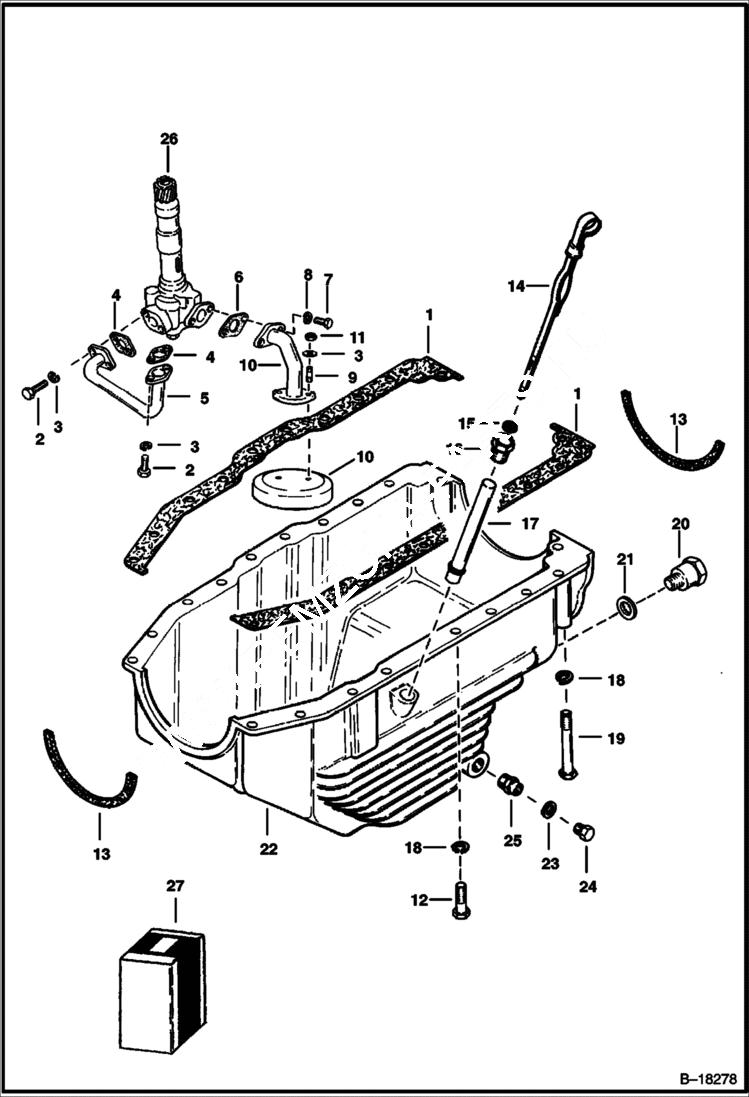

Запчасти Bobcat Articulated Loaders LUBRICATION SYSTEM POWER UNIT

1

997780

GASKT SET

2

18C412

BOLT

3

WASHER NLA - Was 2E000004B - A

4

GASKET NLA - Was 998060 - A

5

PIPE NLA - Was 6598506 - A

6

998059

GASKET Was 988059 - D

7

18C510

BOLT

8

3725430

WASHER

9

6598684

STUD

10

6654233

PIPE ASSY Was 6598505 - A

11

3726714

NUT

12

18C514

BOLT

13

6598672

GASKET

14

6598659

DIPSTICK

15

3725516

WSHR

16

3490066

NUT

17

TUBE NLA - dipstick - Was 6598504 - A

18

23E5

L WASHER Was 2E000005B - A

19

18C568

BOLT

20

994965

PLUG

21

994959

WASHER

22

6598503

OIL PAN

23

WASHER NLA - Was 3729943B - A

24

PLUG NLA - Order 1 of 6649446 & 6649447 - Was 3729944B - A

25

905801

INSERT

26

PUMP NLA - Was 6598501 - A

27

908233

GASKETSET Gasket - bottom overhaul
