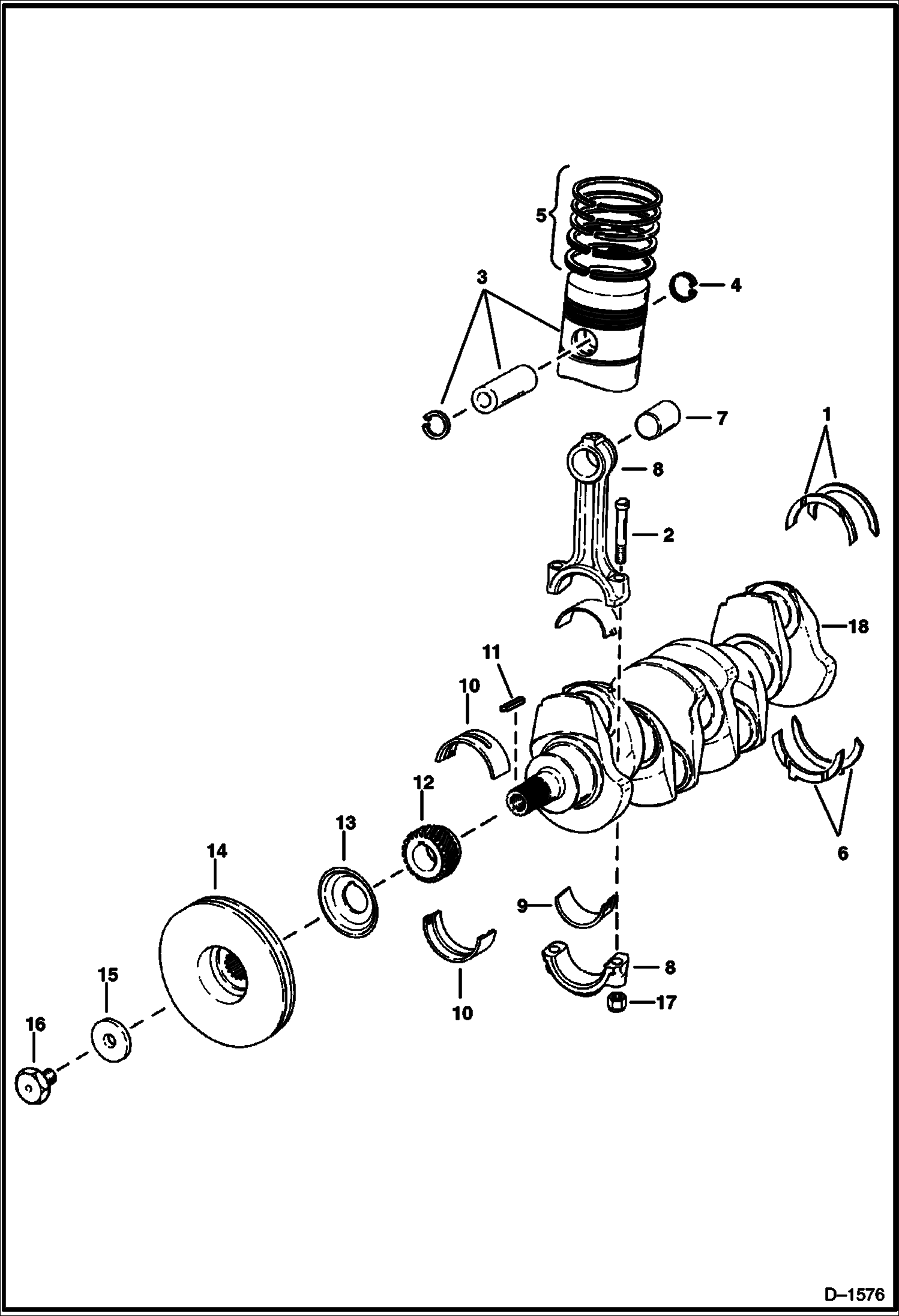

Запчасти Bobcat Articulated Loaders CRANKSHAFT POWER UNIT

1

WASHER NLA - thrust - std - set of 4 halves - Was 6599250 - A

1

998015

PLATE Thrust - +.007 - 1/2 washer

2

998302

BOLT

3

PISTON ASSY Standard NLA - Standard - Was 998030 - A

3

998031

PISTON .030 - Piston only

4

3490709

RING

5

998051

RING SET Standard

5

997984

RING SET .030

6

WASHER NLA - thrust - std - set of 4 halves - Was 6599250 - A

6

998009

WASHER Thrust - +.007 - 1/2 washer

7

BUSHING NLA - Was 998295 - A

8

998023

ROD ASY W/Ref. 2-7 & 17

9

BEARING NLA - Rod - Std.-Complete Eng. Set - Was 6599248 - A

9

6630223

BEARING Rod bearing - .010 - Was 998026B - A

9

BEARING rod bearing (.020) - Was 6630224 - A

9

6630225

BEARING Rod bearing - .030 - Was 998028B - A

10

BRG NLA - main - std - complete eng set - Was 998010 - A

10

6630226

BEARING Main bearing - .010 - Was 998011B - A

10

BEARING Main bearing - .020 - Was 998012B NLA - main bearing (.020) - Was 6630227 - A

10

6630228

BEARING Main bearing - .030 - Was 998013B - A

11

998018

KEY

12

998020

GEAR

13

6599295

FLANGE Was 998016B - A

14

PULLEY NLA - Was 6598663 - A

15

3736927

WASHER

16

3736926

BOLT

17

62D7

NUT

18

998007

SHAFT crankshaft - W/Ref. 1, 6 & 9-11
