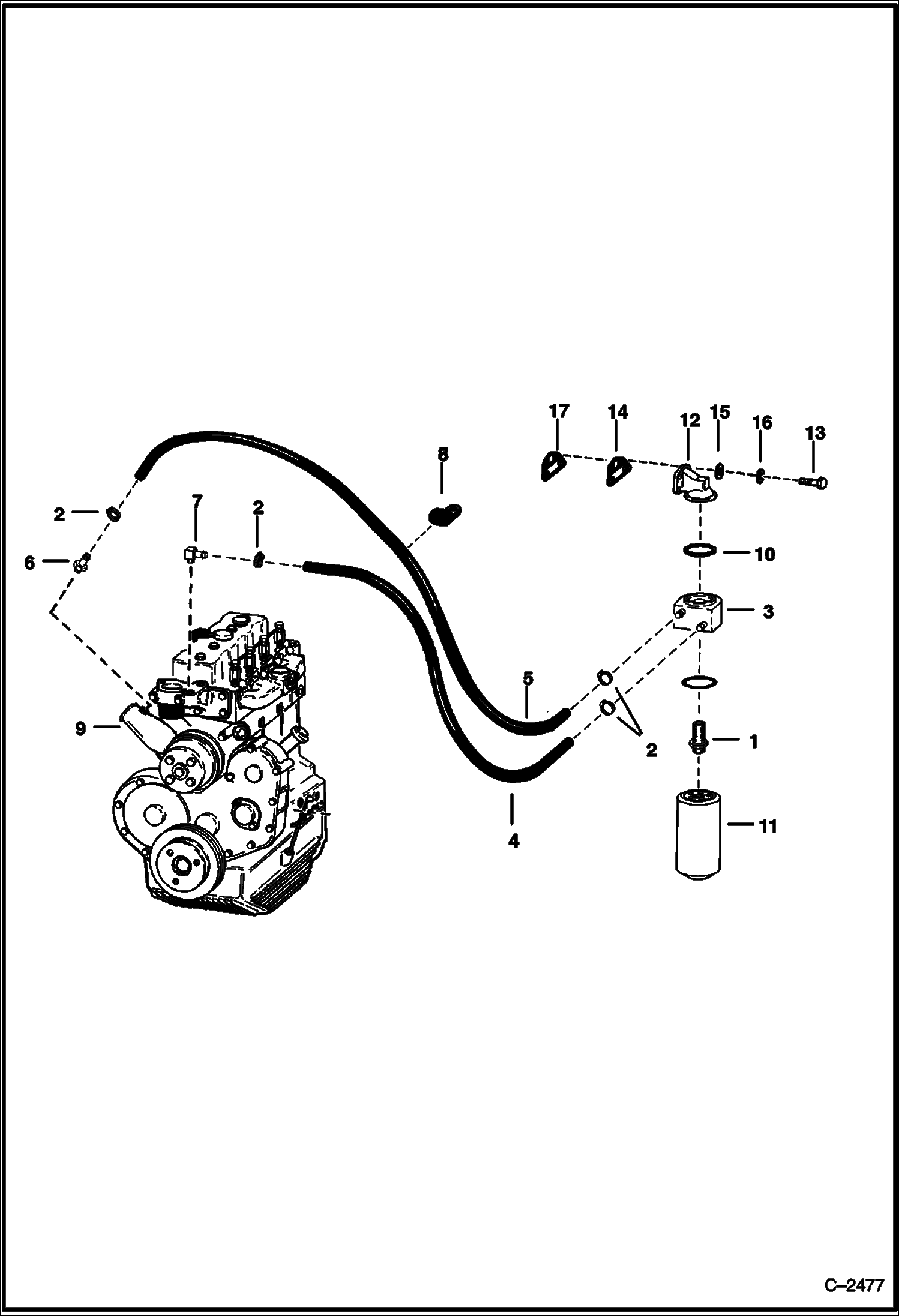

Запчасти Bobcat Articulated Loaders ENGINE OIL COOLER & FILTER POWER UNIT

1

CONNECTOR NLA - 56,6 mm (2.23'') wide cooler - Was 6660452 - A

1

6646196

ADAPTER Use W/ 1.89'' wide cooler

2

42H8

HOSE CLAMP 5

3

COOLER NLA - 2.23'' Wide - Order 6645850 & 6646196 - Was 2342092B - A

3

6645850

OIL COOLER 1.89'' Wide

4

6560649

HOSE

5

6560648

HOSE

6

666867

NIPPLE

7

666842

ELBOW

8

30H49

CLAMP

9

6562985

INLET

10

6651862

GASKET For 2.23'' wide cooler

10

962263

GASKET For 1.89'' wide cooler

11

960698

OIL FILTR 12

12

6514491

HEAD

13

6598018

BOLT

14

6668016

GASKET Was 6668047 - A

15

6598019

WASHER

16

6598020

LOCK WASHER

17

SHIM NLA - Was 6598662 - A
