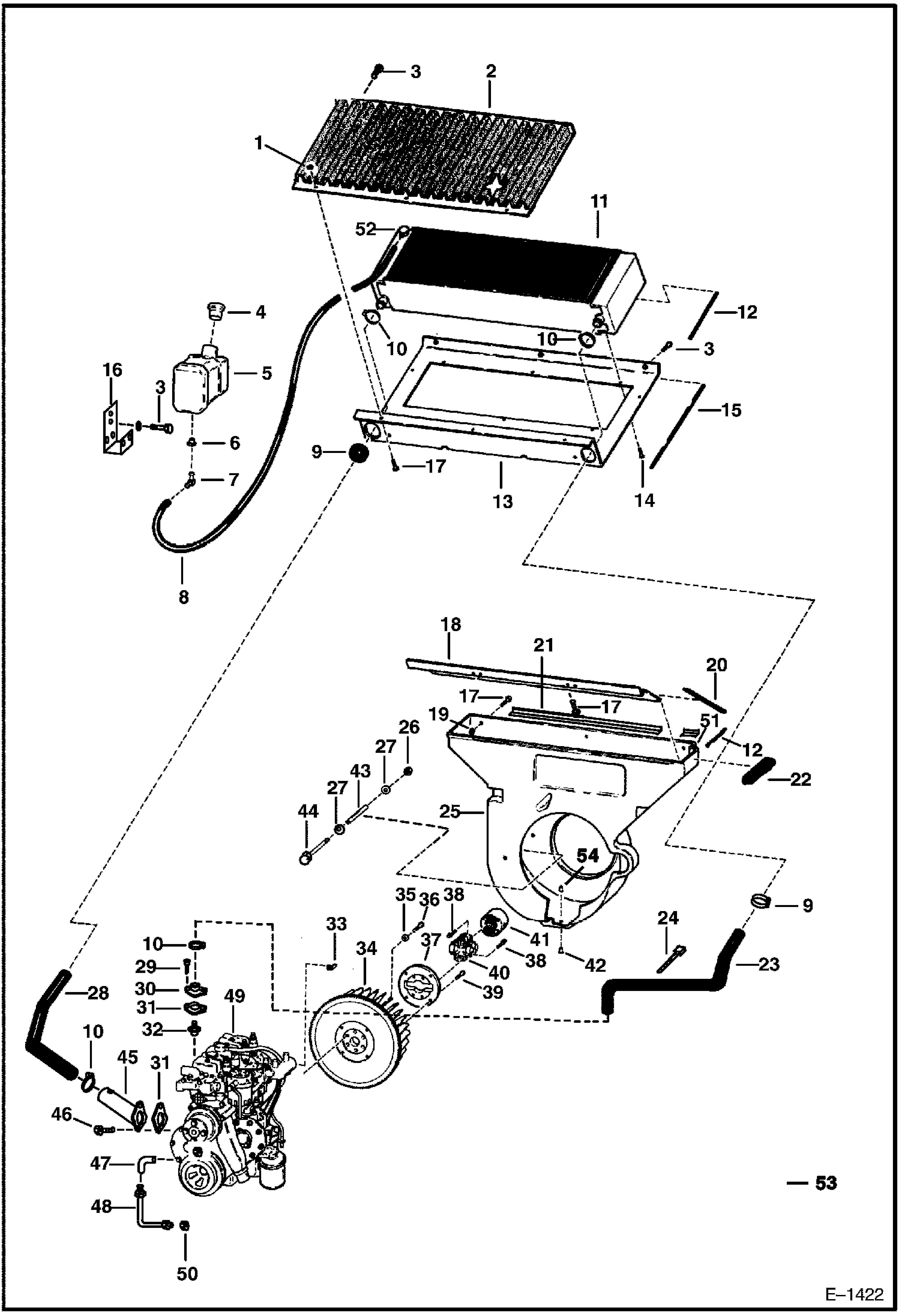

Запчасти Bobcat Articulated Loaders ENGINE & ATTACHING PARTS POWER UNIT

1

57D6

NUT 5

2

GRILL NLA - Was 6567867 - A

3

84G3712

BOLT 5

4

6702797

CAP Was 6558658 - A

5

6562509

TANK coolant - Also Order Ref. 6 & 7

5

6576660

TANK, WATER COOLANT W/bottom molded barbed elbow

6

6553411

BUSHING Use W/Ref. 5 (6562509 tank)

7

6553412

ELBOW Use W/Ref. 5 (6562509 tank)

8

6562603

HOSE

9

6512067

GROMMET

10

42H24

CLAMP-5

11

6648799

RADIATOR Was 6632203 - A

12

6511855

SEAL self adhesive - bulk - sold per foot

13

6583945

SHIELD

14

1C506

BOLT Was 17C000506B - A

15

6584099

MOULDING

16

6584230

MOUNT

17

84G3716

SCREW 5

18

6584830

SHIELD

19

774220

NUT

20

6584239

MOULDING Order 3' of 6584050 Seal

21

6584380

BRACKET

22

6560690

STRIP foam

23

6559952

HOSE

24

6624289

STRAP, TIE

25

6562211

BLOWER SHROUD blower

26

55D6

NUT Was 6599334 - A

27

25E17

WASHER 5

28

6559953

HOSE

29

18C622

BOLT

30

3679233

CONNECTOR

31

6668031

GASKET Was 3725791B - A

32

6514600

THERMOSTAT

33

6513679

VALVE

34

6563110

BLOWER wheel - W/Ring Gear

34

6513662

RING GEAR

35

6557929

WASHER

36

18C822

SCREW

37

6562882

ADAPTER

38

94G524

BOLT 5

39

17C624

BOLT 5

40

U-JOINT See Illustration UNIVERSAL JOINT/ B8970

41

YOKE See Illustration UNIVERSAL JOINT/ B8970

42

RIVET NLA - Order 35C-620 Bolt & 59D-6 Nut - Was 1316539B - A

42

35C620

BOLT 5

43

6563592

BUSHING

44

7C6136

BOLT

45

6562985

INLET

46

18C512

BOLT

47

17K6

ELBOW

48

541050

HYD HOSE

49

ENGINE See Illustration ENGINE/ E1686

50

36K7

FITTING

51

6584240

BEADING Order 1' of 6646705 Seal

52

6666606

RADIATOR CAP Was 6630156 - A

53

INSULATION NLA

54

59D6

NUT
