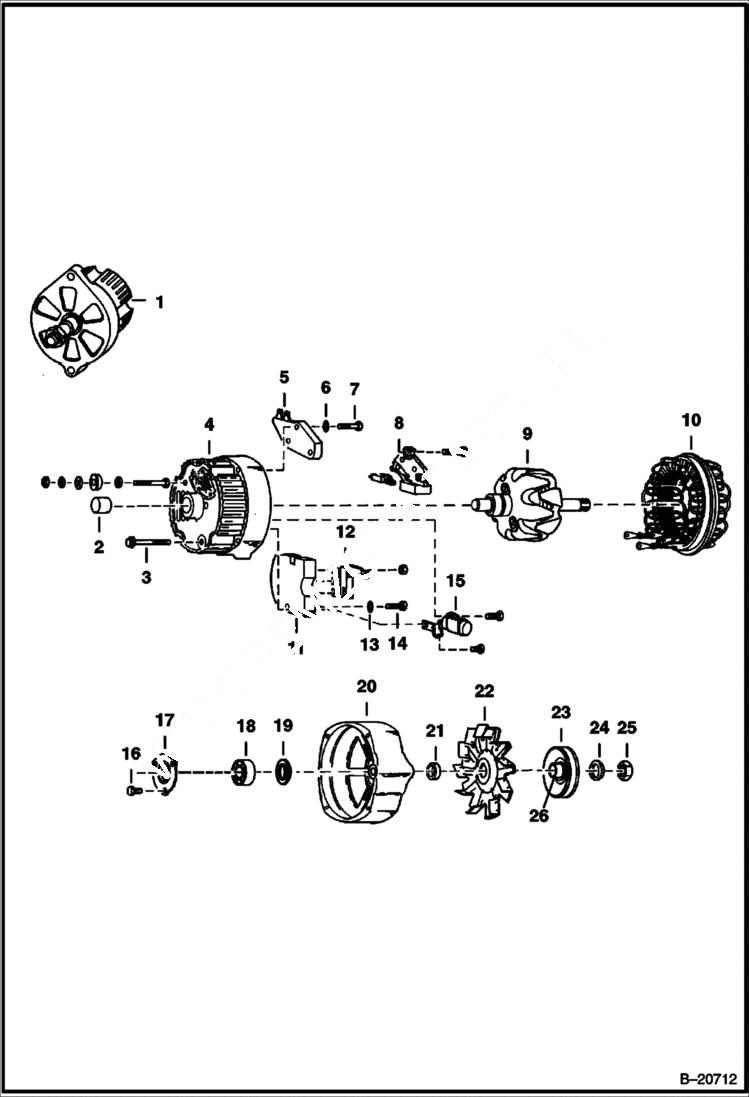

Запчасти Bobcat Articulated Loaders ALTERNATOR ELECTRICAL SYSTEM

1

ALTERNATOR NLA - Order 908221B

2

BEARING NLA - Was 905351B - A

3

BOLT NLA - thru - Was 897467B - A

4

FRAME NLA - W/Ref. 2 - Was 905956B - A

5

REGULATOR NLA - voltage - Was 994381B - A

6

WASHER NLA

7

BOLT NLA - Was 999396B - A

8

HOLDER NLA - brush assembly - Was 999394B - A

9

ROTOR NLA - Was 999305B - A

10

2343911

STATOR Was 999392B - A

11

RECTIFIER NLA - Was 995185B - A

12

DIODE Was 994383B - A

13

WASHER NLA

14

994373

BOLT

15

CAPACITOR NLA - Was 999308B - A

16

45G1008

BOLT

17

RETAINER NLA - bearing - Was 897456B - A

18

784950

BEARING Was 905350B - A

19

SLINGER NLA

20

HOUSING NLA

21

909831

COLLAR Was 905958B - A

22

329884

FAN

23

906104

PULLEY

24

WASHER NLA - Was 794584B - A

25

NUT NLA - Was 859369B - A

26

906111

COLLAR
