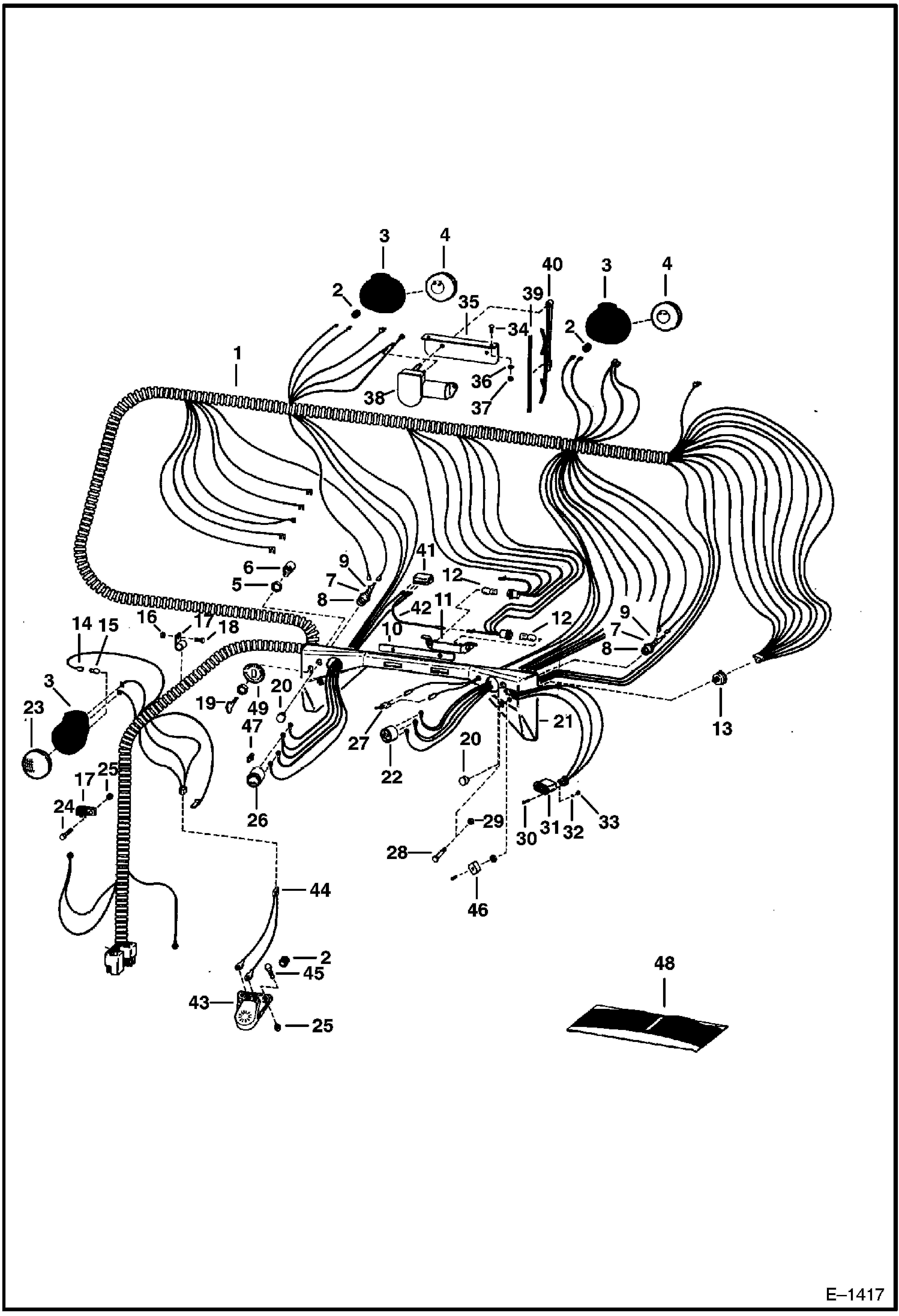

Запчасти Bobcat Articulated Loaders CAB ELECTRICAL ELECTRICAL SYSTEM

1

6561644

HARNESS operator cab

2

6557493

GROMMET

3

6558142

HOUSING lamp

4

6557486

LAMP

5

6598721

NUT For 6519592 Switch

5

6674202

NUT For 6665606 Switch

6

SWITCH See BTI289 NLA - ignition - Order Ref. 48 (6724282 Switch Kit) - Was 6519592 - A

6

6665606

SWITCH Ignition

7

1319451

FUSE 5

8

6514643

GASKET

9

6513469

HOLDER fuse

10

6560699

LENS

11

6558242

BRACKET

12

6513468

BULB

13

6512808

SWITCH

14

6557504

SOCKET

15

960855

1003 BULB #1003 - Use only W/ 4409 Bulb

15

898731

1156 BULB #1156 - Use only W/ 4409X Bulb

16

61D5

NUT

17

30H41

CLIP

18

10C512

BOLT Was 6553808 - A

19

6512809

KEY For 6519592

19

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

19

6693241

KEY 10 ignition - single key W/O ring

20

6514642

CAP

21

6584090

PANEL

22

6634273

GAUGE, FUEL Was 6560353 - A

23

LAMP NLA - #4409 - Order 6563740 & 898731B

23

6563740

LAMP #4409X

24

17C510

BOLT

25

85D5

NUT 5

26

6659912

VOLTMETER Was 6560354

27

6515521

SWITCH toggle

28

17C572

BOLT

29

6511320

NUT

30

85G608

SCREW

31

6664886

HOURMETER Was 6631657 - A

32

12E6

WASHER

33

12D6

NUT 10

34

17C410

BOLT 10

35

6584097

BRACKET

36

25E13

WASHER 5

37

85D4

NUT 5

38

6620642

MOTOR wiper

38

GEAR NLA - Was 6631927 - A

38

961528

PK PARTS Gasket, nut & spacer

38

6631928

SHAFT

39

6620678

WIPER BLADE

40

6620679

WIPER ARM

41

6598904

BUZZER buzzer & timer

42

6584297

WIRE ASSY.

43

6512876

ALARM back-up

44

6584256

WIRE

45

17C512

BOLT 5

46

6599781

KNOB light switch

47

6599696

SOCKET & BULB

47

895771

#161 BULB

48

6724282

SWITCH KIT Ref. 19

49

6709028

PLATE
