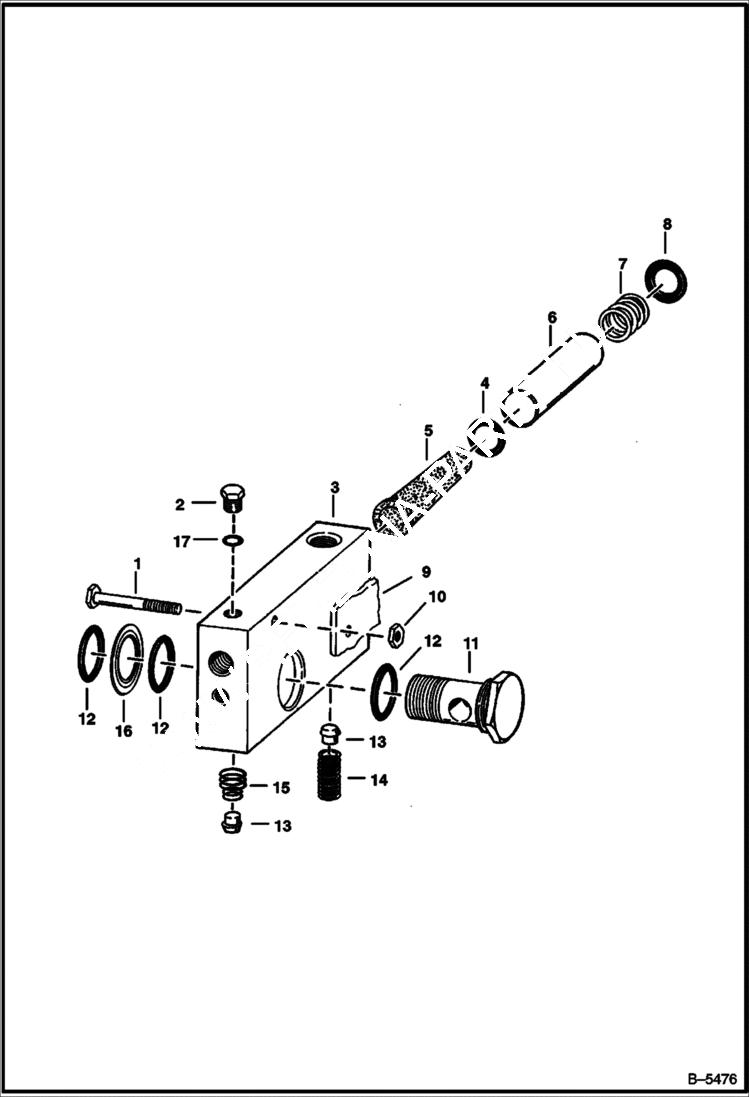

Запчасти Bobcat Articulated Loaders PORT BLOCK HYDROSTATIC SYSTEM

1

17C540

BOLT

2

40K2

PLUG Non O-Ring type

2

24K3

PLUG W/Ref. 17

3

BLOCK NLA - port - also order 24K-3 - Was 6584343 - A

4

25K40030

O RING 10

5

6563995

FILTER KIT

6

6562650

TUBE

7

6562690

SPRING

8

79K16

O RING 10

9

6584044

MOUNT

10

61D5

NUT

11

6561454

BOLT

12

25K20128

O RING 10

13

6515078

POPPET

14

6561211

SPRING

15

6559896

SPRING

16

6561453

WASHER

17

79K4

O RING 10
