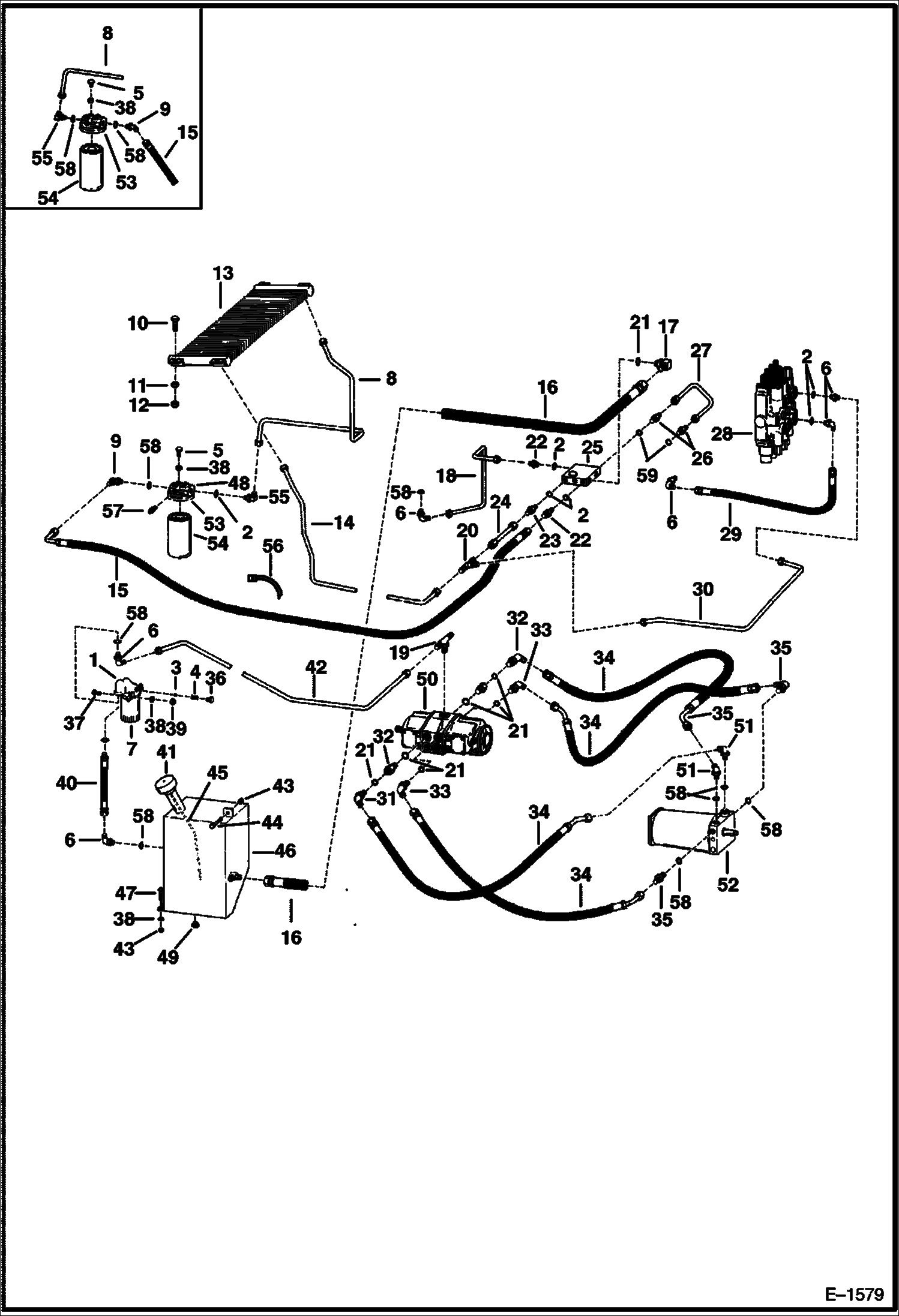

Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY (S/N 12001 & Above) HYDROSTATIC SYSTEM

1

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

2

79K12

O RING 10

3

6515078

POPPET

4

6553897

SPRING

5

17C610

BOLT

6

17K7

ELBOW

7

6515541

ELEMENT filter - 5.5''

7

6559458

ELEMENT filter - 8''

8

6584299

TUBE See BTI210

9

2324539

ELBOW See BTI210

10

10C512

BOLT Was 6553808 - A

11

774220

NUT spring

12

85D5

NUT 5

13

6598438

OIL COOLER

14

6561616

TUBE

15

6584292

HOSE See BTI210

16

6584105

HOSE

17

1324974

ELBOW

18

6561615

TUBE

19

6561477

TEE

20

10K7

TEE

21

79K16

O RING 10

22

15K7

FITTING

23

6559518

ADAPTER

24

6561624

TUBE

25

BLOCK See Illustration PORT BLOCK/ B5476 port

26

15K6

ADAPTER W/Ref. 59

27

6561613

TUBE

28

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18049 See Illustration HYDRAULIC CONTROL VALVE/ B20615

29

1306530

HYD HOSE

30

6584971

TUBE

31

18K8

FTG

32

6561478

ADAPTER

33

ELBOW NLA - Was 6513549 - A

34

6584107

HOSE

35

17K8

FITTING

36

6557476

PLUG

37

17C616

BOLT 5

38

25E17

WASHER 5

39

61D6

NUT 5

40

6584131

HOSE

41

6577785

CAP Drill hole for Dipstick - Was 6583957 - A

42

6584373

TUBE

43

85D6

NUT, 5

44

84G3716

SCREW 5

45

6583956

DIPSTICK

46

6561335

TANK hydraulic

47

17C628

BOLT

48

6599366

VALVE bypass

49

24K7

PLUG

50

PUMP See Illustration HYDROSTATIC PUMP/ B20618

51

15K8

FITTING

52

MOTOR See Illustration HYDROSTATIC MOTOR/ D1590

53

HEAD See BTI210 NLA - filter

54

6668819

FILTER, OIL HYD 10 micron - Was 6598903 - A

55

17KB1012

FITTING, HYD ELBOW See BTI210

56

6624289

STRAP, TIE

57

6599364

SWITCH pressure

57

6599365

KIT Nuts, washers & o-rings for switch

58

79K10

O RING 10

59

79K8

O RING 10
