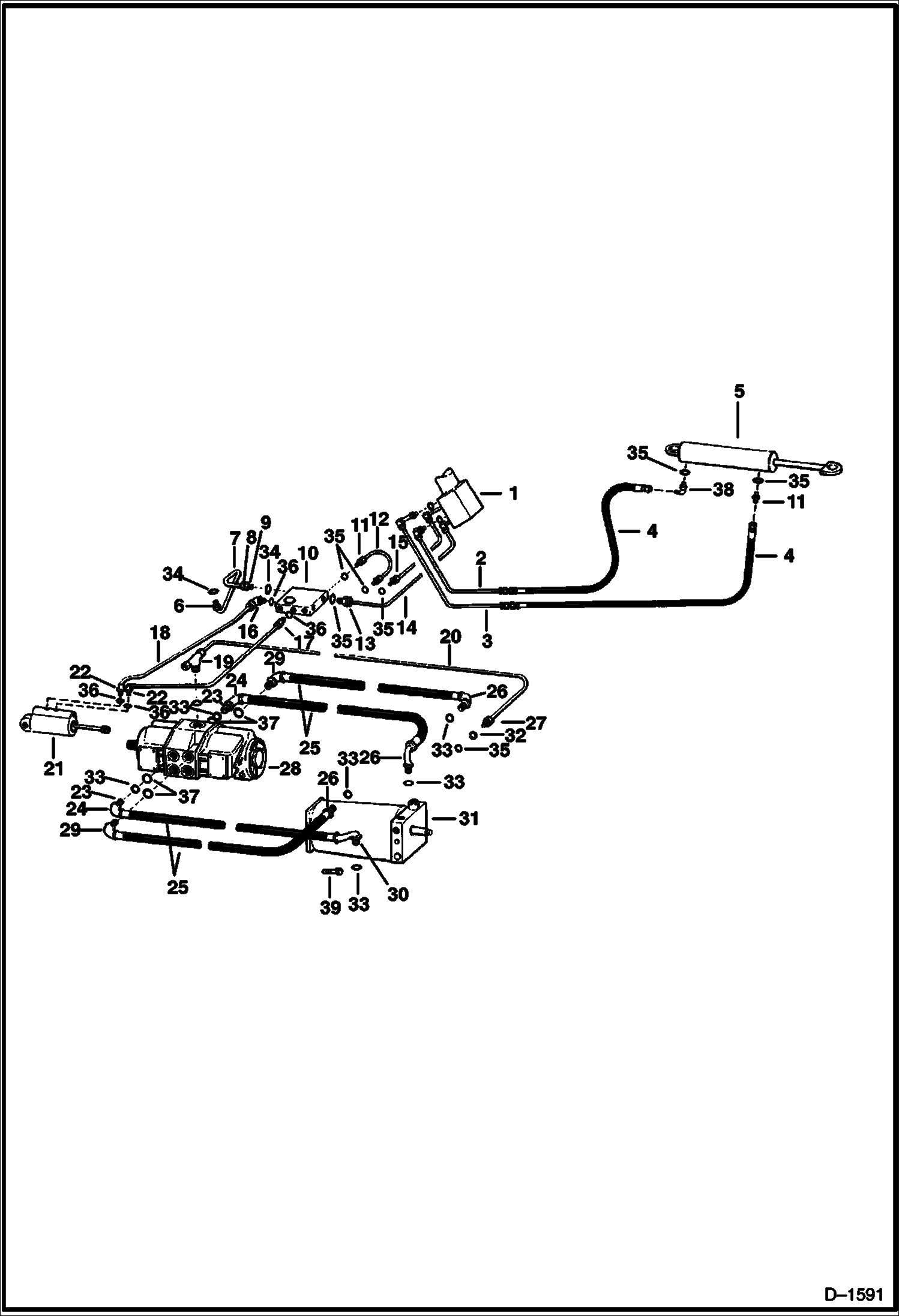

Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6561100

VALVE See Illustration STEERING CONTROL VALVE/ C2692 steering

2

6584038

TUBE

3

6584039

TUBE

4

HOSE NLA - Was 6584104 - A

5

CYLINDER See Illustration STEERING CYLINDER/ C2699A See Illustration STEERING CYLINDER/ C2699

6

17K7

ELBOW W/Ref. 34

7

6561615

TUBE

8

6555832

ORIFICE .217/.225 dia.

8

6584366

ORIFICE .201/.209 dia.

9

15K7

FITTING W/Ref. 35

10

BLOCK See Illustration PORT BLOCK/ B5476 port

11

15K6

ADAPTER W/Ref. 34

12

6561613

TUBE

13

5293649

ADAPTOR W/Ref. 34

14

6584041

TUBE

15

6584040

TUBE

16

17K3

ELBOW W/Ref. 36

17

15K3

CONNECTOR W/Ref. 36

18

1516789

HOSE

19

6561477

TEE W/Ref. 33

20

6584106

HOSE

21

SERVO See Illustration SERVO/ B20720 See Illustration SERVO/ D1587

22

18K3

ELBOW W/Ref. 36

23

6561478

ADAPTER W/Ref. 37

24

18K8

FTG W/Ref. 33

25

6584107

HOSE

26

17K8

FITTING W/Ref. 33

27

16K6

FITTING W/Ref. 34

28

PUMP See Illustration HYDROSTATIC PUMP/ B20618

29

ELBOW NLA - W/Ref. 37 - Was 6513549 - A

30

15K8

FITTING W/Ref. 33

31

MOTOR See Illustration HYDROSTATIC MOTOR/ D1590

32

6584360

SHIM .030 - Optional

33

79K12

O RING 10

34

79K10

O RING 10

35

79K8

O RING 10

36

79K4

O RING 10

37

79K16

O RING 10

38

17K6

ELBOW W/Ref. 34

39

94G820

BOLT
