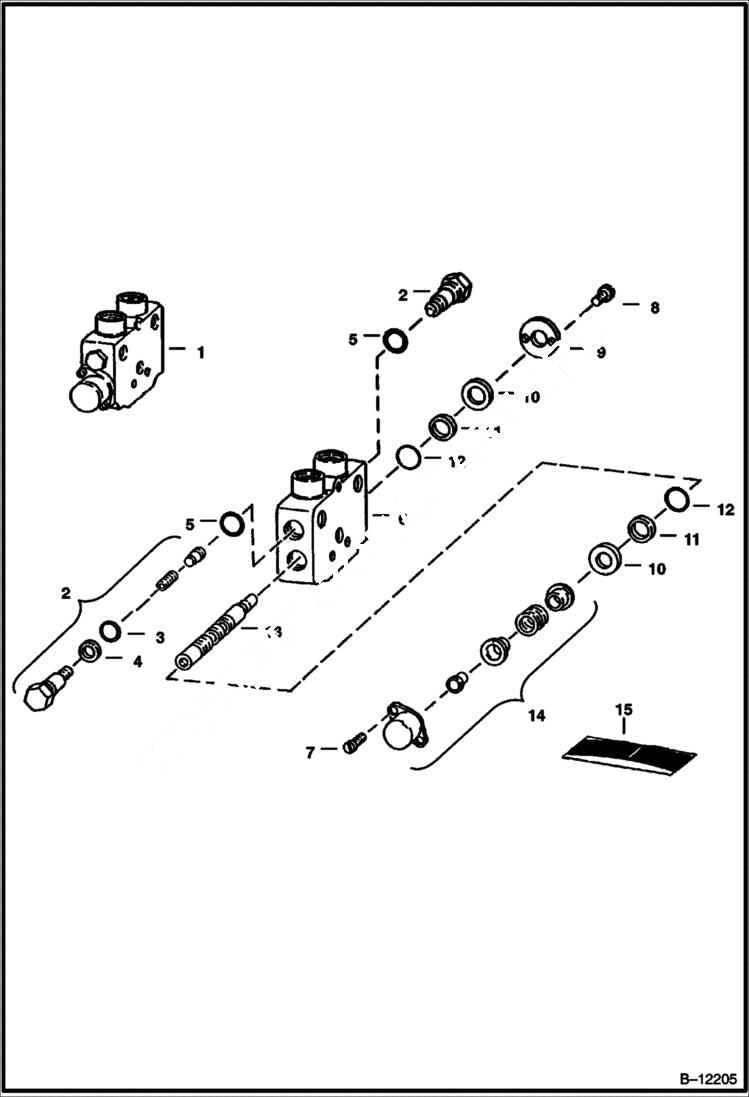

Запчасти Bobcat Articulated Loaders AUXILIARY TILT SECTION (Gresen V20) HYDRAULIC SYSTEM

1

6651328

SECTION tilt

2

6651330

RELIEF VALVE

2

6650692

RELIEF VALVE

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

HOUSING NSS

7

7030462

BOLT Was 89G414 - A

8

89G408

BOLT

9

6519941

RETAINER

10

6650693

RETAINER

11

RING NSS - back-up

12

O-RING NSS

13

SPOOL NSS

14

6647691

BONNET

15

6647694

SEAL KIT Ref. 11 & 12

15

6650696

SEAL KIT Ref. 3 & 4
