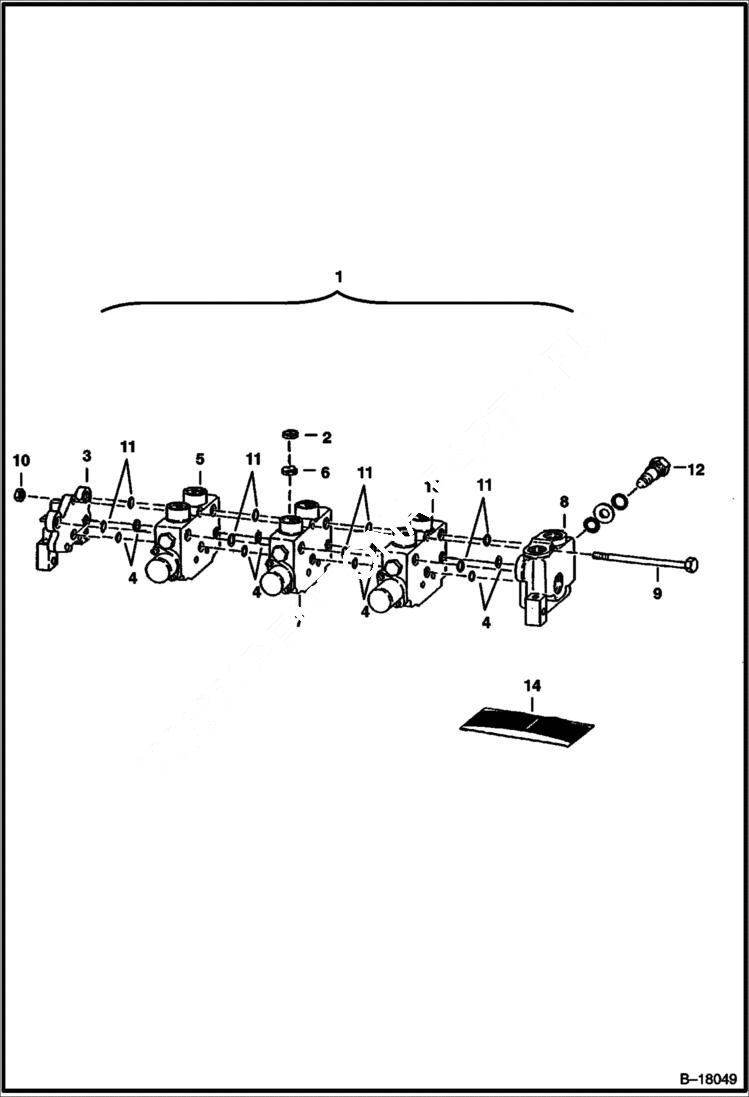

Запчасти Bobcat Articulated Loaders HYDRAULIC CONTROL VALVE (Gresen V20) HYDRAULIC SYSTEM

1

6658669

VALVE

2

6650698

RELIEF VALVE

3

6650699

COVER

4

O-RING NSS

5

6650700

SECTION See Illustration AUXILIARY SECTION/ B12213 aux.

6

6598690

SPRING

7

6659261

SECTION See Illustration LIFT SECTION/ B20617 lift

8

6651322

COVER See Illustration INLET SECTION/ B20616 inlet

9

6647706

STUD KIT W/Ref. 10

10

NUT NSS

11

O-RING NSS

12

6651331

ORIFICE .189 - (4,8mm)

13

6651328

SECTION See Illustration AUXILIARY TILT SECTION/ B12205 tilt

14

6650704

SEAL KIT
