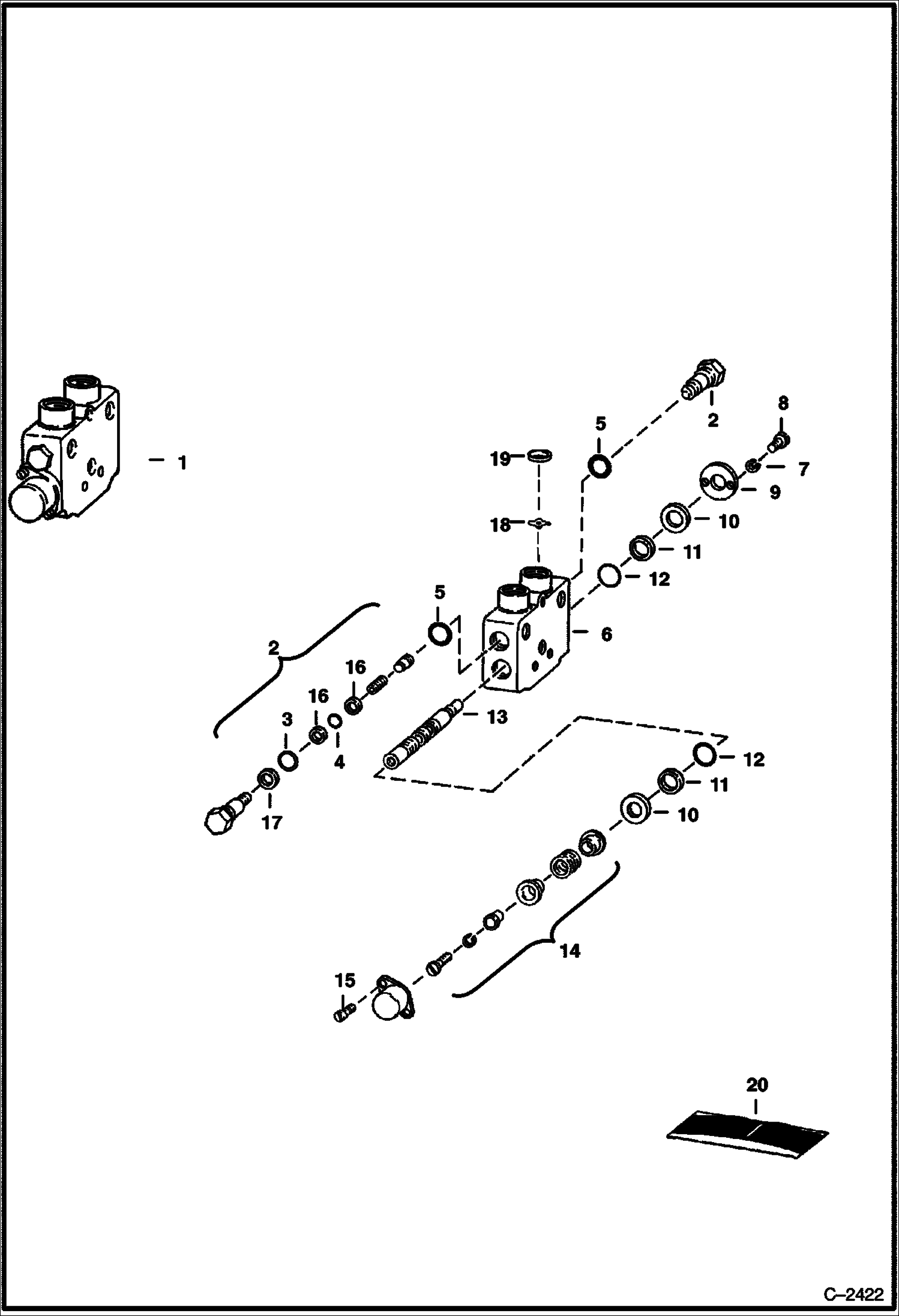

Запчасти Bobcat Articulated Loaders TILT SECTION (Gresen CS) HYDRAULIC SYSTEM

1

SECTION See BTI242 NLA - tilt - Was 6598392 - A

2

6513594

RELIEF VALVE port

2

6598680

RELIEF port

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

HOUSING NLA

7

4E4

WASHER lock

8

89G408

BOLT

9

6519941

RETAINER

10

6519747

RETAINER

11

6519748

WASHER back-up

12

O-RING NSS

13

SPOOL NLA

14

6598393

POSITIONER

15

5208677

SCREWS

16

WASHER NSS - back-up

17

WASHER NSS - back-up

18

6598845

ORIFICE .189 (4,8 mm)

19

SLEEVE NLA

20

6563973

SEAL KIT Ref. 5, 12, 16 & 17 - Was 6546439 - A
