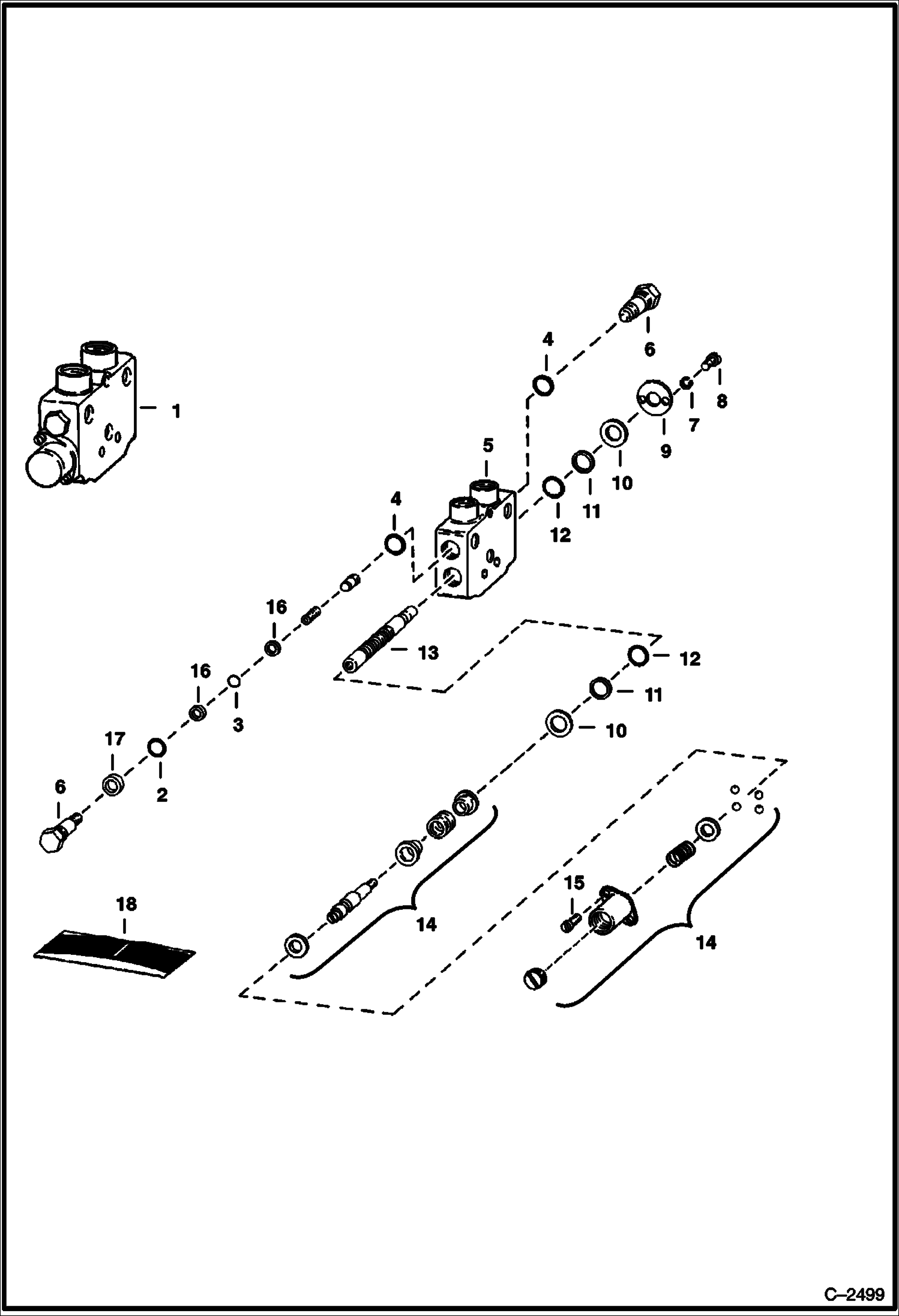

Запчасти Bobcat Articulated Loaders AUXILIARY CONTROL SECTION (Gresen CS) HYDRAULIC SYSTEM

1

SECTION NLA - auxiliary - Was 6513590 - A

2

WASHER NSS

3

O-RING NSS

4

O-RING NSS

5

HOUSING NLA

6

6519937

CHECK load

7

4E4

WASHER lock

8

89G408

BOLT Was 4G-408 - A

9

6519941

RETAINER

10

6519747

RETAINER

11

6519748

WASHER back-up

12

O-RING NSS

13

SPOOL NLA

14

6598922

POSITIONER

14

6598914

POSITIONER

15

5208677

SCREWS

16

O-RING NSS - back-up

17

WASHER NSS - back-up

18

6546439

SEAL KIT Ref. 2-4, 12, 16 & 17
