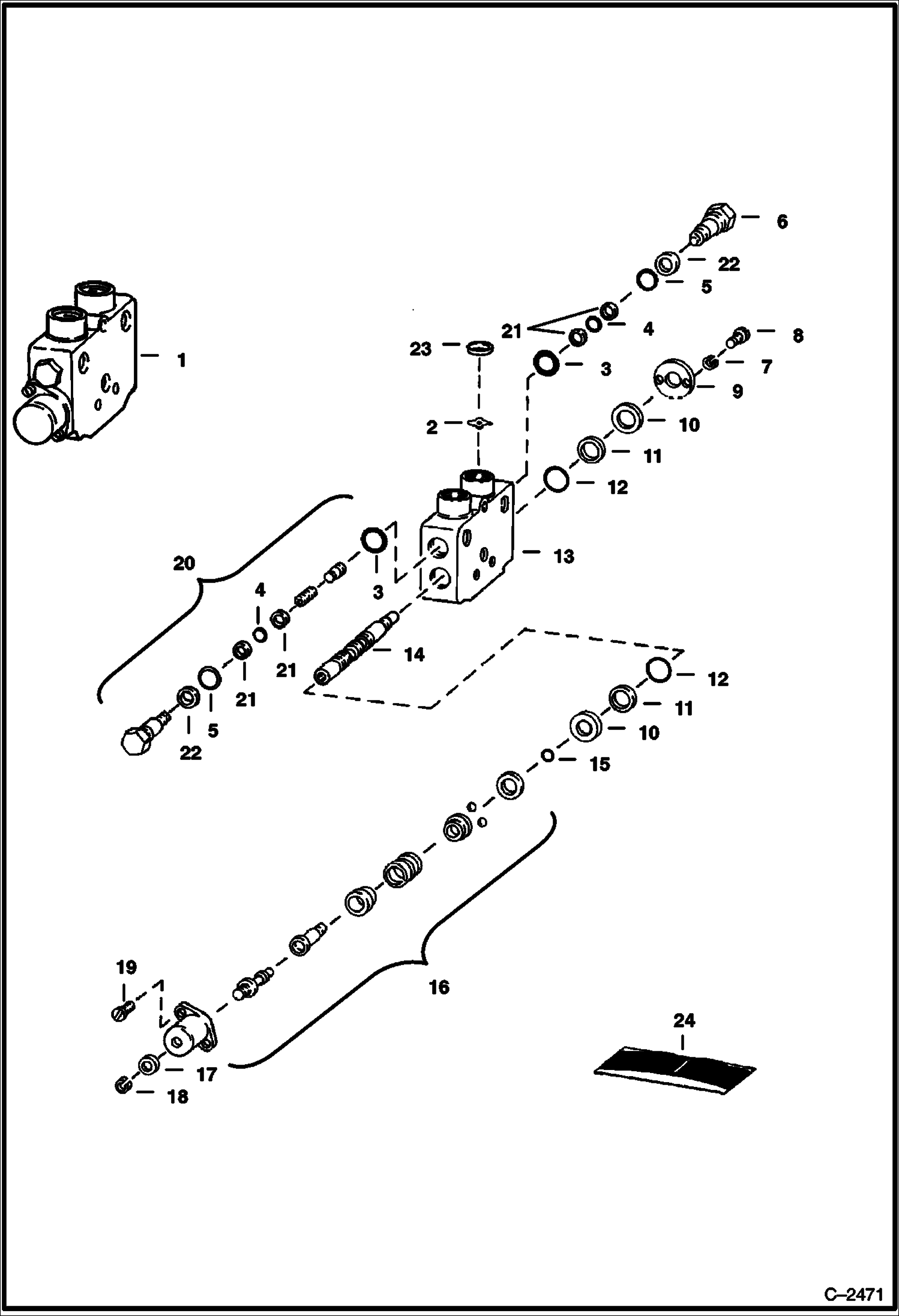

Запчасти Bobcat Articulated Loaders LIFT SECTION (Gresen CS) HYDRAULIC SYSTEM

1

SECTION See BTI242 NLA - lift - Was 6598395 - A

2

6598845

ORIFICE .189 (4,8 mm)

3

O-RING NSS

4

O-RING NSS

5

O-RING NSS

6

VALVE NLA - anti-cavitation - Was 6552546 - A

7

4E4

WASHER

8

89G408

BOLT Was 4G-408 - A

9

6519941

RETAINER

10

6519747

RETAINER

11

6519748

WASHER

12

O-RING NSS

13

HOUSING NLA

14

SPOOL NLA

15

O-RING NSS

16

6551781

POSITIONER float - W/Ref. 15 & 17-19

17

25E14

WSHR

18

6512246

RING retaining

19

5208677

SCREWS cover

20

RELIEF VALVE NLA - port relief - Was 6513594 - A

21

WASHER NSS - back-up

22

WASHER NSS - back-up

23

SLEEVE NLA

24

6563973

SEAL KIT seal - W/Ref. 3-5, 12-15, 21 & 22 - Was 6546437 - A
