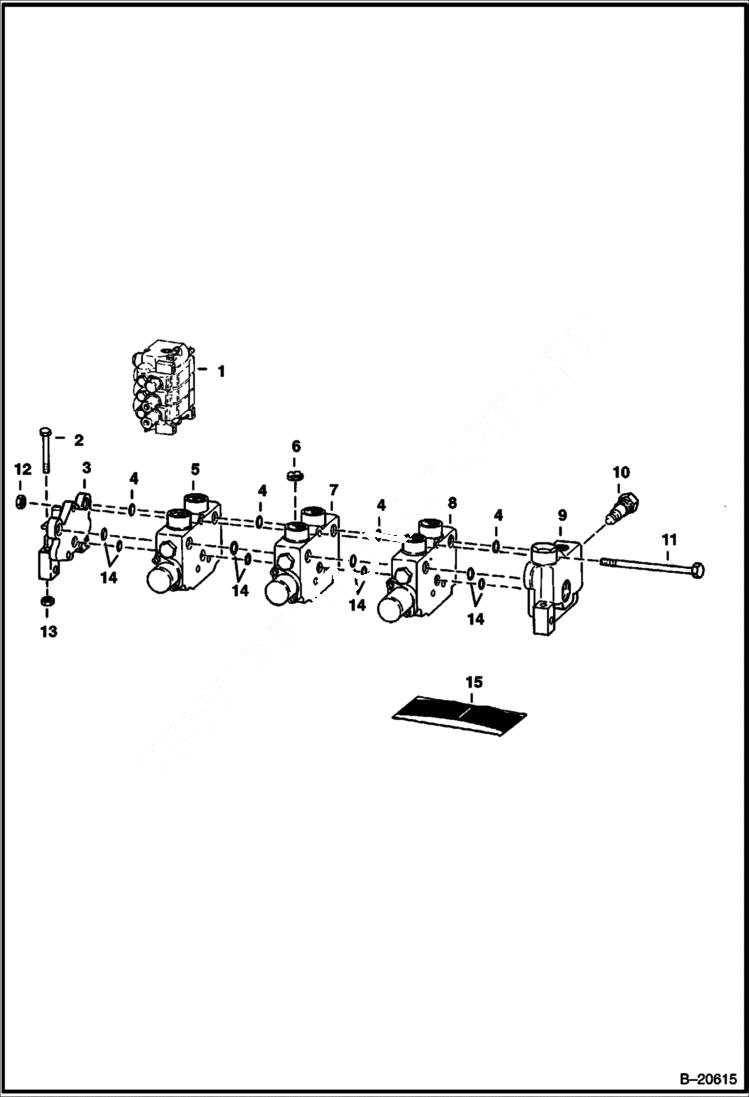

Запчасти Bobcat Articulated Loaders HYDRAULIC CONTROL VALVE (Gresen CS) HYDRAULIC SYSTEM

1

VALVE See BTI242 NLA - 3 spool - Was 6561159 - A

2

17C540

BOLT

3

COVER See BTI242 NLA - Was 6519933 - A

4

O-RING NSS

5

SECTION See Illustration AUXILIARY CONTROL SECTION/ C2499 NLA - auxiliary - Was 6513590 - A

6

6598845

ORIFICE .189 (4,8 mm)

7

SECTION See Illustration LIFT SECTION/ C2471 See BTI242 NLA - lift - Was 6598395 - A

8

SECTION See Illustration TILT SECTION/ C2422 See BTI242 NLA - tilt - Was 6598392 - A

9

6512244

END COVER See Illustration INLET SECTION/ B1541 See BTI242 inlet

10

6598391

RELIEF VALVE

11

6513592

STUD 3 Spool Valve

12

62D6

NUT 5

13

61D5

NUT

14

O-RING NSS

15

6660750

SEAL KIT 3 section - Ref. 4 & 14 - Was 6511040 - A
