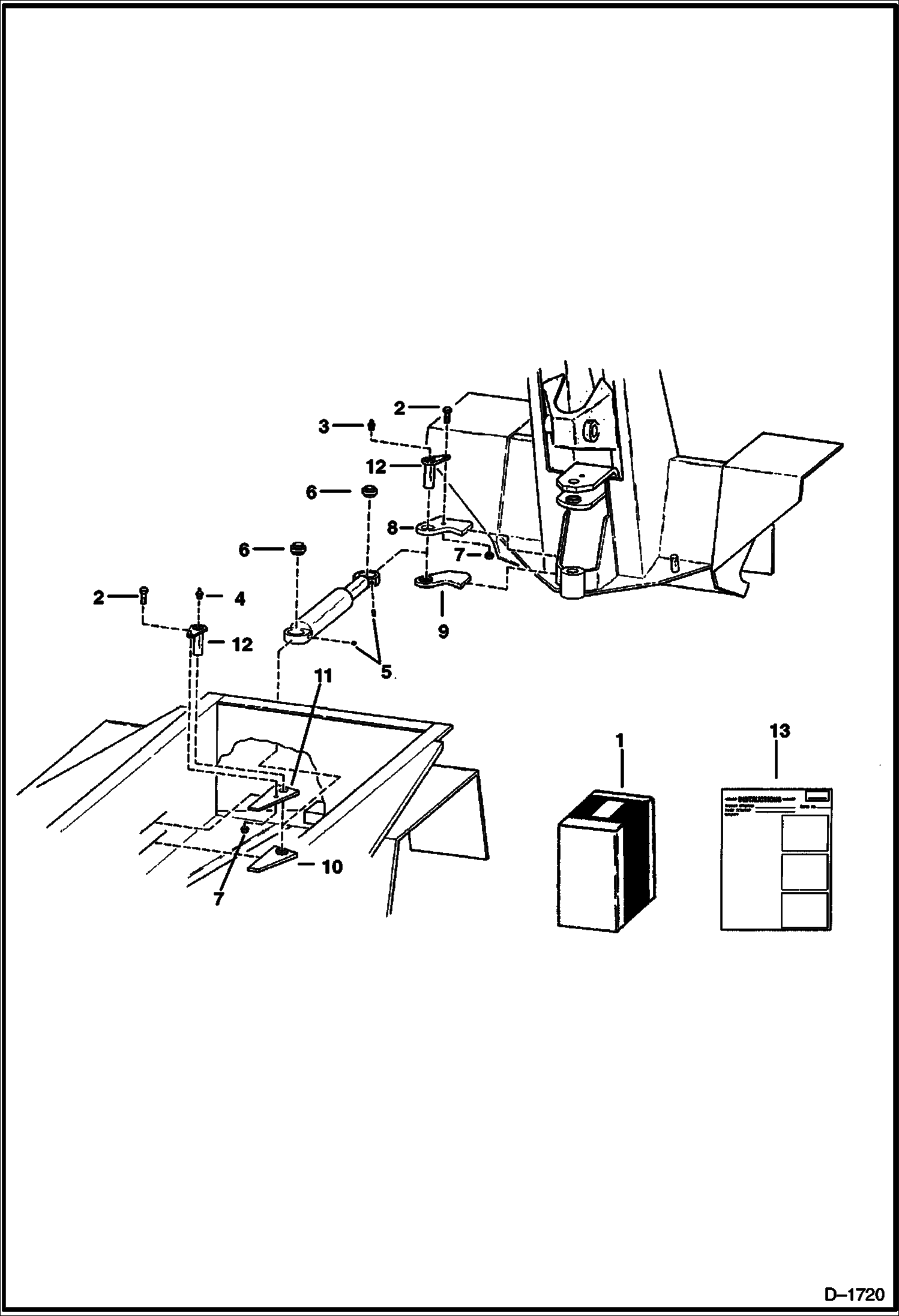

Запчасти Bobcat Articulated Loaders STEERING CYLINDER KIT ACCESSORIES & OPTIONS

1

KIT NLA - Order ref. 2-13 - Was 6584547 - A

2

17C624

BOLT 5 Was NSS - D

3

10H25

FITTING, GREASE 5 Was NSS - D

4

12H15

FITTING, GREASE 5 90 Degree - Was NSS - D

5

33G404

SET SCRW5 Was NSS - D

6

669928

BEARING Was NSS - D

7

85D6

NUT, 5 Was NSS - D

8

6584839

MOUNT Upper Front - Was NSS - D

9

6584841

MOUNT Lower Front - Was NSS - D

10

6584843

MOUNT Lower Rear - Was NSS - D

11

6584845

MOUNT Upper Rear - Was NSS - D

12

6538261

PIN ASSY. Was NSS - D

13

6566968

INSTRUCTIONS
