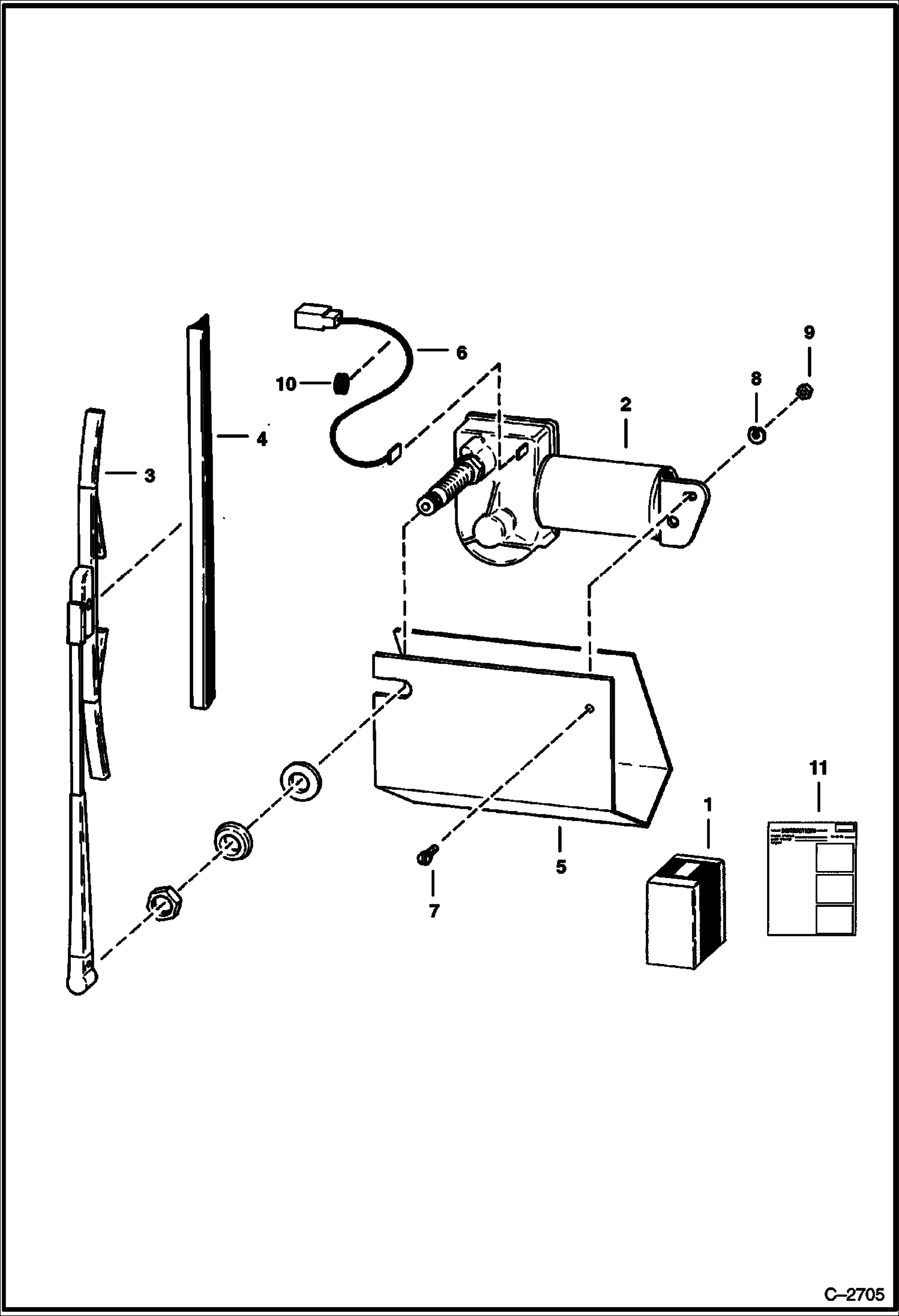

Запчасти Bobcat Articulated Loaders REAR WIPER KIT ACCESSORIES & OPTIONS

1

6584311

KIT rear wiper - Ref. 2-11

2

6620642

MOTOR

3

6620679

WIPER ARM

4

6620678

WIPER BLADE

5

6584309

SHIELD

6

6584171

WIRE ASSY.

7

85G1008

SCREW

8

17E10

WASHER

9

12D10

NUT

10

6557493

GROMMET

11

6566279

INSTRUCTIONS
