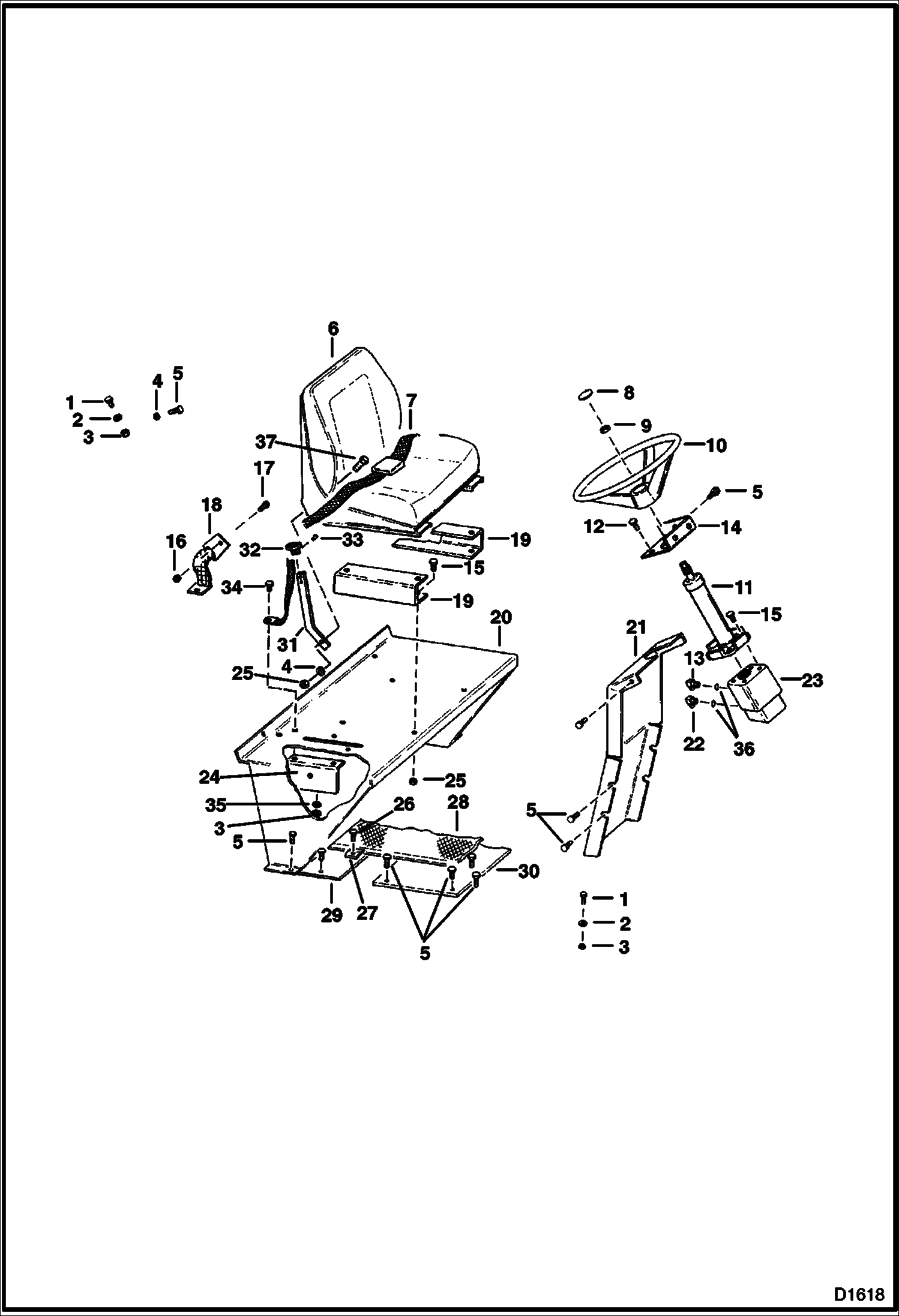

Запчасти Bobcat Articulated Loaders SEAT & STEERING CONTROL MAIN FRAME

1

17C820

BOLT

2

27E8

WASHER 10

3

85D8

NUT, 5

4

25E17

WASHER 5

5

84G3716

SCREW 5

6

SEAT NLA - Order 6669135 - Was 6563410 - A

7

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

8

6514300

CAP

9

664880

NUT

10

WHEEL NLA - steering - Was 6561101 - A

11

6583969

COLUMN steering

12

17C620

BOLT

13

6812820

ELBOW W/Ref. 36 - Was 6511914 - A

14

6583967

MOUNT

15

17C612

BOLT 5

16

61D7

NUT

17

17C716

BOLT

18

6552184

SEAT BELT tie

19

6583968

CHANNEL seat

20

6561335

TANK seat - Was 6583961 - A

21

6583963

COVER

22

17K6

ELBOW W/Ref. 36

23

6561100

VALVE See Illustration STEERING CONTROL VALVE/ C2692 steering control

24

6584011

MOUNT throttle

25

85D6

NUT, 5

26

84G3116

SCREW

27

6584126

BRACKET

28

6584877

FLOOR MAT

29

6583949

COVER rear

30

6584351

COVER front

31

GUIDE ASSY. NLA - R.H. - Order 6584583 - W/Ref. 32 & 33

31

GUIDE ASSY. NLA - L.H. - Order 6584583 - W/Ref. 32 & 33 - Bolt to seat

31

6584583

GUIDE ASSY. W/Ref. 32 & 33

32

GUIDE NLA - Order 6703703 - Was 6565355

33

1662965

RIVET

34

17C816

BOLT

35

25E21

WASHER 5

36

79K8

O RING 10

37

17C610

BOLT
