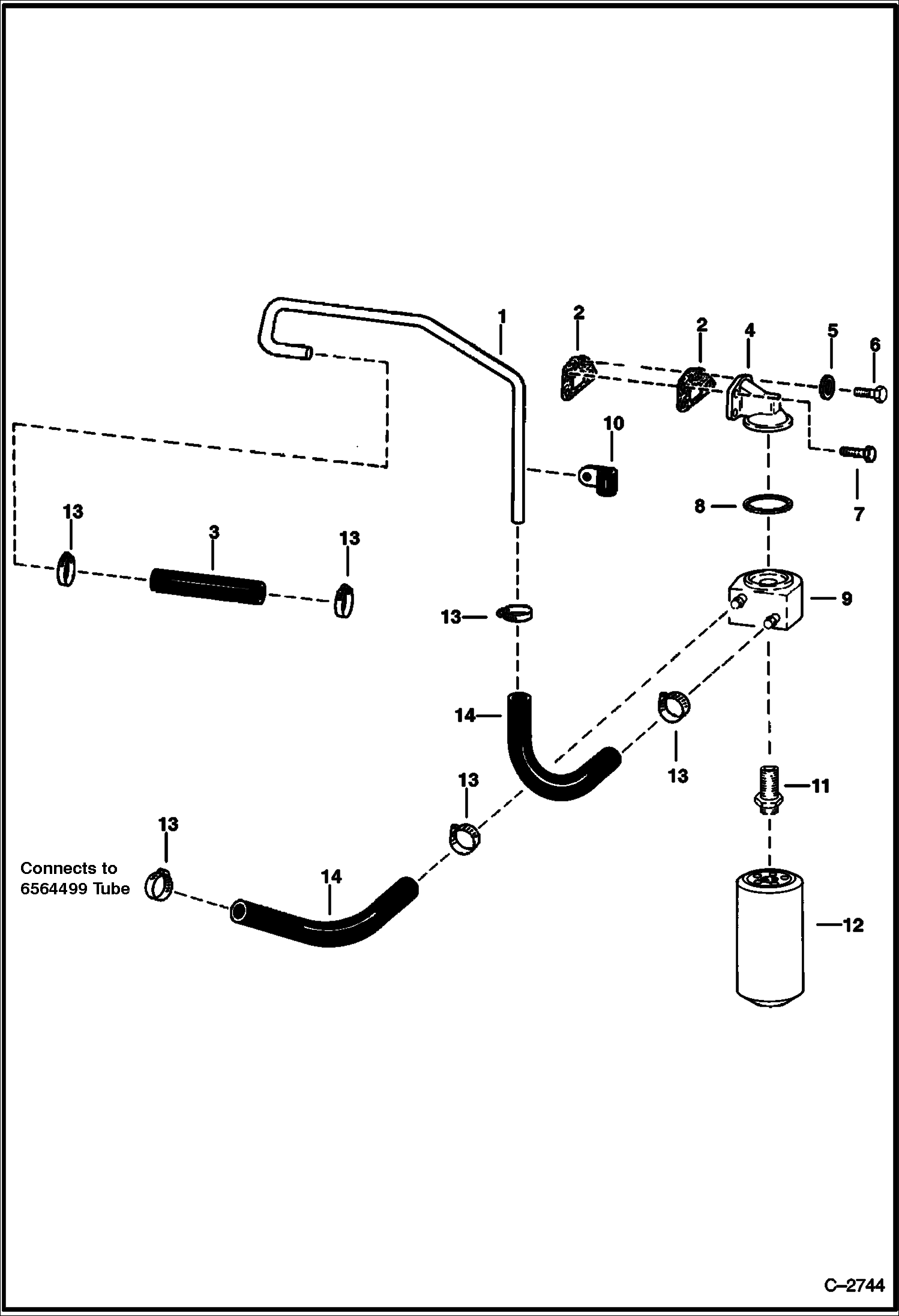

Запчасти Bobcat Articulated Loaders ENGINE OIL COOLER & FILTER POWER UNIT

1

TUBE NLA - Was 6564569 - A

2

GASKET NLA - Was 997782 - A

2

6668016

GASKET

3

HOSE NLA - Order 889269 - Was 6564615 - A

4

6514491

HEAD

5

25E19

WASHER

6

18C720

BOLT

7

18C716

BOLT

8

6651862

GASKET for 2-1/4''(57.2mm) cooler

8

962263

GASKET for 1-7/8''(47.6mm) cooler

9

COOLER NLA - 2-1/4''(57.2mm)-Order 6645850 & 6646196

9

6645850

OIL COOLER 1-7/8''(47.6mm)

10

30H34

CLAMP

11

CONNECTOR NLA - 56,6 mm (2.23'') wide cooler - Was 6660452 - A

11

6646196

ADAPTER for 1-7/8'' cooler

12

960698

OIL FILTR 12

13

1566240

CLAMP

14

6564565

HOSE
